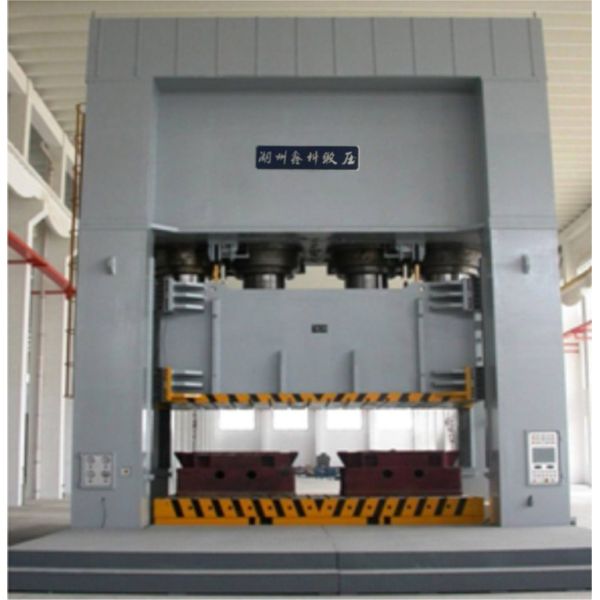

Gantry Hydraulic Press Machine With Multilayer Mold Temperature Control System
Gantry Hydraulic Press Machine With Multilayer Mold Temperature Control System
Gantry Hydraulic Press Machine With Multilayer Mold Temperature Control System
Gantry Hydraulic Press Machine With Multilayer Mold Temperature Control System
Specifications
Brand Name :
XINKE
Certification :
CE; ISO9001:2000
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD10000-1000000
Supply Ability :
10 sets per month
Delivery Time :
3 month
Packaging Details :
normal
Structure :
Frame
Drive :
Hydraulic
Control :
PLC
Applications :
Stamp automative parts
Description

Characteristics:

1. Gantry or Four-column style based on Computer Optimizing Structure Design with high precious and durability.

2. Latest Closed-loop ratio control technology with digital display, position, pressure and speed setting,

3. Adopted in Inverter Control System with simple controlling, reliable performance and also reach to special SMC forming process.

4. Intelligent Temperature Control System. The precision can reach to ±5°C and Monitoring working conditions for heating elements of hotplate

5. Industrial Touching Screen Monitor and Communication module. Production control room uniform class and monitoring production process and statistics

6. Gantry Hydraulic Press is with exhaust system and Multilayer mold temperature control system, featuring high reliability and high quality

Applications:

With the latest Frequency Conversion Control Technology, digital control the speed, pressure, position, pre-press and pressing process. The presses are will suitable for high quality production of various thermal setting friction products. Widely used on making brake pad of automobile

Technical Parameters:

Item Unit Y79-100 Y79-200 Y79-315 Y79-500 Y79-630
Nominal force kN 1000 2000 3150 5000 6300
Return force kN 160 360 450 760 650
Ejection force kN 300 400 630 630 630
Ejection stroke kN 200 250 300 300 300
Working pressure of medium MPa 25 25 25 25 25
The opening daylight mm 900 1120 1250 1500 1500
Stroke of slider mm 600 710 800 900 800
Size of worktable L.R. mm 720 930 1250 1400 1300
F.B. mm 630 900 1200 1400 900
Speed of slider Descend mm/s 120 120 160 160 120
Working mm/s 6/15 7/18 6/15 4/11 2/5
Exhausting mm/s 3-5 3-5 3-5 3-5 3-5
Return mm/s 90 100 100 70 60
Ejecting mm/s 50 90 90 95 90
Power Kw 7.5 15 22 22 15
Plunger pump YCY 25 63 80 2*63 　
Frame type 　 Four-column Four-column Four-column Four-column Straight-sided
