HY49 500T Axle Crank Metal Extrusion Press , Vertical Extrusion Press Machine
HY49 500T Axle Crank Metal Extrusion Press , Vertical Extrusion Press Machine
Specifications
Brand Name :
XINKE
Certification :
CE, ISO9001:2000
Place of Origin :
China
MOQ :
1 Unit
Price :
USD 10000-100000 Per Unit
Payment Terms :
L/C, T/T
Supply Ability :
10 Units Per Months
Delivery Time :
90-180 Working Days
Packaging Details :
Wooden case, waterproof cover
Frame :
Compact box type
Drive :
Oil Hydraulic
Feature :
Three Directional Extruding
Control :
PLC
Application :
Shafts
Description

HY49 500T Hydraulic Axle Crank Cold Extruding Press

Description:

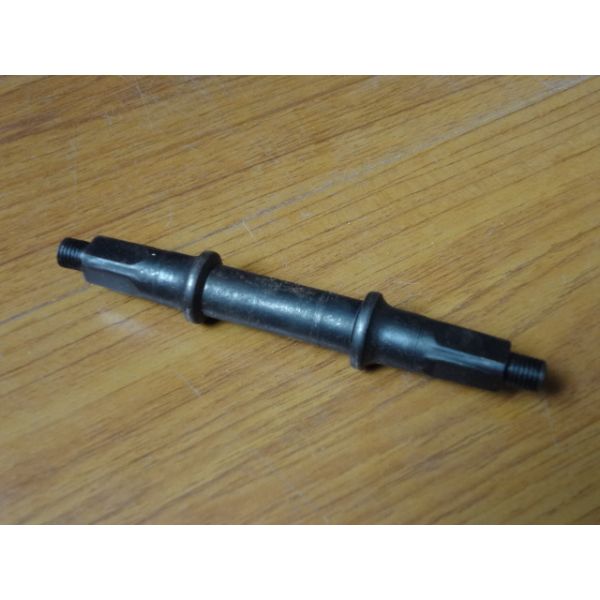

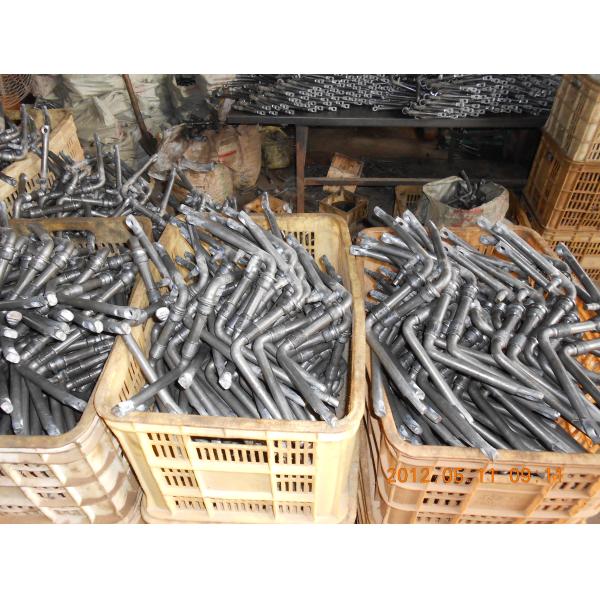

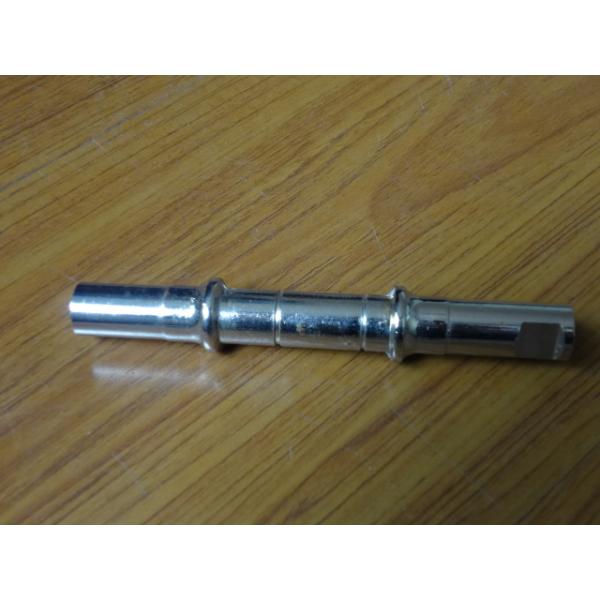

It is a compact box type frame, three-directional extruding press specialized in producing shafts for bicycle, and other shafts. The main cylinder is for mould locking, another two cylinders are respectively on two sides for extruding process. We provide a completion production solution including feeding ingot, extruding, ejecting.

Main cylinders and side cylinders are equipped with speed-increasing cylinders for speeding up approach speed and return speed. The oil tank and strong current cabinet is on the top of the press suitable for quick liquid-filling

Mitsubishi PLC is installed in the weak current cabinet.
All travel switches are proximity switches which ensures accurate positioning.

Technical Data:

Item 　 HY49-500
Nominal force kN 2000
Nominal force of lateral cylinder kN 1500*2
Stroke of slider mm 150
Stroke of lateral cylinder mm 300
Working pressure of medium Main cylinder Mpa 3-17.6
Lateral cylinder Mpa 3/16
Speed of main cylinder Descend mm/s 230
Pressurization mm/s 23-49
Return mm/s 300
Speed of lateral cylinder Forward mm/s 200
Pressurization mm/s 14-32
Withdraw mm/s 220
Open daylight Vertical mm 580
Horizontal mm 1220
Worktable size L.R. mm 500
F.B. mm 355
Motor power kW 55
Overall size of machine Height above the floor mm 4170
L.R. mm 6000
F.B. mm 2450
