High Precision Hydraulic Extrusion Presss 800 Ton For Automotive Parts
High Precision Hydraulic Extrusion Presss 800 Ton For Automotive Parts
Specifications
Brand Name :
XINKE
Certification :
CE, ISO9001:2000
Place of Origin :
China
MOQ :
1 Unit
Price :
USD 50000-1000000 Per Unit
Payment Terms :
L/C, T/T
Delivery Time :
90-180 Working Days
Packaging Details :
Wooden case, waterproof cover
Frame :
Straight Sided
Drive :
Oil Hydraulic
Control :
PLC
Application :
Metal Extruding
Description

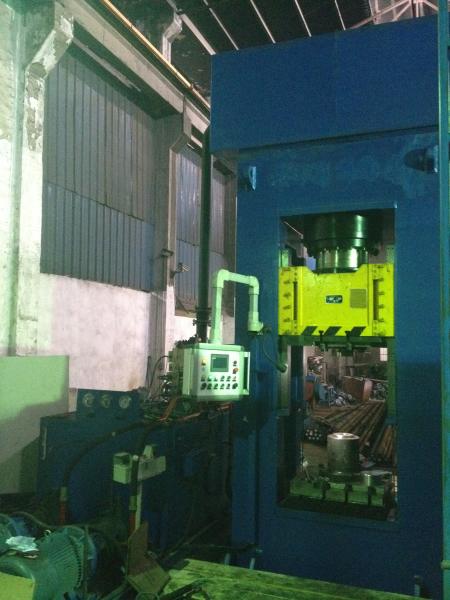

HY61 800T Hydraulic Bearing Extruding Press For Automotive Parts

Features:

  1. Finite element analyzed straight sided frame, high rigidity and precision
  2. Integrated cartridge valve is adopted to ensure tiny hydraulic impact
  3. Individual electrical & electronic control system with Mitsubishi PLC
  4. Operation mode: Manual, automatic
  5. Stroke, working force can be preset. Suitable for precision extruding production of shafts, gears
  6. 8-facet guiding, high resistance to unbalanced loading
  7. High strokes of working speed for high working efficiency

Application:

Suitable for the process of cold extruding and hot extruding (equipped with ingot heating device).

Technical Data:

Item 　 HY61-800
Nominal force kN 8000
Return force kN 750
Ejecting force kN 1000
Pressure of medium Mpa 25
Stroke of slider mm 500
Ejecting stroke mm 200
the opening daylight mm 850
Size of worktable
(L.R. x F.B.)		 mm×mm 860x920
Speed of slider Descend mm/s 340
Working mm/s 10-22
Return mm/s 230
Speed of ejecting Ejecting mm/s 200
Return mm/s 310
Motor power kW 74
Machine weight t 28
