40T Hydraulic Extrusion Press Aluminium Die Casting Machine Electric Power Saving
40T Hydraulic Extrusion Press Aluminium Die Casting Machine Electric Power Saving
Specifications
Brand Name :
XINKE
Certification :
CE, ISO9001:2000
Place of Origin :
China
MOQ :
1 Unit
Price :
USD 10000-200000 Per Unit
Payment Terms :
L/C, T/T
Supply Ability :
10 Units Per Months
Delivery Time :
90-180 Working Days
Packaging Details :
Wooden case, waterproof cover
Frame :
Straight Sided
Drive :
Oil Hydraulic
Control :
PLC
Application :
Rotor of Motors
Description

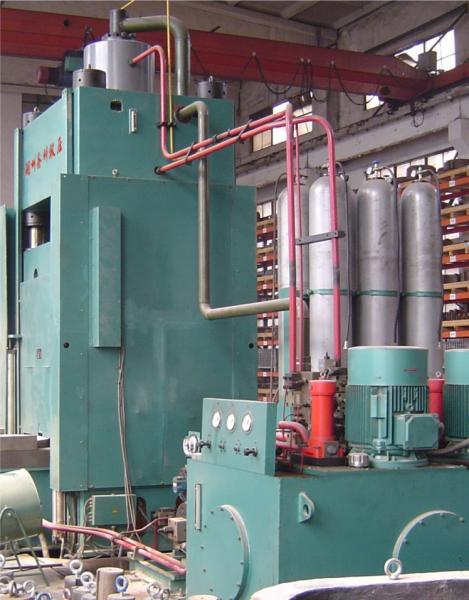

HY13 40T Hydraulic Press for Aluminum Die Casting

Features:

  1. Operation mode: Manual, semi-automatic, automatic
  2. PLC control
  3. High reliability, easy operation, electric power saving

Application:

Suitable for the process of rotors of motors

Technical Data:

Item Unit HY13-40
Range of Motor Rotor die casting 　 Micro-motor
Mould Clamping Force KN 400
Ejecting force KN 100
Pressurization force KN /
Cutting force KN /
Working pressure of medium Mpa 25
Stroke of slider mm 320
Injection piston stroke mm 150
Opening daylight kg 520
Aluminum injection capacity kg /
Speed of slider Descend mm/s 65
Working mm/s 10
Return mm/s 105
Injection speed Slow working mm/s 155
Quick working mm/s 600
Return mm/s 405
Size of worktable L.R. mm 460
F.B. mm 400
Motor power Kw 5.5
Overall size of machine L.R. mm 1750
F.B. mm 1600
Height above the floor mm 2480
Machine weight kg 2500

40T Hydraulic Extrusion Press Aluminium Die Casting Machine Electric Power Saving

40T Hydraulic Extrusion Press Aluminium Die Casting Machine Electric Power Saving

40T Hydraulic Extrusion Press Aluminium Die Casting Machine Electric Power Saving
