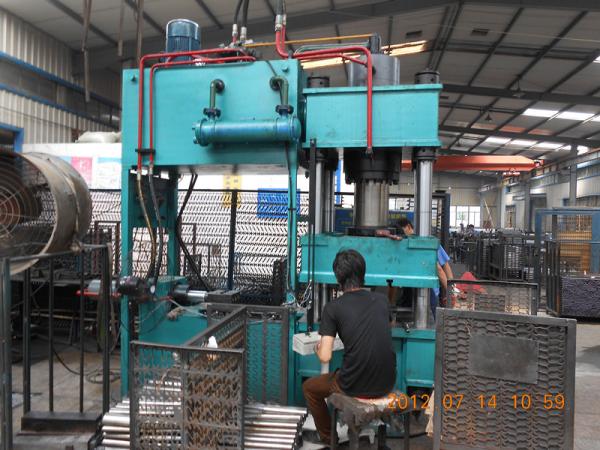

Durable Hydraulic Metal Press Machine , Mechanical Hydraulic Press 200 Ton
Durable Hydraulic Metal Press Machine , Mechanical Hydraulic Press 200 Ton
Specifications
Brand Name :
XINKE
Certification :
CE, ISO9001:2000
Place of Origin :
China
MOQ :
1 Unit
Price :
USD 50000-1000000 Per Unit
Payment Terms :
L/C, T/T
Supply Ability :
8 Units Per Months
Delivery Time :
90-180 Working Days
Packaging Details :
Wooden case, waterproof cover
Frame :
Four Columns
Drive :
Oil Hydraulic
Control :
PLC
Application :
Pipe Fittings, Tube Fittings, Automotive Exhaust
Feature :
Multi-directional forming
Description

YST 100T Hydraulic Tee Fitting Forming Press

Features:

  1. Finite element analyzed straight sided frame and four columns frame, high rigidity and precision
  2. Latest electro-hydraulic proportional control technology. Slider position, pressure, working force, working speed can be preset.
  3. Mitsubishi PLC, touch screen
  4. Operation mode: Manual, automation
  5. For 90 degree elbows, 135 degree elbows, side cylinders are used
  6. Light curtain safety protection device
  7. Ultrahigh pressure system is used

Application:

Suitable for the process of various type of carbon steel or stainless steel pipe & tube fittings, such as tees, reducers, elbows.

Technical Data:

Item Unit YST-200
Nominal force kN 2000
Force of lateral cylinder kN 1000*3
Working pressure of medium Mpa 25
The opening daylight mm 1120
Stroke of slider mm 5/14
Stroke of lateral cylinder mm 200
Worktable height above the floor mm 550
Distance between left lateral cylinder and right lateral cylinder mm 1000
Distance between back lateral cylinder and worktable center mm 500
Lateral cylinder height above worktable mm 220
Speed of slider Descend mm/s 120
Working mm/s 12/24
Return mm/s 150
Speed of two lateral cylinder mm/s 14-24
Motor power Kw 15.5
Overall size of machine F.B. mm 2200
L.R. mm 4800
Height above the floor mm 5015
Frame type 　 Four-Column
