Tube Tee Fitting Hydraulic Forming Press Manual / Automation Operation Mode
Tube Tee Fitting Hydraulic Forming Press Manual / Automation Operation Mode
Specifications
Brand Name :
XINKE
Certification :
CE, ISO9001:2000
Place of Origin :
China
MOQ :
1 Unit
Price :
USD 50000-1000000 Per Unit
Payment Terms :
L/C, T/T
Supply Ability :
8 Units Per Months
Delivery Time :
90-180 Working Days
Packaging Details :
Wooden case, waterproof cover
Frame :
Four Columns
Drive :
Oil Hydraulic
Control :
PLC
Application :
Pipe Fittings, Tube Fittings, Automotive Exhaust
Feature :
Multi-directional forming
Description

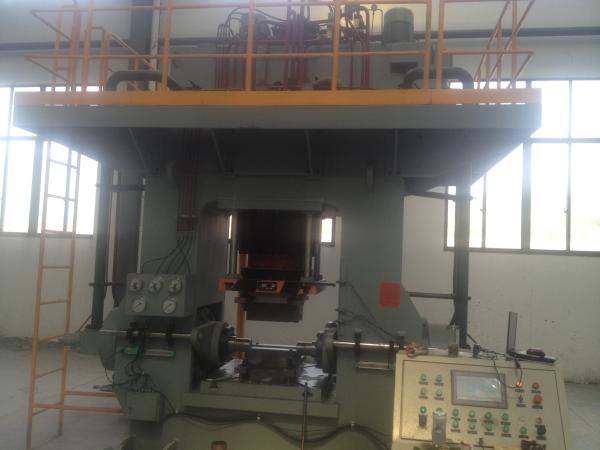

YST 315T Hydraulic Tube Tee Fitting Forming Press

Features:

  1. Finite element analyzed straight sided frame and four columns frame, high rigidity and precision
  2. Latest electro-hydraulic proportional control technology. Slider position, pressure, working force, working speed can be preset.
  3. Mitsubishi PLC, touch screen
  4. Operation mode: Manual, automation
  5. For 90 degree elbows, 135 degree elbows, side cylinders are used
  6. Light curtain safety protection device
  7. Ultrahigh pressure system is used

Application:

Suitable for the process of various type of carbon steel or stainless steel pipe & tube fittings, such as tees, reducers, elbows.

Technical Data:

Item Unit YST-315
Nominal force kN 3150
Force of lateral cylinder kN 2000*3
Working pressure of medium Mpa 25
The opening daylight mm 1250
Stroke of slider mm 8/22
Stroke of lateral cylinder mm 200
Worktable height above the floor mm 650
Distance between left lateral cylinder and right lateral cylinder mm 1120
Distance between back lateral cylinder and worktable center mm 450
Lateral cylinder height above worktable mm 320
Speed of slider Descend mm/s 80
Working mm/s 1/10
Return mm/s 60
Speed of two lateral cylinder mm/s 8/16
Motor power Kw 22
Overall size of machine F.B. mm 2535
L.R. mm 5355
Height above the floor mm 4312/4127
Frame type 　 Four-Column
