High Strength Automotive Parts Hydraulic Forming Press 1500 Ton Staight Sided
High Strength Automotive Parts Hydraulic Forming Press 1500 Ton Staight Sided
Specifications
Brand Name :
XINKE
Certification :
CE, ISO9001:2000
Place of Origin :
China
MOQ :
1 Unit
Price :
USD 50000-1000000 Per Unit
Payment Terms :
L/C, T/T
Supply Ability :
8 Units Per Months
Delivery Time :
90-180 Working Days
Packaging Details :
Wooden case, waterproof cover
Frame :
Staight sided
Drive :
Oil Hydraulic
Control :
PLC
Application :
Pipe Fittings, Tube Fittings, Automotive Exhaust
Feature :
Multi-directional forming
Description

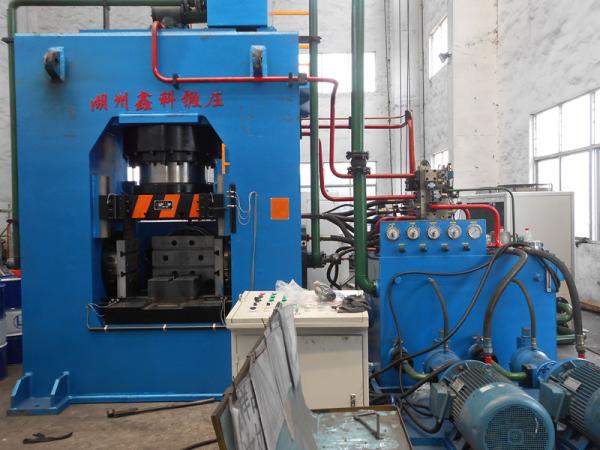

YST 1500T Hydraulic Automotive Parts Forming Press

Features:

  1. Finite element analyzed straight sided frame and four columns frame, high rigidity and precision
  2. Latest electro-hydraulic proportional control technology. Slider position, pressure, working force, working speed can be preset.
  3. Mitsubishi PLC, touch screen
  4. Operation mode: Manual, automation
  5. For 90 degree elbows, 135 degree elbows, side cylinders are used
  6. Light curtain safety protection device
  7. Ultrahigh pressure system is used

Application:

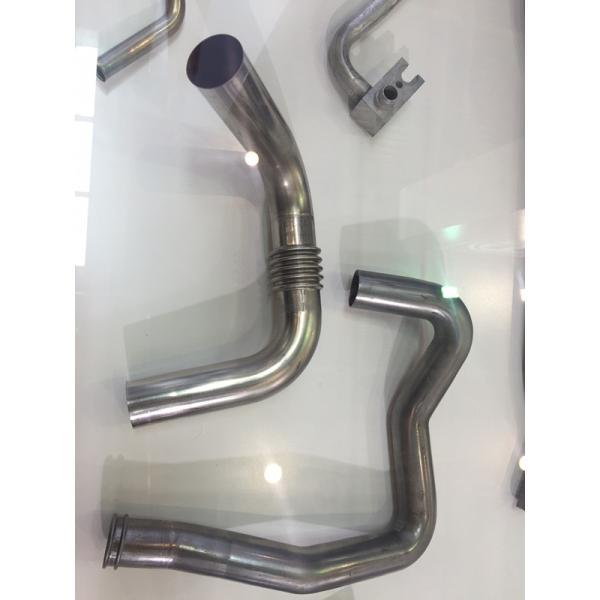

Suitable for the process of various type of carbon steel or stainless steel pipe & tube fittings, such as tees, reducers, elbows.

Technical Data:

Item Unit YST-1500
Nominal force kN 15000
Force of lateral cylinder kN 12500*2
Working pressure of medium Mpa 25
The opening daylight mm 1800
Stroke of slider mm 800
Stroke of lateral cylinder mm 400
Worktable height above the floor mm 1550
Distance between left lateral cylinder and right lateral cylinder mm 2000
Lateral cylinder height above worktable mm 500
Speed of slider Descend mm/s 100
Working mm/s 1/6
Return mm/s 80
Speed of two lateral cylinder mm/s 3/5
Motor power Kw 143.5
Overall size of machine F.B. mm 2000
L.R. mm 4800
Height above the floor mm 3520
Frame type 　 Straight sided
