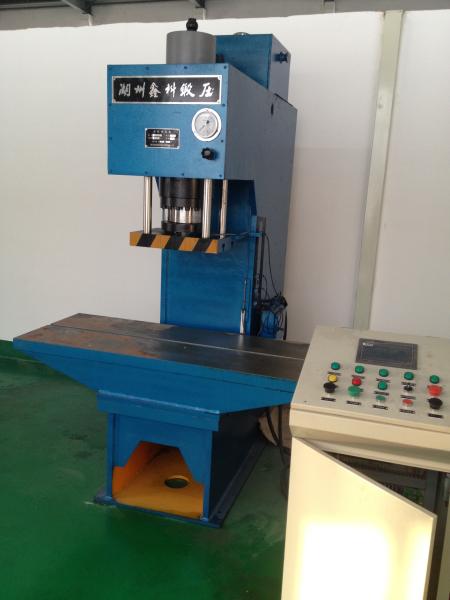

Fully Automatic C Frame Hydraulic Press 10 Ton Hydraulic Press For Fitting
Fully Automatic C Frame Hydraulic Press 10 Ton Hydraulic Press For Fitting
Specifications
Brand Name :
XINKE
Certification :
CE, ISO9001:2000
Place of Origin :
China
MOQ :
1 Unit
Price :
USD 5000-10000 Per Unit
Payment Terms :
L/C, T/T
Delivery Time :
90-180 Working Days
Packaging Details :
Wooden case, waterproof cover
Frame :
C-Type Frame
Drive :
Oil Hydraulic
Control :
PLC
Feature :
High Accuracy
Application :
Motors
Description

It is C type frame hydraulic press specialized in the leveling and press fitting of shafts, profiled parts, sleeve parts. It is also used for bending, stamping, drawing of metal sheet.

Operation mode: Manual, automatic

Application:

Widely applied to the industries of machine tools, combustion engines, textile machinery, shafts, bearings, and motors.

Technical Data:

Item Unit Y41-10
Nominal force kN 100
Working pressure of medium MPa 16
Stroke of slider mm 400
Throat depth mm 250
Opening daylight Leveling mm 460
Press fitting mm 630
Worktable size L.R. Leveling mm 1000
Press fitting mm 460
F.B. mm 380
Worktable height above the floor Leveling mm 800
Press fitting mm 710
Blanking hole size mm 100
Speed of slider Descend mm/s 63
Return mm/s 150
Overall size of machine F.B. mm 1100
L.R. mm 1000/460
Height above the floor mm 2156
Motor power kW 2.2
Machine weight t 1.3
