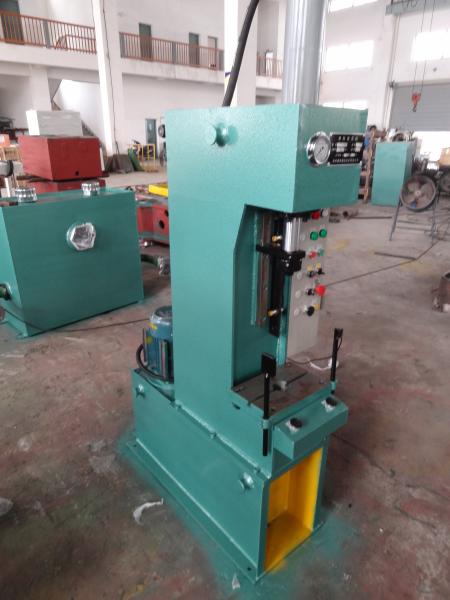

Button Operation 2.5 Ton C Frame Hydraulic Press Machine With Guiding Device For Slider
Button Operation 2.5 Ton C Frame Hydraulic Press Machine With Guiding Device For Slider
Specifications
Brand Name :
XINKE
Certification :
CE, ISO9001:2000
Place of Origin :
China
MOQ :
1 Unit
Price :
USD 10000-100000 Per Unit
Payment Terms :
L/C, T/T
Supply Ability :
15 Units Per Months
Delivery Time :
90-180 Working Days
Packaging Details :
Wooden case, waterproof cover
Frame :
C Type
Drive :
Oil Hydraulic
Control :
PLC
Feature :
Accurate stroke
Application :
Drawing
Description

Y30 C-Frame Hydraulic Press

Features:

  1. Optimized by computer design, single column frame.
  2. Guiding device for slider
  3. Individual hydraulic and electrical control system, button operation
  4. Pressure maintaining, automatic return
  5. Operation mode: manual and automatic
  6. Working force and stroke is adjustable

Application:

Small force presses are suitable for the process of drawing, stamping, punching of sheet metals

Large force presses are suitable for the process of bending, forming of sheet metals.

Straightening and press fitting of shaft, camshaft, crankshaft

Plastic material molding

Accessories for option:

Slider speed adjustment device

Displacement sensor

Light curtain safety device

Lighting device for working position

PLC control system

Technical Data:

Item Unit Y30-2.5
Nominal force kN 25
Ejector force kN 　
Working press of medium MPa 8
Ejection stroke mm 　
Slider stroke mm 125
Throat depth mm 110
Opening daylight mm 210
Size of worktable L.R. mm 300
F.B. mm 200
Blanking hole size mm φ80
Worktable height above the floor mm 900
Slider speed Descend mm/s 38
Working mm/s 38
Return mm/s 100
Overall size of machine L.R. mm 1105
F.B. mm 555
Height above the floor mm 1732
Ejecting speed Ejecting mm/s 　
Return mm/s 　
Motor power kW 1.5
Machine weight t 0.35

Button Operation 2.5 Ton C Frame Hydraulic Press Machine With Guiding Device For Slider

Button Operation 2.5 Ton C Frame Hydraulic Press Machine With Guiding Device For Slider

Button Operation 2.5 Ton C Frame Hydraulic Press Machine With Guiding Device For Slider
