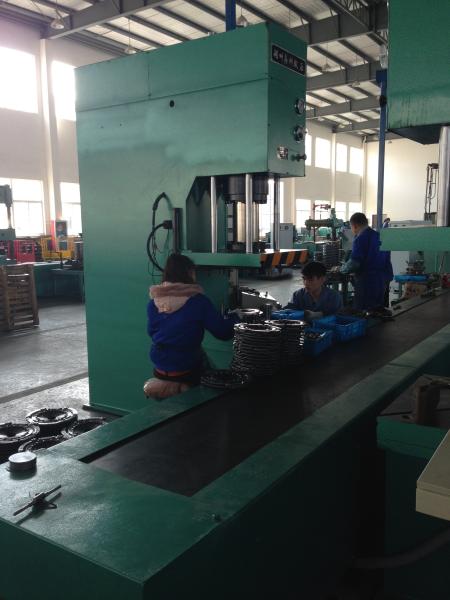

Manual / Automatic 100 Ton Hydraulic C Press , Single Column Hydraulic Press Machine
Manual / Automatic 100 Ton Hydraulic C Press , Single Column Hydraulic Press Machine
Specifications
Brand Name :
XINKE
Certification :
CE, ISO9001:2000
Place of Origin :
China
MOQ :
1 Unit
Price :
USD 10000-100000 Per Unit
Payment Terms :
L/C, T/T
Supply Ability :
15 Units Per Months
Delivery Time :
90-180 Working Days
Packaging Details :
Wooden case, waterproof cover
Frame :
C Type
Drive :
Oil Hydraulic
Control :
PLC
Feature :
Accurate stroke
Application :
Drawing
Description

100T C-Frame Hydraulic Deep Drawing Press

Features:

  1. Optimized by computer design, single column frame.
  2. Guiding device for slider
  3. Individual hydraulic and electrical control system, button operation
  4. Pressure maintaining, automatic return
  5. Operation mode: manual and automatic
  6. Working force and stroke is adjustable

Application:

Small force presses are suitable for the process of drawing, stamping, punching of sheet metals

Large force presses are suitable for the process of bending, forming of sheet metals.

Straightening and press fitting of shaft, camshaft, crankshaft

Plastic material molding

Accessories for option:

Slider speed adjustment device

Displacement sensor

Light curtain safety device

Lighting device for working position

PLC control system

Technical Data:

Item Unit Y30-100
Nominal force kN 1000
Ejector force kN 200
Working press of medium MPa 25
Ejection stroke mm 160
Slider stroke mm 450
Throat depth mm 320
Opening daylight mm 710
Size of worktable L.R. mm 710
F.B. mm 630
Blanking hole size mm φ180
Worktable height above the floor mm 820
Slider speed Descend mm/s 110
Working mm/s 8
Return mm/s 90
Overall size of machine L.R. mm 1900
F.B. mm 862
Height above the floor mm 2705
Ejecting speed Ejecting mm/s 40
Return mm/s 160
Motor power kW 7.5
Machine weight t 3.4

Manual / Automatic 100 Ton Hydraulic C Press , Single Column Hydraulic Press Machine
