PLC Control 315T Shipbuilding C Frame Hydraulic Press Machine Power Saving
PLC Control 315T Shipbuilding C Frame Hydraulic Press Machine Power Saving
Specifications
Brand Name :
XINKE
Certification :
CE, ISO9001:2000
Place of Origin :
China
MOQ :
1 Unit
Price :
USD 10000-100000 Per Unit
Payment Terms :
L/C, T/T
Supply Ability :
15 Units Per Months
Delivery Time :
90-180 Working Days
Packaging Details :
Wooden case, waterproof cover
Frame :
C Type
Drive :
Oil Hydraulic
Control :
PLC
Feature :
Accurate stroke
Application :
Drawing
Description

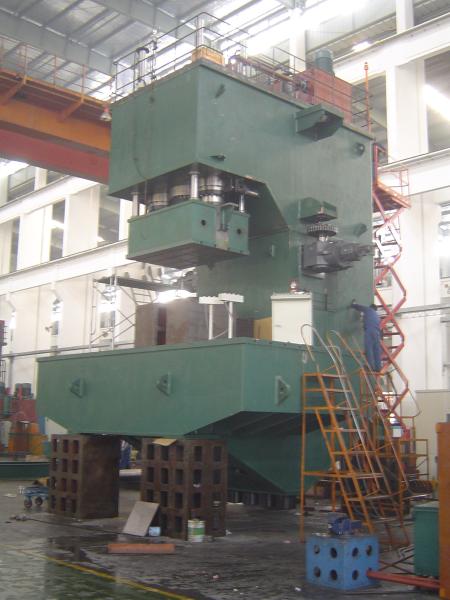

315T C-Frame Hydraulic Shipbuilding Press

Features:

  1. Optimized by computer design, single column frame.
  2. Guiding device for slider
  3. Individual hydraulic and electrical control system, button operation
  4. Pressure maintaining, automatic return
  5. Operation mode: manual and automatic
  6. Working force and stroke is adjustable

Application:

Small force presses are suitable for the process of drawing, stamping, punching of sheet metals

Large force presses are suitable for the process of bending, forming of sheet metals.

Straightening and press fitting of shaft, camshaft, crankshaft

Plastic material molding

Accessories for option:

Slider speed adjustment device

Displacement sensor

Light curtain safety device

Lighting device for working position

PLC control system

Technical Data:

Item Unit Y30-315
Nominal force kN 3150
Ejector force kN 　
Working press of medium MPa 25
Ejection stroke mm 　
Slider stroke mm 450
Throat depth mm 350
Opening daylight mm 710
Size of worktable L.R. mm 1000
F.B. mm 650
Blanking hole size mm φ170
Worktable height above the floor mm 700
Slider speed Descend mm/s 180
Working mm/s 8/15
Return mm/s 120
Overall size of machine L.R. mm 2000
F.B. mm 2280
Height above the floor mm 4200
Ejecting speed Ejecting mm/s 　
Return mm/s 　
Motor power kW 30
Machine weight t 32
