Straight Sided 100T Double Action Hydraulic Drawing Press Machine With Touch Screen
Straight Sided 100T Double Action Hydraulic Drawing Press Machine With Touch Screen
Specifications
Brand Name :
XINKE
Certification :
CE, ISO9001:2000
Place of Origin :
China
MOQ :
1 Unit
Price :
USD 10000-1000000 Per Unit
Payment Terms :
L/C, T/T
Supply Ability :
10 Units Per Months
Delivery Time :
90-180 Working Days
Packaging Details :
Wooden case, waterproof cover
Frame :
Straight Sided
Drive :
Oil Hydraulic
Control :
PLC
Feature :
High Accuracy
Application :
Drawing
Description

Y28 Double-Action Hydraulic Drawing Press

Features:

  1. Straight-sided frame pre-stressed by tie rods.
  2. The drawing slider inter locks with blank holding slider for single action drawing
  3. Loops of oil cylinders ensure high safety
  4. PLC control, touch screen

Application:

Suitable for the process of all deep drawing processes in the industries of following items

  1. Automotive parts, body
  2. Stainless steel sink
  3. Pressure vessel, such as cylinder body, dished heads

Accessories for option:

Pressure adjustment device for hydraulic cushion

Pressure adjustment device for slider

Light curtain safety device

Oil heating or cooling device

Displacement sensors

Floating guide rail for changing die

Lighting device for working position

Technical Data:

Item Unit Y28-100/150
Force of drawing slider kN 1000
Force of blank holding slider kN 500
Ejecting force kN 350
Return force of drawing slider kN 250
Return force of blank holding slider kN 　
Center hold size of blank holding slider mm Dia.330
Working pressure of medium MPa 25
Distance between drawing slider and worktable mm 1000
Distance between blank holding slider and worktable mm 500
Stroke of drawing slider mm 630
Stroke of blank holding slider mm 200
Stroke of ejector mm /
Size of drawing slider L.R. mm 630
F.B. mm 630
Size of worktable L.R. mm 630
F.B. mm 630
Speed of drawing slider Descend mm/s ≥110
Working mm/s 6-8
Return mm/s ≥90
Speed of Blankholder Slider Descend mm/s ≥45
Return mm/s ≥35
Overall size of machine L.R. mm 2030
F.B. mm 1985
Total height mm 3670
Height above the floor mm 3420
Motor power kW 7.5
Machine weight t 6

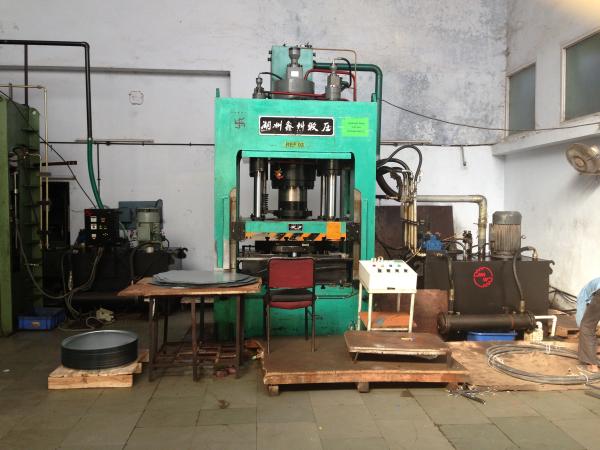

Straight Sided 100T Double Action Hydraulic Drawing Press Machine With Touch Screen

Straight Sided 100T Double Action Hydraulic Drawing Press Machine With Touch Screen

Straight Sided 100T Double Action Hydraulic Drawing Press Machine With Touch Screen
