High Speed Hydraulic Deep Drawing Press 600T For Kitchenware Servo Control System
High Speed Hydraulic Deep Drawing Press 600T For Kitchenware Servo Control System
Specifications
Brand Name :
XINKE
Certification :
CE, ISO9001:2000
Place of Origin :
China
MOQ :
1 Unit
Price :
USD 100000-1000000 Per Unit
Supply Ability :
8 Units Per Months
Delivery Time :
90-180 Working Days
Packaging Details :
Wooden case, waterproof cover
Payment Terms :
L / C
Frame :
Four column
Drive :
Oil hydraulic
Control :
PLC
Application :
Drawing
Feature :
Precision shaping
Description

Y27 600T Hydraulic Drawing Press For Kitchenware

Features:

  1. Finite element analyzed four columns frame
  2. Integrated cartridge valve is used in hydraulic system; Electro-hydraulic valve is used for the working force below 5000KN press
  3. PLC in electronic control system
  4. Operation mode: Manual, semi-automatic, automatic
  5. Hydraulic pipeline is flanged connection.
  6. Servo control system is for saving electrical power

Application:

Suitable for the process of drawing, flanging, stamping, blanking of sheet metal in the following industries

  1. Automotive parts, body, brake block, oil tank, chassis, axle housing, bumper
  2. Household appliances, eg washing machine, television, refrigerator, electric cooker
  3. Kitchenwear, eg stainless steel container
  4. Other vehicle

Accessories for option:

Moveable worktable

Slider adjustment device

Hydraulic cushion adjustment device

Buffering device for punching and trimming

Light curtain safety device

Oil heating device

Displacement sensor

Touch-screen LCD

Floating guide rail for die exchange

Lighting device for working position

Technical Data:

Item Unit Y27-630
Nominal force KN 6300
Return force KN 810
Slider stroke Mm 1100
Max. Opening daylight mm 1500
Force of hydraulic cushion mm 2500
Stroke of hydraulic cushion KN 400
Speed ​​of slider Descend mm / s 250
Working mm / s 10/24
Return mm / s 160
Speed ​​of hydraulic cushion Up mm / s 55
Size of worktable LR mm 2500
FB mm 2200
Size of hydrauic cushion LR mm 1800
FB mm 1200
Overall size of machine LR mm 5100
FB mm 2400
Height above the floor mm 5700
Motor power Kw 60

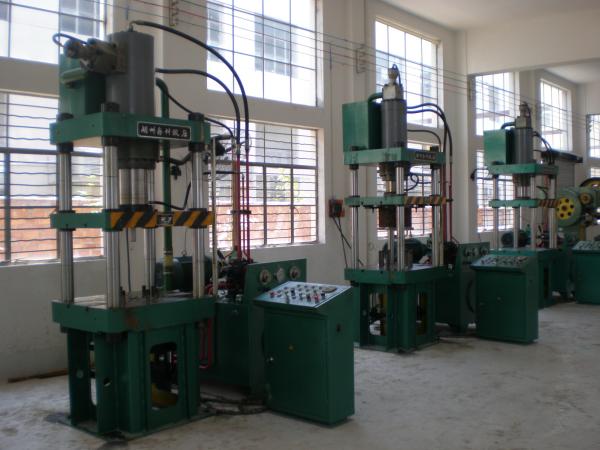

High Speed Hydraulic Deep Drawing Press 600T For Kitchenware Servo Control System
