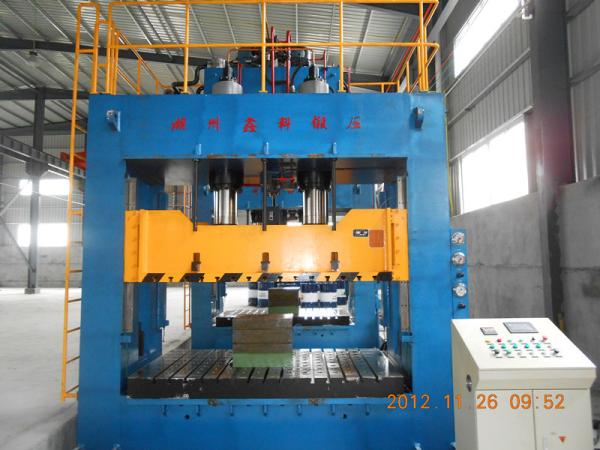

Straight Sided Hydraulic Deep Drawing Press 315T 8 Facet Guiding Power Saving
Straight Sided Hydraulic Deep Drawing Press 315T 8 Facet Guiding Power Saving
Specifications
Brand Name :
XINKE
Certification :
CE, ISO9001:2000
Place of Origin :
China
MOQ :
1 Unit
Price :
USD 100000-1000000 Per Unit
Supply Ability :
8 Units Per Months
Delivery Time :
90-180 Working Days
Packaging Details :
Wooden case, waterproof cover
Frame :
Straight sided
Drive :
Oil hydraulic
Control :
PLC
Application :
Drawing
Description

HY27 Straight Sided Hydraulic Drawing Press

Features:

  1. Finite element analyzed straight sided frame or split type frame, high rigidity and precision
  2. 8-facet guiding, high resistance to unbalanced loading
  3. High strokes of working speed for high working efficiency
  4. Displacement sensors are adopted
  5. Interlock of oil cylinders ensure high safety
  6. PLC
  7. Servo control system

Application:

Suitable for the process of drawing, flanging, stamping, blanking of sheet metal in the following industries

  1. Automotive parts, body, brake block, oil tank, chassis, axle housing, bumper
  2. Household appliances, e.g. washing machine, television, refrigerator, electric cooker
  3. Kitchenwear, e.g. stainless steel container
  4. Other vehicle

Accessories for option:

Moveable worktable

Slider adjustment device

Hydraulic cushion adjustment device

Buffering device for punching and trimming

Light curtain safety device

Oil heating device

Displacement sensor

Touch-screen LCD

Floating guide rail for die exchange

Lighting device for working position

Technical Data:

Item Unit HY27-315
Nominal force kN 3150
Return force kN 300
Force of hydraulic cushion kN 1500
Buffering force kN 　
Working pressure of medium Mpa 25
Max. opening daylight mm 1200
Loading of worktable t 　
Speed of workable mm/s 　
Stroke of worktable mm 　
Stroke of slider mm 800
Stroke of hydrdaulic cushion mm 300
Worktable height above the floor mm 600
Speed of slider Descend mm/s 300
Working mm/s 12/26
Return mm/s 280
Speed of hydraulic cushing Up mm/s 55
Size of worktable L.R. mm 1500
F.B. mm 1200
Size of hydraulic cushion L.R. mm 1000
F.B. mm 800
Overall size of machine L.R. mm 2818
F.B. mm 3610
Height above the floor mm 6515/5297
Motor power Kw 52.6
