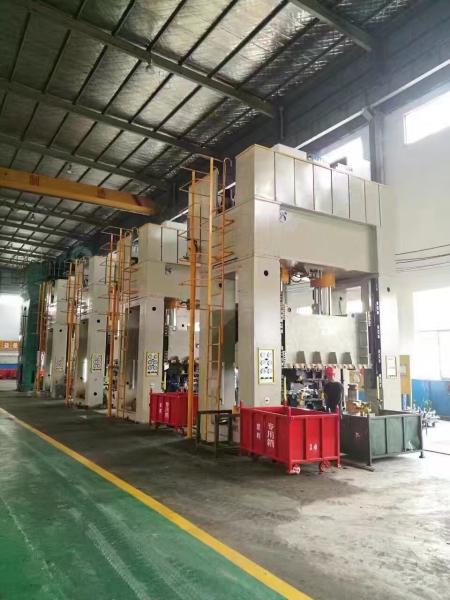

Heavy Duty 500T H Frame Hydraulic Press Hydraulic Deep Drawing Machine
Heavy Duty 500T H Frame Hydraulic Press Hydraulic Deep Drawing Machine
Specifications
Brand Name :
XINKE
Certification :
CE, ISO9001:2000
Place of Origin :
China
MOQ :
1 Unit
Price :
USD 100000-1000000 Per Unit
Supply Ability :
8 Units Per Months
Delivery Time :
90-180 Working Days
Packaging Details :
Wooden case, waterproof cover
Frame :
Straight sided / H frame
Drive :
Oil hydraulic
Control :
PLC
Application :
Drawing / stamping
Description

HY27 500T H Frame Hydraulic Drawing Press

Features:

  1. Finite element analyzed straight sided frame or split type frame, high rigidity and precision
  2. 8-facet guiding, high resistance to unbalanced loading
  3. High strokes of working speed for high working efficiency
  4. Displacement sensors are adopted
  5. Interlock of oil cylinders ensure high safety
  6. PLC
  7. Servo control system

Application:

Suitable for the process of drawing, flanging, stamping, blanking of sheet metal in the following industries

  1. Automotive parts, body, brake block, oil tank, chassis, axle housing, bumper
  2. Household appliances, e.g. washing machine, television, refrigerator, electric cooker
  3. Kitchenwear, e.g. stainless steel container
  4. Other vehicle

Accessories for option:

Moveable worktable

Slider adjustment device

Hydraulic cushion adjustment device

Buffering device for punching and trimming

Light curtain safety device

Oil heating device

Displacement sensor

Touch-screen LCD

Floating guide rail for die exchange

Lighting device for working position

Technical Data:

Item Unit HY27-500
Nominal force kN 5000
Return force kN 810
Force of hydraulic cushion kN 2000
Buffering force kN 800*2
Working pressure of medium Mpa 25
Max. opening daylight mm 1500
Loading of worktable t 20
Speed of workable mm/s 50
Stroke of worktable mm 2000
Stroke of slider mm 1000
Stroke of hydrdaulic cushion mm 300
Worktable height above the floor mm 600
Speed of slider Descend mm/s 200
Working mm/s 12/25
Return mm/s 140
Speed of hydraulic cushing Up mm/s 55
Size of worktable L.R. mm 2500
F.B. mm 1800
Size of hydraulic cushion L.R. mm 1950
F.B. mm 1200
Overall size of machine L.R. mm 3900
F.B. mm 4200
Height above the floor mm 7900/6200
Motor power Kw 60

Heavy Duty 500T H Frame Hydraulic Press Hydraulic Deep Drawing Machine
