Screw Borehole Drilling Rig Max Depth 34meters Crawler Movement Way
Screw Borehole Drilling Rig Max Depth 34meters Crawler Movement Way
Screw Borehole Drilling Rig Max Depth 34meters Crawler Movement Way
Screw Borehole Drilling Rig Max Depth 34meters Crawler Movement Way
Specifications
Brand Name :
T-works
Model Number :
KLB28-1000
Certification :
ISO9001
Place of Origin :
Hunan, China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, D/A
Supply Ability :
15units per month
Delivery Time :
40days
Packaging Details :
Nude package for main body, plastic packages for key parts
Product name :
bored pile rig
Color :
Available
Max depth :
26meters
Max diameter :
800mm
Movement way :
Crawler or step walking
After sale service :
Engineer available any time
Quality gurantee :
12months for structure,6 months for parts
Description

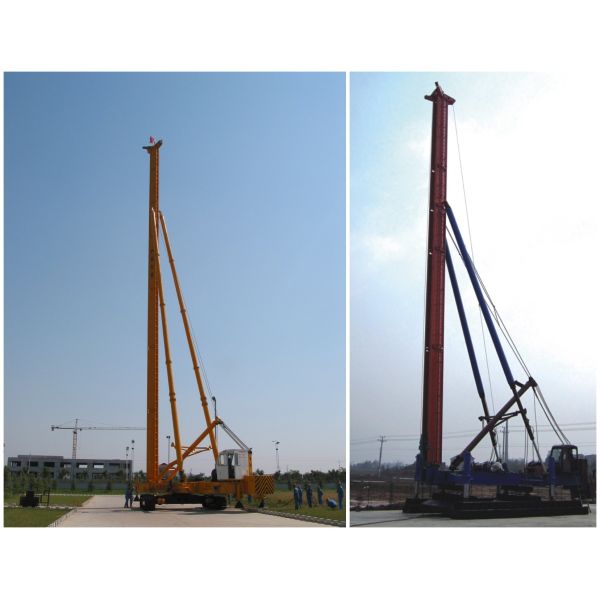

T-WORKS KLB28-1000 Screw Drilling Rig For Screw Bored Pile Of Drilling Hole With Max Depth 34meters

1. Products description

- Compsed by : Pulley group, colomn, inclined support leader, movement mechanism, rotary mechanism, winch complete set, operation cabin, hydraulic system , electrical system.

- KL series drilling rig is a kind of piling machinery for bored pile or screw pile with auger drill.

- The max drilling depth could reach 34m. A wild range of products could be chosen for your practical needs.

- Movement way: crawler or step walking.

- Lower cost and easy operation , high working effciency.

2. Application:

- Bridge auger drilling foundation construction

- Real estate bored pile or screw pile construction

- Hard layer bored pile foundation job,like decayed rock

3. Technical parameter for KLB26-800 for screw drilling rig:

KLB WALKING TYPE KLB28-1000
Walking way Electro-hydraulic step
Max drilling depth 28m
Max drilling diameter ￠1000mm
Max output torque 65KN.m
Rod rotated speed 20r/min
Allowed lifting force 640KN
Power of power head 55KW*2
Reductor of power head ZZSH480-60
Colomn size ￠630 x 10
Colomn depth 36.6 m
Colomn oriented center distance 600*￠102
Colomn inclined range front inclination 5°
back inclination 3°
Walking stroke 1.8m
Climbing ability of pile frame 6°
Rotary Rotary way rotary motor
Rotary angle ≤360°
Rotary speed 0.25r/min
Main winch Single pulling force 7T
Motor power 22KW
Increasing speed 2.0/2.6/3.2
Vice winch Single pulling force 3T
Motor power 13KW
Increasing speed 20m/min
Overall dimension(L*W) 11.5m*6m
Total weight(T) 75
