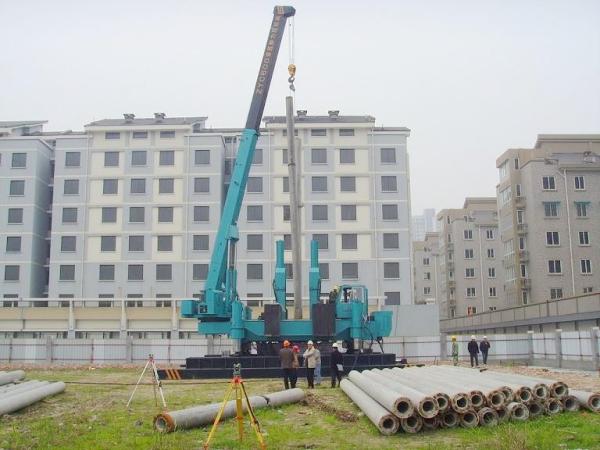

ZYC280 Hydraulic pile driving machine of engineering foundation for precast concrete pile for piling construction

1. Product description : Because of regulations and environmental issues ,the various methods that form the piles in the ground also become more popular for engineering foundation.

Comparing the traditional driving of precast piles by hammering, the hydraulic pile driving machine adopt static jack in pile method to press the pile without any noise, no vibration, no pollution , very good for piling construction work nowadays.

In Asia this method has been successfully used for over a decade. T-works as a professional manufacturer for hydraulic pile driving machine is always keeping impoving the design to meet the customers' actual requirement.

The series of hydraulic pile driving machine can drive the precast concrete pile from 150mm to 650mm for square pile, 300mm to 800mm for round pile. It also can push the tube, triangle pile, H-pile, etc by changing its jaws inside of the clamping box.

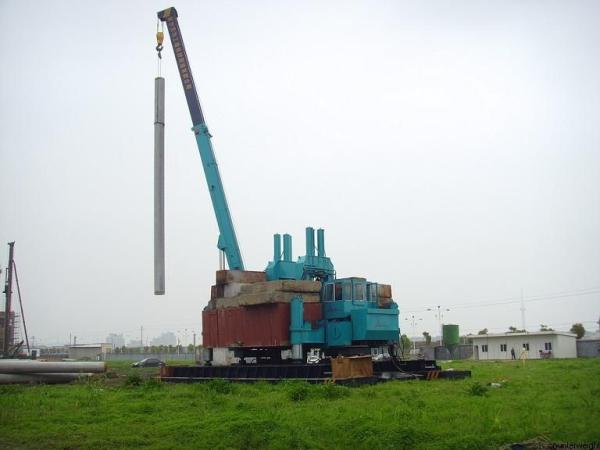

The capacity for ZYC280 is 280T, main body is 100Ton, and 180 ton counterweight is required to reach up to the piling capacity .

the lifting crane available is 12T.


2. Application:

1) Clay, soft soil, sand layer ,etc

2) Noise regulated area

3) Vibration regulated areas, such as near buildings, precision instrument buildings, subway, overpass and so on.


3. Specification of the ZYC280 hydraulic pile driving machine:

4. Features advantages :

1) Patents support the technical and keep improving all the times

With keeping moving thought inside of all T-works' staffs, we always gather the detail requirements from our customers and know what they want according to the actual condition during working. The technical engineer will do improvment and make some new design to suit the actual needs, that is why we have accumulated many patents .





2) Side mechanism

Side piling mechanism can reach at least 50% of center piling capacity, sharing the same clamping box and jaws with center. It can push the triangle pile, square pile, round pile, H- pile, and other shapes.




3) Assembly and De- mobilization
After shipment, the machine has to be assembled using the instructions and maybe with help of our employees as usual , This takes one or two days, after which a trainning can be given in working with the hydraulic pile pusher.
This is a special design for its legs which is automatical . It can walk onto the trailer freely by its walking mechanism. Also no need to dismantle them during transporation .



4) After sale service and quality gurantee

6) We guarantee to keep our Main Machine in good repair for 1 year after sale and 6 months for accessories. In the guarantee time, any quality problem caused by manufacturing after confirmation of us shall be repaired for free; Exceed the guarantee time, we can also supply repair services to our products charged for repair cost only.
