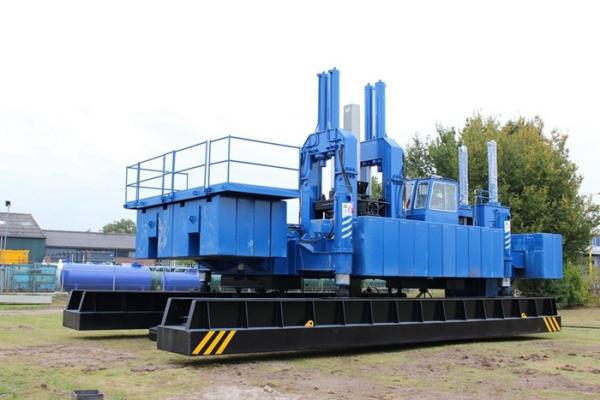

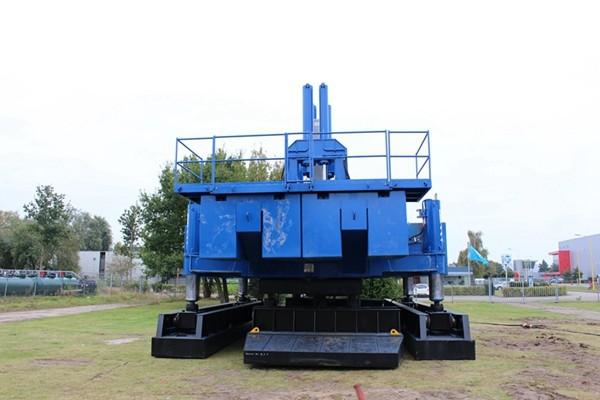

Fast Piling High Efficiency Hydraulic Press In Pile Driver with Low Noise Low Vabration

1, Description:The pile driver is composed of clamping box, pile pressing mechanism, rise mechanism, travel mechanism, crane, hydraulic system, electric system and so on. It can finish all the pile lifting, pile pressing (including press side and corner pile), travel, and steering.

The pressing-pile speed amounting to 300-800 meters within 8hours, which it's quite more efficient than other conventional pile drivers.

2, Applications:

1). No limitation on pile length. Suitable for construction in clay soil, soft soil and sand bed foundation, or in the Karst areas with low earth covering, or by riversides, or in coastal areas with deep bearing stratum.

2). No noise, No pollution during construction, especially suitable for operations in areas with noise control such as schools, social communities, and urban areas.

3). No vibrations. Suitable for vibration-control areas such as subways, overpass, dangerous buildings, precision instrument buildings and those nearby banks.

3, Specifications:

4, Feature Advantage:

1).Unique design of clamping mechanism for each jaw to be adjusted with the shaft bearing surface to ensure the largest contact area with the pile, avoid damaging the pile.

2).Unique design of side/corner piling structure, improves the capacity of side/corner piling, the pressure force of side/corner piling up to 60% -70% of main piling. The performance is much better than hanging side/corner piling system.

3). Unique clamping pressure-keeping system can automatically fill in the fuel if the cylinder leak oil, ensuring high reliability of clamping pile and high quality of construction.

4). Unique terminal pressure-stabilized system ensures no float to the machine at rated pressure, greatly improving the safety of operation.

5). Unique walking mechanism with lubrication cup design could realize durable lubrication so as to extend service life of rail wheel.

6). Constant & high flow power hydraulic system design ensures high piling efficiency.
