High Effciency Hydraulic Jack Hammer Crawler Walking Movement Type
High Effciency Hydraulic Jack Hammer Crawler Walking Movement Type
High Effciency Hydraulic Jack Hammer Crawler Walking Movement Type
High Effciency Hydraulic Jack Hammer Crawler Walking Movement Type
Specifications
Brand Name :
T-WORKS
Model Number :
11T
Certification :
CE / SGS / ISO9001
Place of Origin :
Hunan, China (Mainland)
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 Set/Sets per Month Piling rig
Delivery Time :
30days after contract signed
Packaging Details :
Main machine nude packed but key parts packed by plastic paper & tape and sealed with grease.
Condition :
New
Efficiency :
98%
Movement type :
Crawler type or walking type
Engineering machine :
A pile driving machine by hydraulic
After-sale service :
Engineer available any time
Description

Hydraulic hammer pile for piling the PHC pile with high effciency without air pollution 11T

1. Product description

Our hydraulic hammer pile is a new generation with high blow rate and lower cost. The capacity is from

5T to 16T , and keep developing bigger capacity all the time accordingly. Hydraulic piling hammer is

featured with no air pollution, lower vibration, high working effciency, very suitable for the big concrete

spun pile, from size 300mm to 1000mm.

2. Product Application

- It is widely used in foundation construction, bridge, port and sea construction.

- can drive any types of pile, expecially PHC spun pile, square pile, H-pile, tubes etc

3. Advantages for the hydraulic hammer pile

- High blow rate and remote control system are effective for fast and accuracy driving.

- Hydraulic and electrical components are imported to ensure the quality

- Ram slide can be changed easily by the special design

4. Specification for 11T hydraulic hammer pile

SPECIFICATIONS
Max energy of blow
Kn.m
 132
Max stroke of blow
mm
1200
Min stroke of blow
mm
200
Weight of hammer core
kgs
13000
Blow frequency
times
20--60
Pump set
model
2*A7V107
Max oil pressure
Mpa

23
Weight of complete set
KGS
15670
Total height
mm
7780
Suitable piles(square pile or round pile or pipe)
mm
300-600

5. Piling frame which can match the hammer is available for customer too.

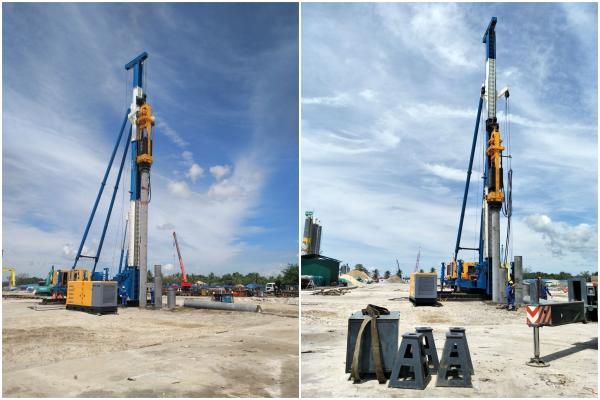

High Effciency Hydraulic Jack Hammer Crawler Walking Movement Type

6. Our Service
1) Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

2) After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

7. Packing & Delivery
Packaging
Size
7780*1800mm*1200mm
Weight
15670mm
Packaging Details
The normal package is plastic package. If container is too tigher,we will use pe film for packing or pack it according to customers special request.
