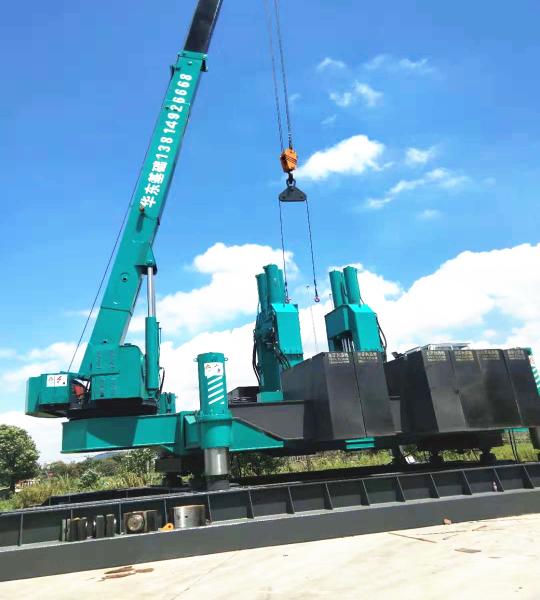

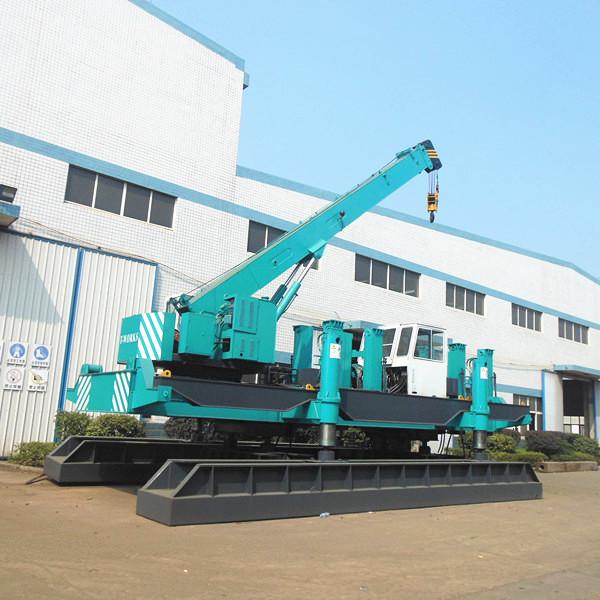

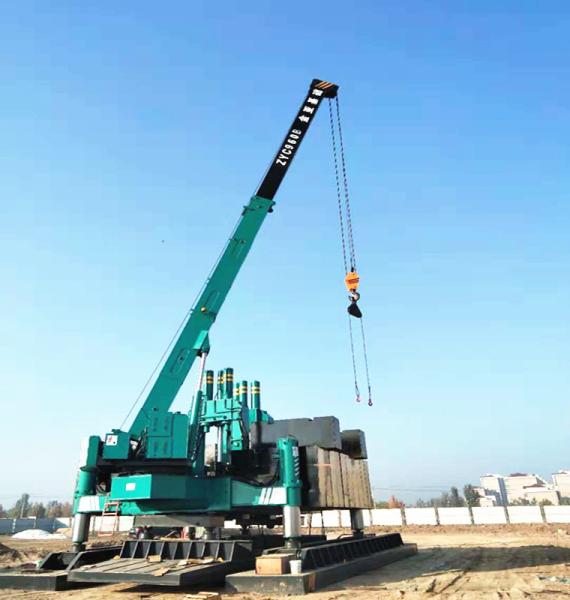

Three Type Hydraulic Piling Machine , Hydraulic Rotary Piling Rig
Three Type Hydraulic Piling Machine , Hydraulic Rotary Piling Rig
Three Type Hydraulic Piling Machine , Hydraulic Rotary Piling Rig
Three Type Hydraulic Piling Machine , Hydraulic Rotary Piling Rig
Three Type Hydraulic Piling Machine , Hydraulic Rotary Piling Rig
Three Type Hydraulic Piling Machine , Hydraulic Rotary Piling Rig
Specifications
Brand Name :
T-WORKS
Model Number :
ZYC80
Certification :
ISO9001/SGS / GOST/CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30 Set/Sets per Month Mini pile machine
Delivery Time :
30 days after deposit received
Packaging Details :
main machine nude packed but key parts packed by plastic paper & tape and sealed with grease.
Product name :
Hydraulic Piling Machine
Rated piling pressure(KN) :
800
Crane mounted :
from 5T or 8T available for customer
Side piling mechanism :
3types available for customer
Piling speed(m/min) :
4.5
Total weight(T)≥ :
80
Color :
Customized
Walking Type :
Step Walking
Description

Three Types Piles For 80T Hydrualic Pile Machine With 800 Rated Piling Pressure

1. Description:

We are able to produce nearly 40 ZYC models of Static pile drivers from 60 tons to 1200 tons at the customers'own choice,or make a new model according to the customers'requirement.

Each model of pile drivers can work with a varity of piles, squre piles, thick-walked round piles,thin-walled round piles or other shape of steel piles with difrference mechanism to hold piles.

Three Type Hydraulic Piling Machine , Hydraulic Rotary Piling Rig

2. Applications:

  • Clay, soft soil, sand layer ,etc
  • Noise regulated area
  • Vibration regulated areas

3. Specifications:

paramete / type/model ZYC80
Rated piling pressure(KN) 800
Piling speed(m/min) Fast 4.5
Low 2.2
Piling stroke(m) 1.6
Pace(m) Longitudinal 1.5
Horizontal 0.4
Angle range(°) 15
Rise stroke (m) 1.25
Square pile(mm) Max 300
Circle pile(mm) Max 300
Side piling space(mm) 300
Corner piling space(mm) 500
Lifting weight(t) 5
Lifting pile's lengh(m) 8
Power(KW) Piling 18.5
Lifting 11
Main dimension(m) Work length 5.4
Work width 3.9
Transport height 2.0
Total weight(T)≥

80

4. Feature Advantage:

Our machine have the following features in contrast to others:

Counterweight Under the Crane:This design balances the counterweights on the machine , keep it from dangerous by the over stack

Unique design of attachable side piling structure, improves the capacity of side piling,meets the requirement of different site condition.

The holder of counterweight mean can be foldable,and convenient in loading .

Three Type Hydraulic Piling Machine , Hydraulic Rotary Piling Rig
