Specifications
Brand Name :
SMART CNC
Model Number :
Q35Y-25
Certification :
CE,ISO,TUV
Place of Origin :
China
MOQ :
1 sets
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20 sets/months
Delivery Time :
30days
Packaging Details :
Wooden case
Function :
punching shearing bending
Product name :
90ton hydraulic ironworker for sale
Application :
Metal Sheet Stamping
Keyword :
Hydraulic ironworker machine
Name :
Hydraulic ironworker 160 ton iron workers Q35Y-30
Usage :
Sheet Metal Industry
Description

Q35Y-25 Hydraulic Iron Worker/Ironworker Machine(Punching And Shearing Machine)

1. whole structure of the hydraulic iron worker :

1. Q35Y Series Hydraulic Iron Worker, Totally European design,The machine are strong and easy to use machines which are able to can cut and punch all kinds of materials such as plate, square bar, angle, round bar, channel and so on.

2. Accurl Industrial hydraulic ironworkers have been designed and built to the highest quality standards in the industry. This profitable machine will serve any grueling fabrication shop for decades to come

3. The machine by the European Union CE certification and ISO quality system certification

2. Hydraulic system:

1. Adopt integrated hydraulic control system, more reliable and easy for maintenance.Hydraulic system is from Bosch – Rexroth,Germany.

2. All seals in cylinder is PARKER from USA,the most famous brand,good quality and high performance

3. Being able to work under rated load continuously,stable working and high precision.

3. Machine Blade::

1. The rectangular monoblock blades featuring long life with 4 cutting edges, quality high-carbon high-chrome blades D2 quality.

4. Electrical system and the safety interlock:

1. Electrical components are from European,in accordance with international standards,reliable safety,long life,good anti-interference ability,a radiation unit is fitted in electrical cabinet.

2. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.

3. Emergency stops on machine and foot switch for safety,Foot pedal conforming to CE regulation.

Spec

Model Q35Y-12 Q35Y-15 Q35Y-16 Q35Y-20 Q35Y-25 Q35Y-30 Q35Y-40
Pressure(Ton) 45 55 60 90 110 140 200
Max.cutting thickness(mm) 12 15 16 20 25 30 40
Plate strength(N/mm2) ≤450 ≤450 ≤450 ≤450 ≤450 ≤450 ≤450
Cutting angle(degree)
Shearing size of one stroke(mm) 12x250 15x300

16x250

8×400

20x330

10×480

25x330

16×600

30x355

20×600

35x400

25×700

Ram stroke(mm) 60 60 80 80 80 80 100
Cycles/min(20mm stroke)(mm) 8 8 8 8 6 6 8-25
Throat depth(mm) 200 200 300 355 400 600 600
Punching thickness(mm) 12 15 16 20 25 26 35
Max.Punching diameter(mm) 22 24 25 30 35 38 41
Power of main motor(kw) 3 4 4 5.5 7.5 11 15
Overall dimensions(L*W*H)mm

1200x

520x1500mm

1320x

590x1620mm

1640x

730x1770mm

1860x

800x1900mm

2355x

960x2090mm

2680x

1040x2300mm

2850x

1300x2400mm

Weight of machine(kg) 1000 1400 1600 2500 4500 6800 9500

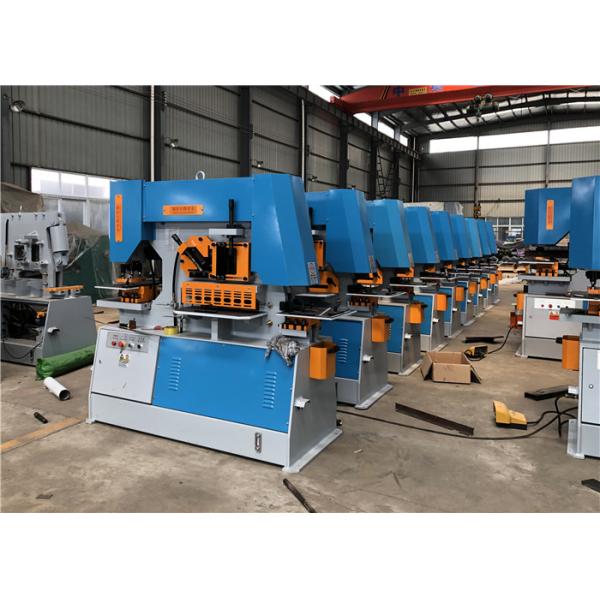

Metal Sheet Stamping 90t Hydraulic Ironworker Machine
