Clicker Machine Press Machine , Leather Clicking Machine Low Energy Consumption
Clicker Machine Press Machine , Leather Clicking Machine Low Energy Consumption
Specifications
Brand Name :
YAOYU
Model Number :
XCLP3-150
Place of Origin :
JIANGSU ,CHINA
MOQ :
1 SET
Payment Terms :
TT50% IN ADVANCE ,50% BEFORE SHIPMENT
Supply Ability :
100 sets per month
Delivery Time :
30 days
Packaging Details :
WOODEN CASE
Certification :
CE
Parameter :
Can be customized
Description

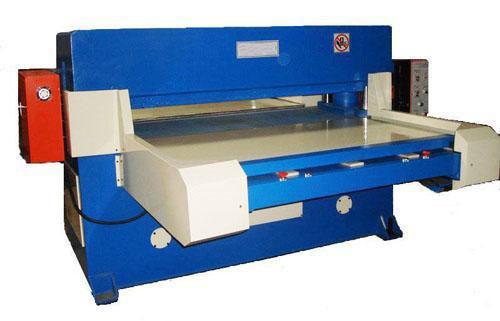

Automatic Hydraulic Cutting Machine For Making Shoes

Parameter:

Model number XCLP3-150
Maximum cutting force 150T
Upper pressure plate to table distance 50-200 ㎜
The cutting area 1600×1000 ㎜
1400×1000 ㎜
Main motor power 11KW
Machine weight 10000KG
9200KG

Note:The company can customize the special specifications such as cutting zone, feeding mode (single, bilateral automatic feeding) according to customer's requirements.

Advantage:

1. PLC programmable control, simple operation, fast and accurate.

2. The main engine adopts double oil cylinder, double crank automatic balance connecting rod balance and four-column precision guide mechanism to ensure the cutting depth of each cutting position is exactly the same.

3. When pressing the pressing plate, it is automatically slow to cut the cutting, so that there is no size error between the top and bottom of the cutting material.

4. All sliding parts are lubricated by hydraulic system, reducing wear and tear, ensuring the service life and precision of the machine.

5. The automatic feeding mechanism of the bilateral motor adopts the frequency conversion buffer system, which can simultaneously cut the different height of the cutter to improve the efficiency of the work 80%.

6. Can configure the cutting board micro device, make the cutting board uniform consumption, cost saving.

7. It can be equipped with die clamping device, and it is convenient and fast to replace the die.

Application:

This machine is suitable for all kinds of non - metal sheet metal materials to be cut or half - cut.

For example: plastic, pearl cotton packaging, rubber, printing and other industries.
