Specifications
Brand Name :
AI LE SEN
Model Number :
DS160-1600-Y
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiated
Payment Terms :
D/P
Supply Ability :
400 sets per month
Delivery Time :
Inventory stock
Packaging Details :
Carton
Name :
Pressure gauge
Measuring range :
0-1600Bar
Material :
Stainless steel
Installation method :
Panel type
Installation direction :
Y axis
Shockproof medium :
Silicone oil
Accuracy class :
1.6
Description

Pressure gauge

  • Bottom and panel mounted hydraulic pressure gauges
  • Stainless steel AISI 316 and AISI 304. Dial face of aluminum with black graduations.
  • Pointer of aluminum or stainless steel. Gasket of polychloroprene. Window of plexiglass.
  • The actual pressure must be controlled within 70% of the range.
  • When installing the pressure gauge, the pressure gauge adapter must be used together.
  • There are 3 fixed threaded holes on the DS type pressure gauge
  • The pressure gauge does not come with inspection report and calibration certificate.
  • If necessary, please inform when ordering.
  • Please consult AI LE SEN when using non-hydraulic oil.

Technical data:

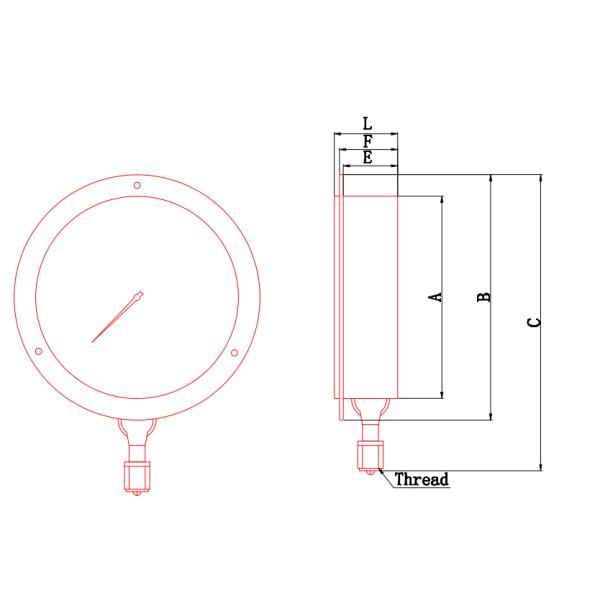

Type A(mm) B(mm) C(mm) E(mm) F(mm) L(mm) Thread
DS160-1600-Y 160 194 234 43 46 50 G1/2

0 To 1600Bar Stainless Steel Liquid Filled Pressure Gauge Shockproof Silicone Filled Pressur

0 To 1600Bar Stainless Steel Liquid Filled Pressure Gauge Shockproof Silicone Filled Pressur

0 To 1600Bar Stainless Steel Liquid Filled Pressure Gauge Shockproof Silicone Filled Pressur

0 To 1600Bar Stainless Steel Liquid Filled Pressure Gauge Shockproof Silicone Filled Pressur
