Specifications
Brand Name :
AI LE SEN
Model Number :
ADS
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
D/P
Supply Ability :
300/month
Delivery Time :
In stock
Packaging Details :
Wooden crate
Type :
Power tools
Product name :
Electricand battery powered torque wrenches
Drive way :
Battery
Battery data :
18V5Ah lithium battery（Standard configuration）
Can choose :
18V9Ah lithium battery
Charging stand :
Fast（1sets）
Number of batteries :
2 sets
Minimum orde :
1
Supply ability :
300/month
Description

Electricand battery powered torque wrenches

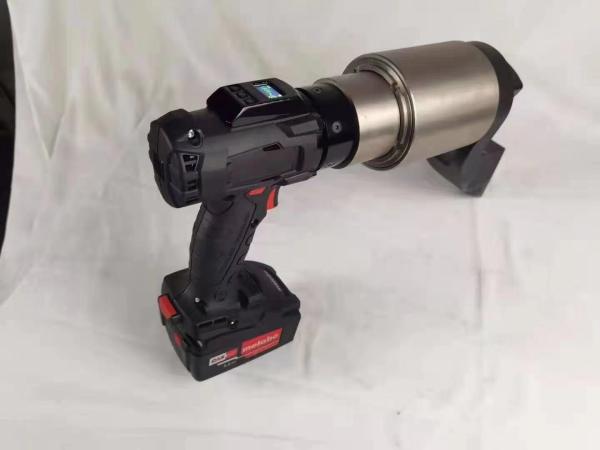

Model:ADS digital battery torque wrench

1. Driven by a new modern brushless motor: reaches torques very precisely and efficient. Even when the battery is low.New modern brushless motor have a better efficient power output than existing competitiors.

2. Numerous boltings: The powerful 18V 5.0Ah battery reaches up to 300 boltings per battery charge. We also deliver a second battery pack with the multiplier. 9.0Ah battery optional.

3. High accuracy of +/-5%, recalibration system makes tool more accurate. Programmable preset torque settings.

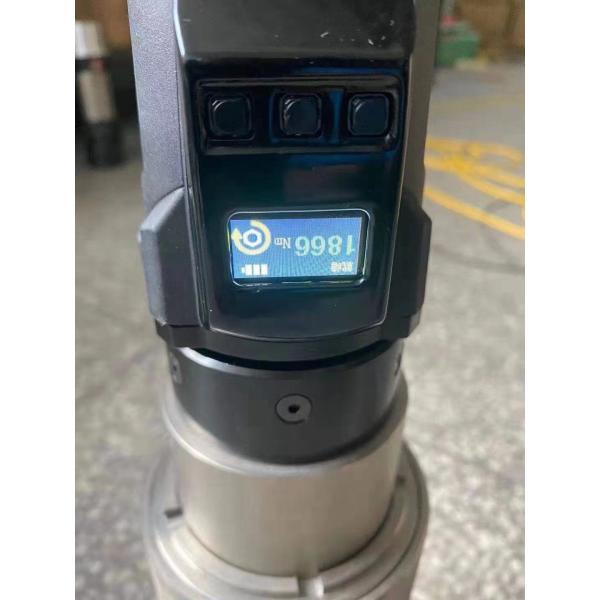

4. LCD digial display.Adjusting torque with every 10 Nm.

5.Redlithium battery packs help bolting more nuts.

6.Wireless control optional, data recording system up to 1000 numbers of bolting job

7.Optional Transducerized system. Output shaft with transducerized make torque output accurancy less than +/-2%

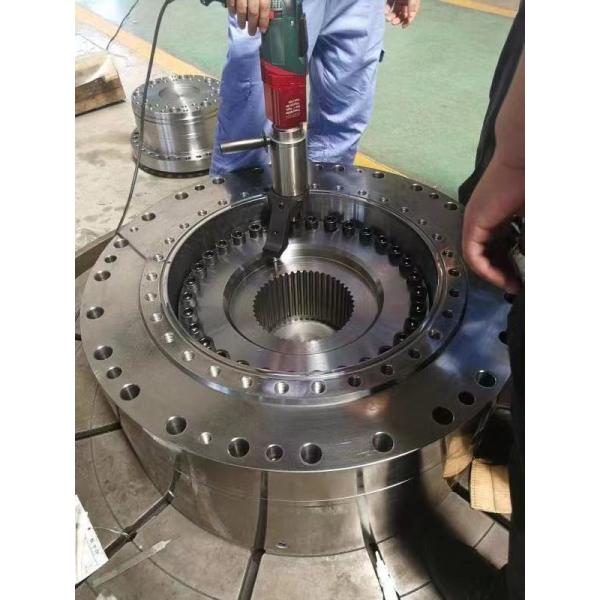

8.The ADS is ideal to use for service jobs on bolted joints where space is limited or where power supplies are not easy accessible, for example offshore applications on windturbines or others.
Technical data:(The data in the above table is for reference, and the manufacturer has the right to interpret)
Type Min(N.m) Max(N.m) S D L2 L1 H1 L4 W(mm) R1 R2 R3 L3 Weight(Kg) Spead(Rom)
ADS05 100 500 3/4" 63 163 280 260 110 80 34 56 43 46 4.6 27.5
ADS08 100 800 3/4'' 65 163 287 260 110 80 34 56 48 48 4.8 17
ADS16 200 1600 1'' 69 163 327 260 110 80 36 70 58 60 5.8 7
ADS20 200 2000 1'' 69 163 327 260 110 80 36 70 58 60 5.8 5.6
ADS30 500 3000 1'' 82 163 340 260 110 80 46 80 68 80 7.4 3
ADS40 700 4000 1-1/2'' 88 163 355 260 110 80 46 80 68 80 8.3 2.4
ADS60 1000 6000 1-1/2'' 92 163 412 260 110 80 55 93 65 95 10.8 1.4
ADS80 2000 8000 1-1/2'' 103 163 435 260 110 80 55 93 65 95 12.6 1.1

Objective technical advice

Being a whole system supplier we are not determined to one specific bolting method - Therefore we advise you objectively and offer the best technical and cost-effective solution.

Contact us on any questions regarding your bolt connection or for any technical questions. We advise you free of charge and offer a free on-site inspection.
