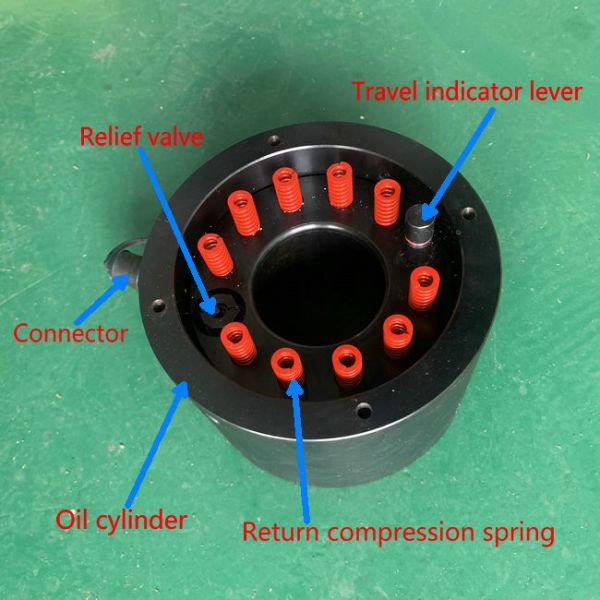

1500 Bar Hydraulic Bolt Tensioning System Equipment 7000KN
1500 Bar Hydraulic Bolt Tensioning System Equipment 7000KN
1500 Bar Hydraulic Bolt Tensioning System Equipment 7000KN
1500 Bar Hydraulic Bolt Tensioning System Equipment 7000KN
Specifications
Brand Name :
AI LE SEN
Model Number :
ESX2
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiate
Payment Terms :
D/P, T/T
Supply Ability :
200 Set Every month
Delivery Time :
5-6 Work days
Packaging Details :
Wooden box
Product name :
HYDRAULIC BOLT TENSIONING SYSTEM
Work Pressure :
1500Bar
Tensile force :
280-7000KN
Bolt diameter size :
3/4''-4''
Max Stroke :
15-30mm
Oil Inlet :
ISO228/1-G1/4
Usage :
BOLT TIGHTENING SOLUTIONS
Processing type :
Forged alloy steel
Condition :
New
Characteristic :
Anticorrosion
Description

AI LE SEN HYDRAULIC BOLT TENSIONING SYSTEM IS A RELIABLE PARTNER

Company Brief

We offer a complete and dynamic range of boltingtools including hydraulic bolt tensioners and hydraulic
torque wrenches, as well as pneumatic and electric transducerized nutrunners.

Aero Foundation tensioners come in four basic types

1. Long Piston Stroke Tensioner

2. Metric Thread Tensioner

3. Short Piston Stroke Tensioner

4. Elliptical Tensioner

Technical parameters for reference

Type

 Inch Metric mm
ESX2-1 3/4’’ M20 15-30
ESX2-2 13/16’’ M22 15-30
7/8’’ M24

ESX2-3

 7/8’’ M24

15-30
1’’ M27
1 1/8’’ M30

ESX2-4

 7/8’’ M24

15-30
1’’ M27
1 1/8’’ M30
1 1/4’’ M33

ESX2-5

 1 1/8’’ M30

15-30
1 1/4’’ M33
1 3/8’’ M36
1 1/2’’ M39

ESX2-6

 1 1/4’’ M33

15-30
1 3/8’’ M36
1 1/2’’ M39
1 5/8’’ M42

ESX2-7

 1 3/8’’ M36

15-30
1 1/2’’ M39
1 5/8’’ M42
1 3/4’’ M45

ESX2-8

 1 1/2’’ M39

15-30
1 5/8’’ M42
1 3/4’’ M45
1 7/8’’ M48

ESX2-9

 1 5/8’’ M42

15-30
1 3/4’’ M45
1 7/8’’ M48
2’’ M52

ESX2-10

 1 3/4’’ M45

15-30
1 7/8’’ M48
2’’ M52
2 1/4’’ M56

ESX2-11

 1 7/8’’ M48

15-30
2’’ M52
2 1/4’’ M56
2 3/8’’ M60
2 1/2’’ M64

ESX2-12

 2 3/8’’ M60

15-30
2 1/2’’ M64
2 3/4’’ M68
3’’ M72
3’’ M76

ESX2-13

 2 1/2’’ M64

15-30
2 3/4’’ M68
3’’ M72
3’’ M76
3 1/4’’ M80

ESX2-14

 3’’ M72

15-30
3’’ M76
3 1/4’’ M80
M85
3 1/2’’ M90

ESX2-15

 3 1/2’’ M90

15-30
3 3/4’’ M95
4’’ M100

You now have one reliable partner that gives you access to a complete line of bolt tightening tools to boost your productivity and minimize
downtime. Whether using our custom-designed hydraulic bolt tensioner, our robust and accurate hydraulic torque wrench, or our industry-leading electric or pneumatic nutrunners, we bring the best product and support available to you.

1500 Bar Hydraulic Bolt Tensioning System Equipment 7000KN

You now have one reliable partner that gives you access to a complete
line of bolt tightening tools to boost your productivity and minimize
downtime. Whether using our custom-designed hydraulic bolt
tensioner, our robust and accurate hydraulic torque wrench, or our
indutry-leading electric or pneumatic nutrunners, we bring the best
product and support available to you.
