Turbo 680KN Hydraulic Bolt Tensioning Cylinder D600 Maximum Jacking
Turbo 680KN Hydraulic Bolt Tensioning Cylinder D600 Maximum Jacking
Turbo 680KN Hydraulic Bolt Tensioning Cylinder D600 Maximum Jacking
Turbo 680KN Hydraulic Bolt Tensioning Cylinder D600 Maximum Jacking
Specifications
Brand Name :
AI LE SEN
Model Number :
D600
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiate
Payment Terms :
D/P, T/T
Supply Ability :
200 Set Every month
Delivery Time :
5-6 Work days
Packaging Details :
Wooden box
Product name :
Turbo Hydraulic Bolt Tensioner
Work Pressure :
150MPa
Max Stroke :
15mm
lift force :
680KN
For :
Turbine Blades
Processing type :
Forged alloy steel
Oem service :
Accept
Condition :
New
Description

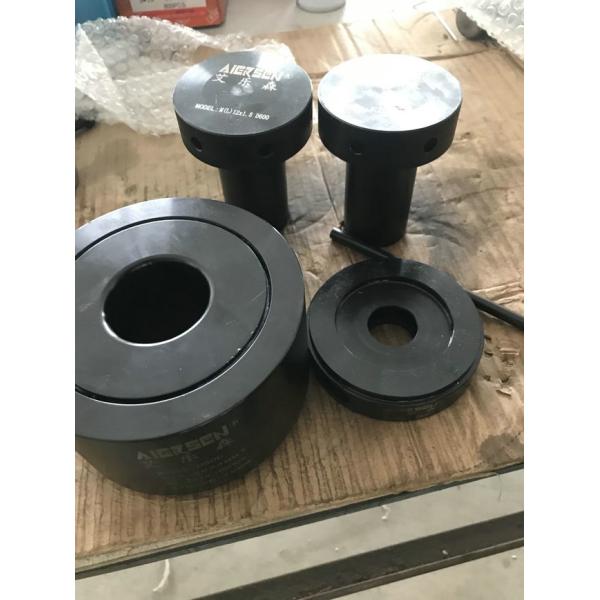

Turbo hydraulic bolt tensioner D600 maximum jacking force 680KN

Turbo hydraulic bolt t​ensioner

Turbo hydraulic bolt t​ensioner Cylinders are designed and manufactured to include wear resistant coated pistons, maximum piston travel indicators, replaceable threaded sleeves, dual quick connect couplings for easy connection of multiple tensioners and user friendly operation and maintenance procedures.

For

The D600 Bolt Tensioner Series is designed for topside operation in a variety of applications including pipe flanges, heat exchangers, pressure vessels, compressor covers, boiler feed pumps, anchor bolts, and more. The range includes 26 inch size options, from ¾” to 4” thread sizes, and all models are suitable for working pressures up to 1500 bar. Each model of hydraulic tensioning cylinder in the tensioner range can be operated with a variety of thread pullers and nut rotating sockets, ensuring that the largest possible range of bolt sizes can be accommodated using the minimum number of hydraulic cylinders. Thread pullers, bridges and nut swivel sockets are available as separate components.

Features of D600 series

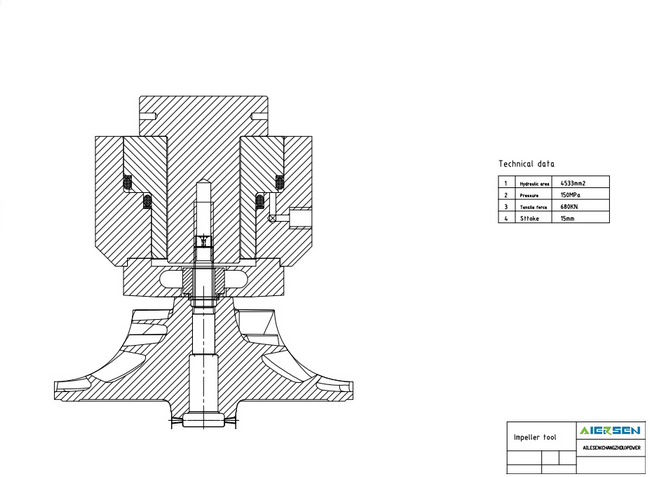

Interchangeable accessories suitable for disassembly and tightening of turbine blade bearings, use the same tensioner to cover a variety of stud sizes, and can match multiple specifications of turbine blades.
The bottom circular arc design is in closer contact with the turbine blades.
Piston return requires manual
High-grade alloy steel structure
nitrocarburized piston
Maximum Piston Travel Indicator
Dual quick connect accessories for easy connection

Technical parameter

Working pressure 0-1500Bar
Lift force 650KN
Stroke 15mm

Turbo 680KN Hydraulic Bolt Tensioning Cylinder D600 Maximum Jacking

Turbo 680KN Hydraulic Bolt Tensioning Cylinder D600 Maximum Jacking
