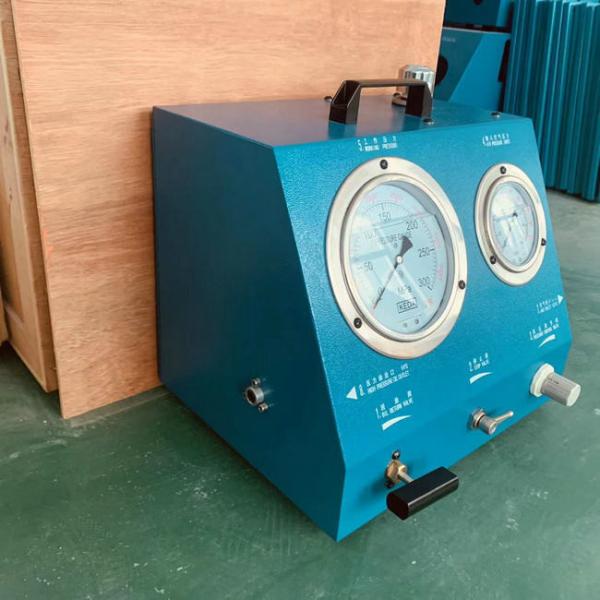

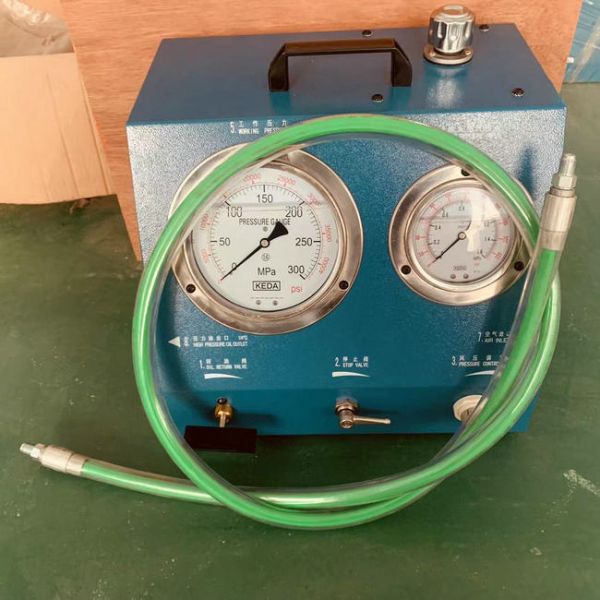

2900 Bar Blue Hydraulic High Pressure Pump Portable Pneumatic Pump For Tension Bolting
2900 Bar Blue Hydraulic High Pressure Pump Portable Pneumatic Pump For Tension Bolting
2900 Bar Blue Hydraulic High Pressure Pump Portable Pneumatic Pump For Tension Bolting
2900 Bar Blue Hydraulic High Pressure Pump Portable Pneumatic Pump For Tension Bolting
2900 Bar Blue Hydraulic High Pressure Pump Portable Pneumatic Pump For Tension Bolting
2900 Bar Blue Hydraulic High Pressure Pump Portable Pneumatic Pump For Tension Bolting
Specifications
Brand Name :
AI LE SEN
Model Number :
G2800HP
Certification :
IOS9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiate
Payment Terms :
T/T, D/P
Supply Ability :
500 Set Every month
Delivery Time :
In stock
Packaging Details :
Carton box suitable for air transportation
Product name :
Hydraulic High Pressure Pump
Maximum pressure :
2900Bar
Fuel tank capacity :
4.5L
Drive way :
Pneumatic
Colour :
Blue
G.W. :
24kG
N.W. :
29kg
Package :
550x430x450(mm)
Description

Pneumatic High Pressure Pump Provides Power For Tension Jacking And Bolting During Engine Overhaul

Product Brief

For over a decade, marine service providers have relied on Ailesen's G-Pump. Its high-quality manufacturing and robust construction make it durable and the first choice for overhaul and repair applications. G-pumps provide tensioning, jacking and bolting during engine overhauls with the power, speed and reliability you need. This high pressure hydraulic pump is pneumatic

Technical parameter

Output pressure(Bar)

MAX,2800 At8.0 Bar Air Input

Fuel tank capacity (L)

4.5

Pump speed

APPROX.550 CYCLES/MIN.AT8.0 BAR AIR INPUT

MAX,FLOW AT NO PRESSURE

APPROX. 0.5 LITRES/MIN.AT 8.0 BAR AIR INPUT

Weight(Kg)

 28

Dimensions(mm)

340*320*380

AIR ACCESS PORT

 ISO228/1-G1/2

HIGH-VOLTAGE OUTPUT

 ISO228/1-G1/4

2900 Bar Blue Hydraulic High Pressure Pump Portable Pneumatic Pump For Tension Bolting

2900 Bar Blue Hydraulic High Pressure Pump Portable Pneumatic Pump For Tension Bolting

Company products

We are a complete hydraulic system supplier. If you need bolt tensioning and loosening services, please contact us for free technical consultation.

Fuel valve testing device, pneumatic high pressure pump, manual high pressure pump, electric high pressure pump, hydraulic cylinder, hydraulic jack and various hydraulic tools and pneumatic tools.

These products are widely used in shipbuilding, marine engineering, aviation, metallurgical equipment, mining, hydraulic engineering, wind power, nuclear power engineering and other important fields.

Among them, the fuel valve detection device, pneumatic high-pressure pump, manual high-pressure pump, and electric high-pressure pump are in sufficient stock and can be shipped at any time.
