A11VO40 Rexroth Piston Pump Parts Low Noise For Construction Machinery
A11VO40 Rexroth Piston Pump Parts Low Noise For Construction Machinery
A11VO40 Rexroth Piston Pump Parts Low Noise For Construction Machinery
A11VO40 Rexroth Piston Pump Parts Low Noise For Construction Machinery
A11VO40 Rexroth Piston Pump Parts Low Noise For Construction Machinery
A11VO40 Rexroth Piston Pump Parts Low Noise For Construction Machinery
Specifications
Brand Name :
HL
Model Number :
A11VO40
Certifidieselion :
ISO9001
Place of Origin :
China
MOQ :
1Set
Payment Terms :
Western Union, L/C, T/T
Delivery Time :
3-5 working days
Packaging Details :
Paper and wooden packing
Structure :
Piston Pump
Theory :
Rotary Pump
Pressure :
High Pressure
Parts Name :
Cylinder Block,Piston,Retainer Plate,Ball Guide,Valve Plate, Drive Shaft
Processing Technic :
Cutting,Lathe, Machining Center,Heat Treatment, Grind,Honing,Burring And So On
Applidieselion :
Excavators Hydraulic Pump
Description

Rexroth A11VO series hydraulic pump A11VO40 used for excavators

1)Hydraulic main pump and motors Parts
2) Model: A11VO40
3) Reasonable Price

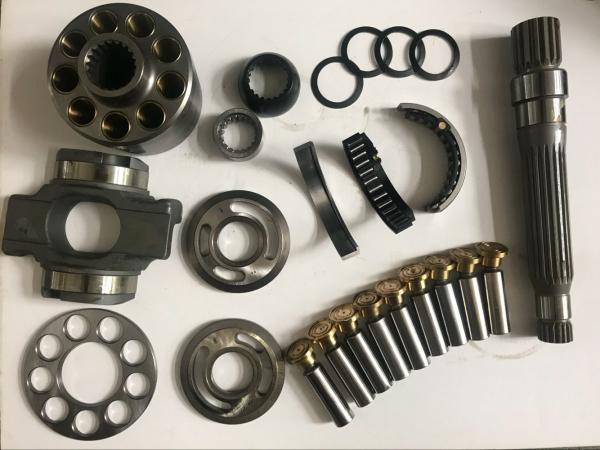

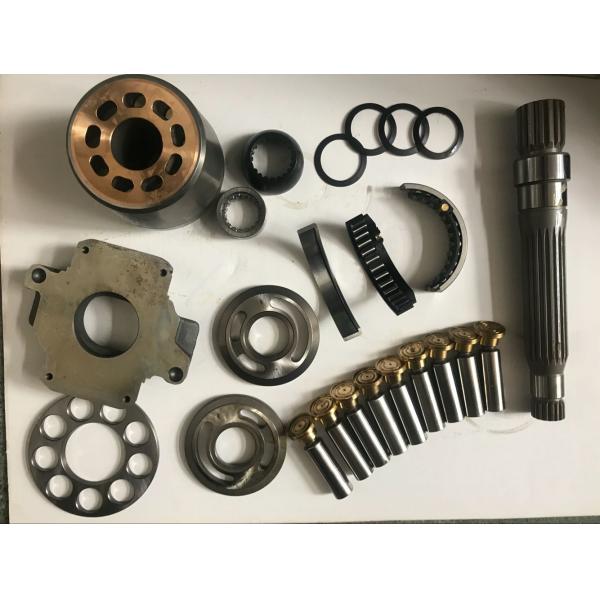

Rexroth A11VO40 Hydraulic pump spare Parts :

Model: A11VO40

Package : Carton, Wooden Case

Standard: Rexroth

Piston shoe 9
Cylinder block 1

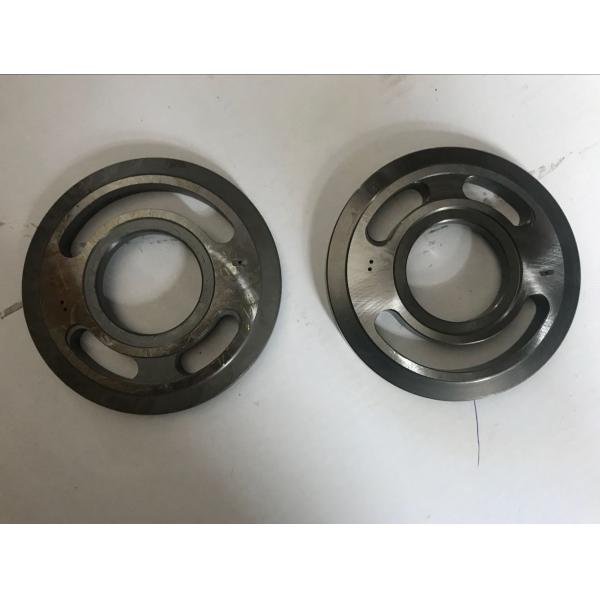

Valve plate L 1
Retainer plate 1
Ball guide 1
Drive shaft 1
spacer 1

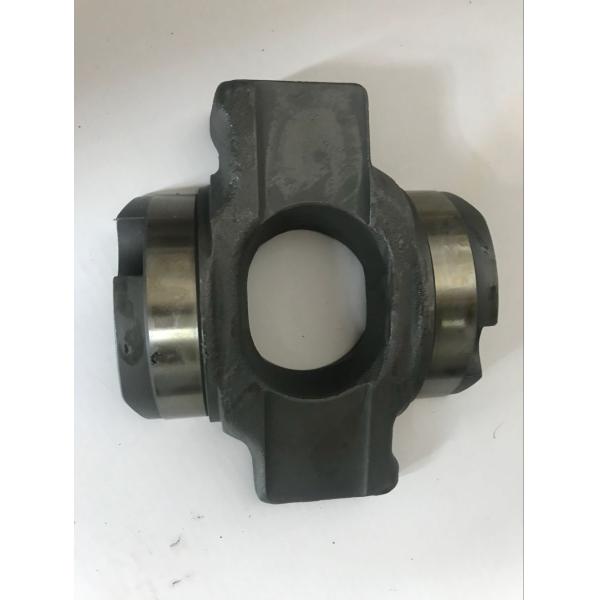

Swash Plate 1
Saddle Bearing 2
Bearing Seat 2
Long Rod 1
Push Rod 1
Socket Blot 2
Shaft Seal 1

1.Completely interchangeable with original

2.Very competitive price

3.Low-noise, high efficiency, high reliability, long life

4.Small size, high power density

5.Excellent oil absorption properties.

6.1 year of warranty

7.For engineering machinery, maritime and boat and industrial machinery etc.

8.For open-loop Swashplate axial piston pump.

9.Continuous working pressure up to 280bar, the instantaneous maximum working pressure up to 350bar.

10.Flow is proportional to drive speed and displacement, and can be achieved by adjusting the swashplate angle stepless variable

11.There are constant pressure, constant-power constant pressure, constant-voltage constant-flow and other control method, and the control response speed

12.Drive shaft can withstand the axial and radial loads

13.SAE and ISO mounting flange

14.For pass-axis structure, and for multi-loop system.

A11VLO TYPES:

Displacement (cm3) 130 145 190 260
Flow (L/min) 325 363 483 598
Power (kW) 190 211 281 349
Weight (kg) 72 73 104 138

A11VO40 Rexroth Piston Pump Parts Low Noise For Construction Machinery

A11VO40 Rexroth Piston Pump Parts Low Noise For Construction Machinery

A11VO40 Rexroth Piston Pump Parts Low Noise For Construction Machinery

Attribute Attribute Value
Model No Rexroth A11V Series
Types Replacement Parts for Hydraulic Piston Pumps
Function Completely Interchargeable with Original Pump
Produce Type OEM&ODM Accept
Universality International General Standard Parts

1.Completely interchangeable with original

2.Very competitive price

3.Low-noise, high efficiency, high reliability, long life

4.Small size, high power density

5.Excellent oil absorption properties.

6.1 year of warranty

7.For engineering machinery, maritime and boat and industrial machinery etc.

8.For open-loop Swashplate axial piston pump.

9.Continuous working pressure up to 280bar, the instantaneous maximum working pressure up to 350bar.

10.Flow is proportional to drive speed and displacement, and can be achieved by adjusting the swashplate angle stepless variable

11.There are constant pressure, constant-power constant pressure, constant-voltage constant-flow and other control method, and the control response speed

12.Drive shaft can withstand the axial and radial loads

13.SAE and ISO mounting flange

14.For pass-axis structure, and for multi-loop system.

Specifidieselions
Attribute Attribute Value
Material Cast/Ductile Iron,Steel,Bronze And So On
Parts Name

Cylinder Block,Piston,Retainer Plate,Ball Guide,Valve Plate,

Drive Shaft,And More Products You Need Contact Us
Processing Technic

Cutting,Lathe, Machining Center,Heat Treatment,

Grind,Honing,Burring And So On
Trademark H&E,Neutral Label, Or As The Clients Required
Applidieselion Main Pump Parts Of Or Other Construction Machinery
