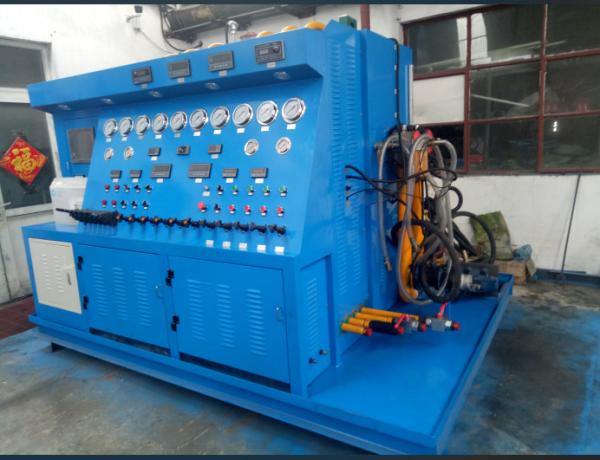

Hydraulic Pump Test Bench

The main system flow of the hydraulic motor test bench is 550L+550L, which allows for the testing of large hydraulic motors and pumps. This ensures that the test results are accurate and reliable. In addition, the test bench comes equipped with a printing function, which allows for the easy printing of test reports.
The hydraulic motor test bench comes with a 1-year warranty, giving customers peace of mind knowing that they are investing in a quality product. The test bench also has emergency stop protection, which ensures the safety of the operator during testing. This is an important feature, as hydraulic motor testing can be dangerous if proper safety measures are not in place.
Overall, the hydraulic motor test bench is a reliable and efficient tool for testing hydraulic motors and pumps. Its high-pressure loading range, large main system flow, printing function, and safety features make it a valuable investment for any business that relies on hydraulic machinery.

Features:

• Product Name: hydraulic test bench
• Rotation Speed: 0-3000 R/min Through Frequency Control
• Driving Power: 75-160KW
• Power: 160KW+22KW+2.2KW+0.8KW+0.8KW+0.75=187KW
• Oil Supply: Self Priming And Forced Oil Supply
• Flow: ≦ 500L/min

This hydraulic test bench is suitable for testing hydraulic motors and can be used as a hydraulic tester.

Technical Parameters:

Applications:

The YST380 hydraulic test bench is manufactured in the Shandong Province of China and is certified by both CE and ISO. It has a minimum order quantity of 1 unit and a supply ability of 1 unit per 50 days. The delivery time is 50 days and packaging is done with a film. The price for this hydraulic tester ranges from USD 20000 to USD 60000, and payment terms are T/T.
The YST380 hydraulic test bench has a total power of 187KW, which includes 160KW+22KW+2.2KW+0.8KW+0.8KW+0.75. It also comes equipped with emergency stop protection for added safety. The YST380 hydraulic test bench has a 1-year warranty and offers testing accuracy of ± 0.1% for pressure, ± 0.5% for flow rate, ± 0.5% for speed, and ± 1 ℃ for temperature. Its measurement ranges include 0-35Mpa for pressure, 5-400L/min for flow rate, 0-2200r/min for speed, and -20-100 ℃ for temperature.
The YST380 hydraulic test bench is suitable for a range of applications such as testing hydraulic components for industrial machinery, hydraulic cylinders for construction equipment, and hydraulic pumps for agricultural machinery. It is also ideal for testing hydraulic systems for automotive and aerospace applications. This hydraulic test bench is an essential tool for hydraulic maintenance and repair, research and development, and quality control.

Support and Services:

The hydraulic test bench product technical support and services include:
- Assistance with installation and setup
- Troubleshooting and problem resolution
- Repairs and maintenance
- Calibration and testing services
- Training and education for operators and technicians
- Technical documentation and resources
- Warranty and after-sales support

FAQ:

Q: What is the brand name of the hydraulic test bench?
A: The brand name of the hydraulic test bench is YiZhi.
Q: What is the model number of the hydraulic test bench?
A: The model number of the hydraulic test bench is YST380.
Q: What is the place of origin of the hydraulic test bench?
A: The hydraulic test bench is manufactured in Shandong Province of China.
Q: What certifications does the hydraulic test bench have?
A: The hydraulic test bench is CE and ISO certified.
Q: What is the minimum order quantity of the hydraulic test bench?
A: The minimum order quantity of the hydraulic test bench is 1 unit.
Q: What is the supply ability and delivery time of the hydraulic test bench?
A: The supply ability of the hydraulic test bench is 1 unit per 50 days, and the delivery time is also 50 days.
Q: How is the hydraulic test bench packaged?
A: The hydraulic test bench is packaged with film.
Q: What is the price of the hydraulic test bench and what are the payment terms?
A: The price of the hydraulic test bench ranges from USD 20000 to 60000, and the payment terms are T/T.
