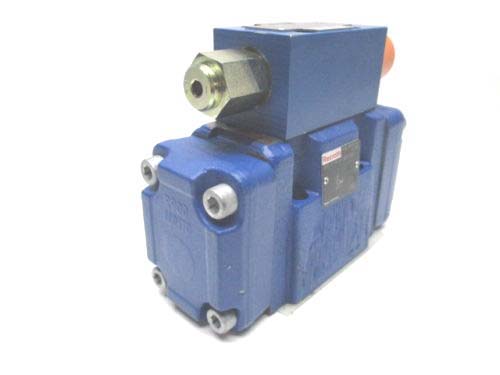

3DR10P Rexroth Hydraulic Valves , Piloted Pressure Reducing Valve
3DR10P Rexroth Hydraulic Valves , Piloted Pressure Reducing Valve
3DR10P Rexroth Hydraulic Valves , Piloted Pressure Reducing Valve
3DR10P Rexroth Hydraulic Valves , Piloted Pressure Reducing Valve
3DR10P Rexroth Hydraulic Valves , Piloted Pressure Reducing Valve
3DR10P Rexroth Hydraulic Valves , Piloted Pressure Reducing Valve
3DR10P Rexroth Hydraulic Valves , Piloted Pressure Reducing Valve
3DR10P Rexroth Hydraulic Valves , Piloted Pressure Reducing Valve
Specifications
Brand Name :
Rexroth
Model Number :
Rexroth Type 3DR10P4 3DR10P5 3DR10P6 3DR10P7 Piloted Pressure Reducing Valve
CertifiSAARion :
ISO9001
Place of Origin :
Germany
MOQ :
1
Price :
On request
Payment Terms :
T/T, Western Union
Supply Ability :
100PCS per month
Delivery Time :
7-10days
Packaging Details :
Standard paper box
Description

3DR10P Rexroth Hydraulic Valves , Piloted Pressure Reducing ValveRexroth Type 3DR10P Pressure Reducing Valve, Pilot-operated

Size 10
Component series 6X
Maximum operating pressure 315 bar
Maximum flow 120 l/min

Features
Valve for reduction (P to A) and limitation (A to T) of a system pressure
For subplate mounting, porting pattern according to DIN 24 340 form A, ISO 4401 andCETOP-RP 121 H, subplates (separate order)
4 pressure ratings
4 adjustment elements:
• Rotary knob
• Sleeve with hexagon and protective cap
• Lockable rotary knob with scale
• Rotary knob with scale

Technical data

General

Size 10
Weight kg 6
Installation position any
Direction of flow see symbol
Ambient temperature range °C -30 … +50

Hydraulic

Size 10
Nominal pressure bar 315
Maximum operating pressure Port P bar 315
Port A bar 315
Port Y separate and depressurized to the tank
Set pressure Minimum flow-dependent, see characteristic curves
Maximum bar 50
100
200
315
Maximum flow l/min 120
Hydraulic fluid see table
Hydraulic fluid temperature range NBR seals °C -30 … +80
FKM seals °C -20 … +80
Viscosity range mm²/s 10 … 800
Maximum admissible degree of contamination of the hydraulic fluid Class 9 according to NAS 1638. For this, we recommend using a filter with a minimum retention rate of β10 ≥ 75.
Hydraulic fluid ClassifiSAARion Suitable sealing materials Standards
Mineral oil HL, HLP FKM, NBR DIN 51524
Bio-degradable Insoluble in water HEES (synthetic esters) FKM VDMA 24568
HETG (rape seed oil) FKM, NBR
Soluble in water HEPG (polyglycols) FKM VDMA 24568
Other hydraulic fluids on request
1) Suitable for NBR and FKM seals
2) Suitable for FKM seals only

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.
Rexroth Type 3DR10P4 3DR10P5 3DR10P6 3DR10P7 Piloted Pressure Reducing Valves on Sale, Short lead time, Best price!!!
R900737366 3DR10P7-6X/200Y/00M
R900916657 3DR10P4-6X/100Y/00M
R900916657 3DR10P4-6X/100Y/00M
R900916659 3DR10P6-6X/100Y/00M
R900916660 3DR10P5-6X/200Y/00M
R900916661 3DR10P5-6X/315Y/00M
R900916663 3DR10P5-6X/100Y/00M
R900916663 3DR10P5-6X/100Y/00M
R900917784 3DR10P6-6X/315Y/00M
R900917785 3DR10P6-6X/200Y/00V
R900917786 3DR10P5-6X/100Y/00V
R900917786 3DR10P5-6X/100Y/00V
R900917787 3DR10P4-6X/200Y/00M
R900917787 3DR10P4-6X/200Y/00M
R900917788 3DR10P5-6X/200Y/00V
R900917790 3DR10P4-6X/315Y/00V
R900917790 3DR10P4-6X/315Y/00V
R900917791 3DR10P4-6X/315Y/00M
R900917791 3DR10P4-6X/315Y/00M
R900917792 3DR10P6-6X/200Y/00M
R900917793 3DR10P6-6X/100Y/00V
R900917794 3DR10P5-6X/315Y/00V
R900917795 3DR10P4-6X/100Y/00V
R900917795 3DR10P4-6X/100Y/00V
R900917796 3DR10P7-6X/100Y/00M
R900917797 3DR10P4-6X/200Y/00V
R900917797 3DR10P4-6X/200Y/00V
R900920718 3DR10P5-6X=50Y/00M=PL
R900920718 3DR10P5-6X=50Y/00M=PL
R900920719 3DR10P5-6X=200Y/00M=PL
R900920719 3DR10P5-6X=200Y/00M=PL
R900921663 3DR10P5-6X/50Y/00M
R900932005 3DR10P5-6X=100Y/00M=PL
R900932005 3DR10P5-6X=100Y/00M=PL
R900932324 3DR10P4-6X/50Y/00M
R900932324 3DR10P4-6X/50Y/00M
R900940485 3DR10P6-6X/100Y/00MSO23
R900940485 3DR10P6-6X/100Y/00MSO23
R900945112 3DR10P6-6X/50Y/00MSO23
R900945112 3DR10P6-6X/50Y/00MSO23
R900973873 3DR10P5-6X/50Y/00V
R901015252 3DR10P6-6X/50Y/00M
R901030861 3DR10P7-6X/200Y/00V
R901047460 3DR10P5-6X/100Y/00MSO189
R901047460 3DR10P5-6X/100Y/00MSO189
R901054790 3DR10P5-6X/100Y/00MSO63
R901054790 3DR10P5-6X/100Y/00MSO63
R901058305 3DR10P5-6X/200Y/00MSO189
R901058305 3DR10P5-6X/200Y/00MSO189
R901068395 3DR10P7-6X/100Y/00V
R901149319 3DR10P7-6X/315Y/00M
R901210096 3DR10P5-6X/315Y/00MSO63
R901210096 3DR10P5-6X/315Y/00MSO63
R901211014 3DR10P5-6X/200Y/00MSO63
R901211014 3DR10P5-6X/200Y/00MSO63
R901243542 3DR10P5-6X/50Y/00MSO63
R901243542 3DR10P5-6X/50Y/00MSO63
