High Pressure Type Variable Volume Vane Pump Hydraulic Low Vibration
High Pressure Type Variable Volume Vane Pump Hydraulic Low Vibration
High Pressure Type Variable Volume Vane Pump Hydraulic Low Vibration
High Pressure Type Variable Volume Vane Pump Hydraulic Low Vibration
High Pressure Type Variable Volume Vane Pump Hydraulic Low Vibration
High Pressure Type Variable Volume Vane Pump Hydraulic Low Vibration
High Pressure Type Variable Volume Vane Pump Hydraulic Low Vibration
High Pressure Type Variable Volume Vane Pump Hydraulic Low Vibration

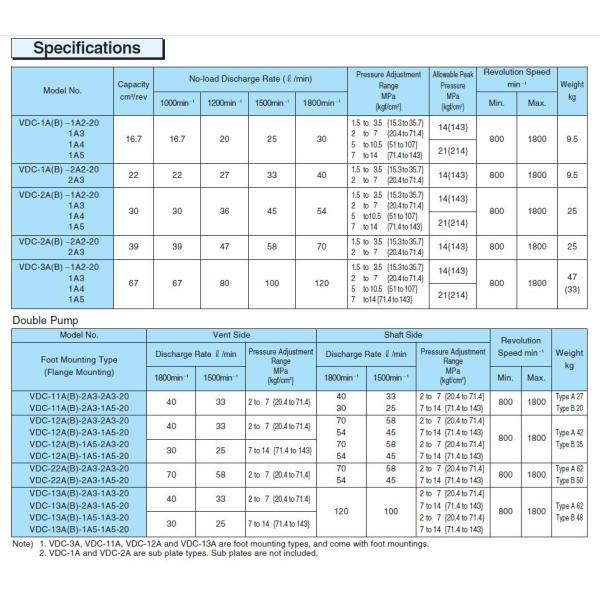

Specifications
Brand Name :
Nachi
Model Number :
Nachi VDC-1A-1A2-20 VDC-1B-1A4-20 VDC-2A-2A2-20 VDC-2B-1A4-20 VDC-11B-2A3-2A3-20 VDC-13A-1A5-1A3-20 VDC-13B-2A3-1A3-20 VDC-22B-2A3-2A3-20
CertifiSAARion :
ISO
Place of Origin :
Japan
MOQ :
1
Price :
On request
Payment Terms :
T/T, Western Union
Supply Ability :
100/Month
Delivery Time :
5-7days
Packaging Details :
Paper box or wooden carton
Description

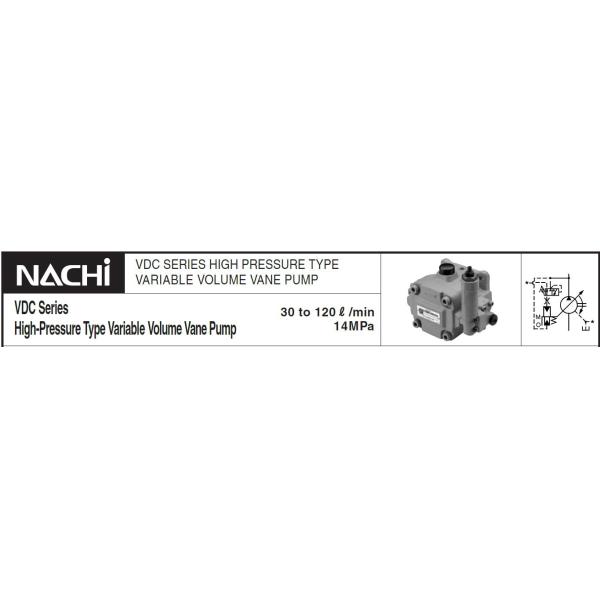

Nachi VDC Series High-Pressure Type Variable Volume Vane Pump Features:
1. Highly efficient and stable high-pressure operation
Innovative pressure control and pressure balance mechanisms combine with an original 3-point ring support system dramatically improves high-pressure operation. The result is outstanding performance at high pressures up to 14MPa.
2. Low vibration and noise
A number of innovative new mechanisms are adopted to minimize vibration and noise. In particular, a 3-point support system is used for the control piston and bias piston to increase ring stability. This minimizes ring vibration and delivers quiet
operation.
3. Outstanding response, high-precision operation
An innovative new ring stopper eliminates excessive ring displacement and improves response. The result is high precision operation at all times, including during starts, stops, and load changes.
4. Precise characteristics for a stable discharge rate
A revolutionary new pressure compensator type pressure control mechanism ensures a highly stable fixed discharge rate, even in the high pressure range.
5. High efficiency operation with minimal power loss
New mechanical innovations minimize power loss, especially at full cutoff.
6. Simplified maintenance and handling
Pressure adjusting and discharge rate adjusting mechanisms are loSAARed on the same side of the pump for simplified maintenance and handling.
High Pressure Type Variable Volume Vane Pump Hydraulic Low Vibration
High Pressure Type Variable Volume Vane Pump Hydraulic Low Vibration

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Nachi VDC Series High-Pressure Type Variable Volume Vane Pump​s on Sale, Short lead time, Best price!!!

VDC-11A-2A3-1A5-20
VDC-11A-2A3-2A3-20
VDC-11B-2A3-1A5-20
VDC-11B-2A3-2A3-20
VDC-12A-1A5-1A5-20
VDC-12A-1A5-2A3-20
VDC-12A-2A3-1A5-20
VDC-12A-2A3-2A3-20
VDC-12B-1A5-1A5-20
VDC-12B-1A5-2A3-20
VDC-12B-2A3-1A3-20
VDC-12B-2A3-1A5-20
VDC-12B-2A3-2A3-20
VDC-13A-1A5-1A3-20
VDC-13A-1A5-1A5-20
VDC-13A-2A3-1A3-20
VDC-13A-2A3-1A5-20
VDC-13B-1A5-1A3-20
VDC-13B-1A5-1A5-20
VDC-13B-2A3-1A3-20
VDC-13B-2A3-1A5-20
VDC-1A-1A2-20
VDC-1A-1A3-20
VDC-1A-1A4-20
VDC-1A-1A5-20
VDC-1A-2A2-20
VDC-1A-2A3-20
VDC-1B-1A2-20
VDC-1B-1A3-20
VDC-1B-1A4-20
VDC-1B-1A5-20
VDC-1B-2A2-20
VDC-1B-2A3-20
VDC-1B-2A3-Q11-U-6064C
VDC-22A-2A3-1A5-20
VDC-22A-2A3-2A3-20
VDC-22B-2A3-1A5-20
VDC-22B-2A3-2A3-20
VDC-2A-1A2-20
VDC-2A-1A3-20
VDC-2A-1A4-20
VDC-2A-1A5-20
VDC-2A-2A2-20
VDC-2A-2A3-20
VDC-2B-1A2-20
VDC-2B-1A3-20
VDC-2B-1A4-20
VDC-2B-1A5-20
VDC-2B-2A2-20
VDC-2B-2A3-20
VDC-3A-1A2-20
VDC-3A-1A3-20
VDC-3A-1A4-20
VDC-3A-1A5-20
VDC-3B-1A2-20
VDC-3B-1A3-20
VDC-3B-1A4-20
VDC-3B-1A5-20
