Specifications
Brand Name :
Rexroth
Model Number :
AA10VO28ED73/31R-VSC12N00P AA10VO28ED72/31R-VSC12N00P AA10VO28ED72/31R-VSC12K68P AA10VO28ED72/31R-VSC11N00H
CertifiSAARion :
ISO9001
Place of Origin :
Germany
MOQ :
1
Price :
$750.00/PC
Payment Terms :
T/T, Western Union
Supply Ability :
10PCS in 7-10days
Delivery Time :
7-10days
Packaging Details :
Carton, Wooden box
Material No. :
R902486610
Type No. :
ALA10VO28ED72/31R-VSC12N00P
Description

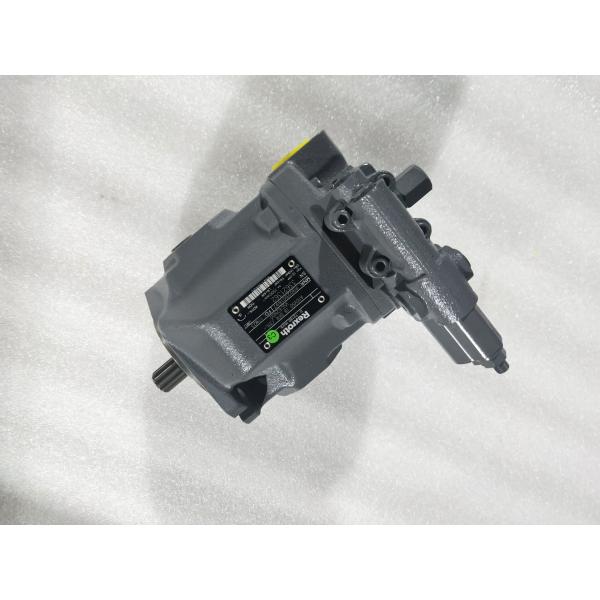

Rexroth Axial piston variable pump A10VO series 31

All-purpose medium pressure pump
Size 18 … 140
Nominal pressure 280 bar
Maximum pressure 350 bar
Open circuit


Features


Through drive for mounting of further pumps up to same nominal size
Low operating noise
Long service life
Controls with short response times
Excellent suction characteristics
2 drain ports
Swashplate design

Values

Size 18 28 45 71 88 100 140 45 71 100 140
Version Standard High speed
Displacement
geometric, per revolution		 Vg max cm³ 18 28 45 71 88 100 140 45 71 100 140
Nominal pressure pnom bar 280 280 280 280 280 280 280 280 280 280 280
Maximum pressure pmax bar 350 350 350 350 350 350 350 350 350 350 350
Maximum speed 1) at Vg max nnom rpm 3300 3000 2600 2200 2100 2000 1800 3000 2550 2300 2050
Flow at Vg max and nnom qV nom l/min 59 84 117 156 185 200 252 135 178 230 287
at Vg max and n = 1500 rpm qV 1500 l/min 27 42 68 107 132 150 210 68 107 150 210
Power at qV nom and pnom P kW 30 39 55 73 86 93 118 63 83 107 134
at qV 1500 and pnom P 1500 kW 12.6 20 32 50 62 70 98 32 50 70 98
Torque at Vg max and pnom M Nm 80 125 200 316 392 445 623 200 316 445 623
Weight (approx.) m kg 12.9 18 23.5 35.2 35.2 49.5 65.4 23.5 35.2 49.5 65.4

SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.

Rexroth Axial Piston Variable Pump A10VO28ED72 Series Model List:

R902501556 AA10VO28ED71/31R-VSC12K01P
R902537619 AA10VO28ED71/31R-VSC12K01PE
R902488041 AA10VO28ED71/31R-VSC12N00P
R902496846 AA10VO28ED71/31R-VSC12N00P-S3523
R902492167 AA10VO28ED71/31R-VSC12N00P-SO805
R902466251 AA10VO28ED71/31R-VSC62K01P
R902401429 AA10VO28ED71/31R-VSC62K68T
R902426002 AA10VO28ED72/31R-PRC12K68H
R902431639 AA10VO28ED72/31R-PRC12K68H-SO413
R902412971 AA10VO28ED72/31R-PSC11N00T-SO413
R902434283 AA10VO28ED72/31R-PSC11N00TE
R902443444 AA10VO28ED72/31R-PSC12K01H
R902445569 AA10VO28ED72/31R-PSC12N00H
R902564004 AA10VO28ED72/31R-VRC11N00P-S1457
R902451117 AA10VO28ED72/31R-VSC11N00H
R902463652 AA10VO28ED72/31R-VSC11N00H-S2302
R902454036 AA10VO28ED72/31R-VSC11N00T
R902485766 AA10VO28ED72/31R-VSC12K01H-S3126
R902565858 AA10VO28ED72/31R-VSC12K01P
R902493871 AA10VO28ED72/31R-VSC12K01P-S1711
R902490905 AA10VO28ED72/31R-VSC12K01P-S1743
R902565944 AA10VO28ED72/31R-VSC12K01P-SO200
R902515534 AA10VO28ED72/31R-VSC12K01PESO200
R902467862 AA10VO28ED72/31R-VSC12K01PESO200
R902486609 AA10VO28ED72/31R-VSC12K68P
R902456849 AA10VO28ED72/31R-VSC12N00P
R902550238 AA10VO28ED72/31R-VSC12N00P
R902486611 AA10VO28ED72/31R-VSC12N00P
R902489726 AA10VO28ED73/31R-VCC12N00T-S1574
R902421283 AA10VO28ED73/31R-VCC12N00T-S1574
R902420841 AA10VO28ED73/31R-VSC12K68T-S1448
R902489717 AA10VO28ED73/31R-VSC12K68T-S1448
R902446889 AA10VO28ED73/31R-VSC12N00-S2024
R902489728 AA10VO28ED73/31R-VSC12N00-S2024
R902541557 AA10VO28ED73/31R-VSC12N00P
R902562880 AA10VO28ED73/31R-VSC12N00P-S3479
