Various Liquids And Gases Stainless Steel Quick Coupling
Various Liquids And Gases Stainless Steel Quick Coupling
Various Liquids And Gases Stainless Steel Quick Coupling
Various Liquids And Gases Stainless Steel Quick Coupling
Various Liquids And Gases Stainless Steel Quick Coupling
Various Liquids And Gases Stainless Steel Quick Coupling
Various Liquids And Gases Stainless Steel Quick Coupling
Various Liquids And Gases Stainless Steel Quick Coupling
Specifications
Brand Name :
carterberg
Model Number :
CB-9
Certification :
IATF16949
Place of Origin :
Shanghai, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
5000~20000 pc/month
Delivery Time :
7-20 work days
Packaging Details :
carton
Material :
Stainless Steel
Thread :
NPT
Size :
1/8" ,1/4",3/8''
Application :
Chemical
Pressure :
103bar
Connection :
male
Name :
Quick connect Couplings
Packing :
Carton
Description

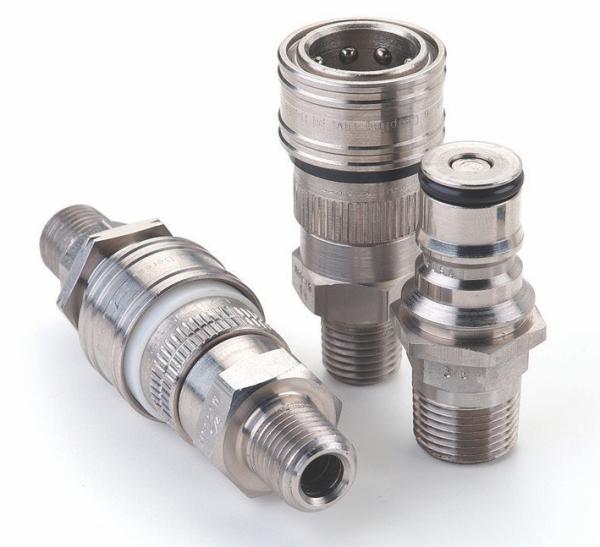

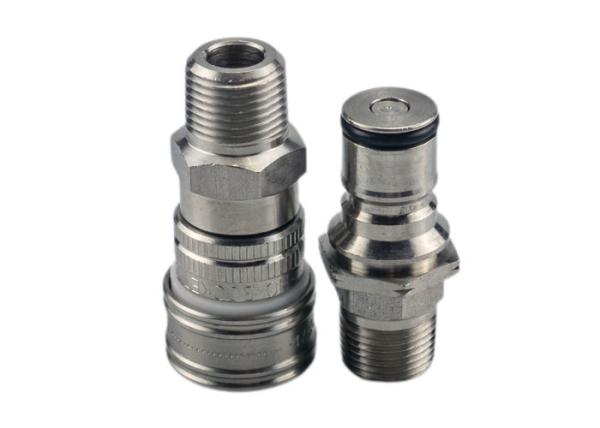

Used with various liquids and gases Stainless Steel Quick Coupling

Applications

• Chemical • Food and Beverage • Military • Aerospace

Features

  1. Ball Lock
  2. Proprietary interchange with all stainless steel construction
  3. Female/Socket halves available with 90° connections
  4. Standard body material: Stainless steel
  5. Standard seal material: Buna-N
  6. Compatible with HANSEN 2HKIG Series.

CB-9-A Series stainless steel couplings can be used with various liquids and gases. They are functionally identical, but do not interchange. They can be used where it is necessary to avoid crossing lines.

Various Liquids And Gases Stainless Steel Quick Coupling

Body Size PARTNO. Thread A B Hex
1/4" CB-S1L-9MN-A 1/8-27 2.18 1.06 0.81
1/4" CB-S2L-9MN-A 1/4-18 2.31 1.06 0.81
1/4" CB-S3L-9MN-A 3/8-18 2.31 1.06 0.81
1/4" CB-S7L-9MN-A 7/16-20* 2.27 1.06 0.81

Various Liquids And Gases Stainless Steel Quick Coupling

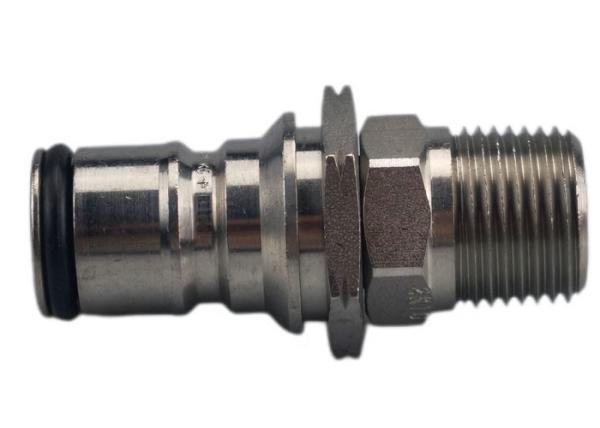

Body Size PARTNO. Thread C D Hex
1/4" CB-P2L-9MN-A 1/4-18 1.98 1.01 0.69
1/4" CB-P3L-9MN-A 3/8-18 1.98 1.01 0.69

Our Services:

1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
