Industrial 1 Inch 3000PSI High Pressure Quick Connect
Industrial 1 Inch 3000PSI High Pressure Quick Connect
Industrial 1 Inch 3000PSI High Pressure Quick Connect
Industrial 1 Inch 3000PSI High Pressure Quick Connect
Industrial 1 Inch 3000PSI High Pressure Quick Connect
Industrial 1 Inch 3000PSI High Pressure Quick Connect
Industrial 1 Inch 3000PSI High Pressure Quick Connect
Industrial 1 Inch 3000PSI High Pressure Quick Connect
Industrial 1 Inch 3000PSI High Pressure Quick Connect
Industrial 1 Inch 3000PSI High Pressure Quick Connect
Industrial 1 Inch 3000PSI High Pressure Quick Connect
Industrial 1 Inch 3000PSI High Pressure Quick Connect
Specifications
Brand Name :
carterberg
Model Number :
CB-5
Certification :
IATF16949
Place of Origin :
Shanghai, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
5000~20000 pc/month
Delivery Time :
7-20 work days
Packaging Details :
carton
Material :
Zinc-plated steel
Rated Pressure :
3000
Thread :
Female
Technics :
Machinning
Size :
3/4, 1, 1-1/4
Temperature :
-20℃to+120℃
Standard seal material :
NBR
Compatible with :
HANSEN W26000 series
Description

Thread type Industrial applications Steel hydraulic quick coupling Threaded Quick Connect

CB-5 Series couplings have nominal diameters no greater than 25 mm. They are designed and manufactured under Article 3.3 of the European Pressure Equipment Directive 97/23 EC.

Applications

All industrial and severe applications, particularly public works.

Standard Materials

  • Zinc-plated steel
  • Seals: NBR, Viton, EPDM

Features

  1. Double shut-off couplings
  2. Locking by coarse trapezoidal screw-thread sleeve (resistance to shock loads and speed of connection)
  3. Lugs on sleeve ease use in difficult operating conditions
  4. Metal-to-metal sealing in disconnected position
  5. Can be connected against residual pressure
  6. Compatible with HANSEN W26000 series.

Industrial 1 Inch 3000PSI High Pressure Quick Connect

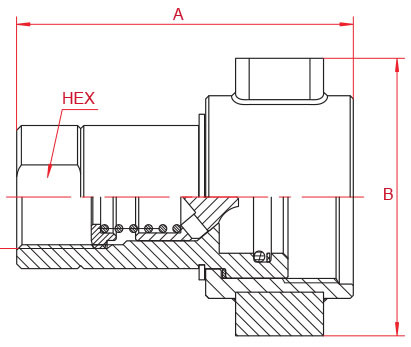

Body Size PARTNO. Thread A B HEX
3/4" CB-S6S-5FN-B 3/4-14 97 79 35
1" CB-S8S-5FN-B 1-11 1/2 108 89 41

Industrial 1 Inch 3000PSI High Pressure Quick Connect

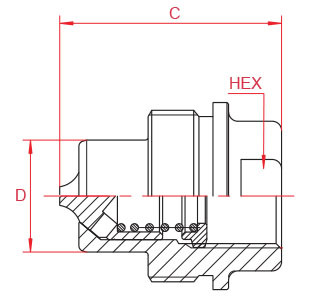

Body Size PARTNO. Thread C D HEX
3/4" CB-P6S-5FN-B 3/4-14 63 29 35
1" CB-P8S-5FN-B 1-11 1/2 71 36 41
