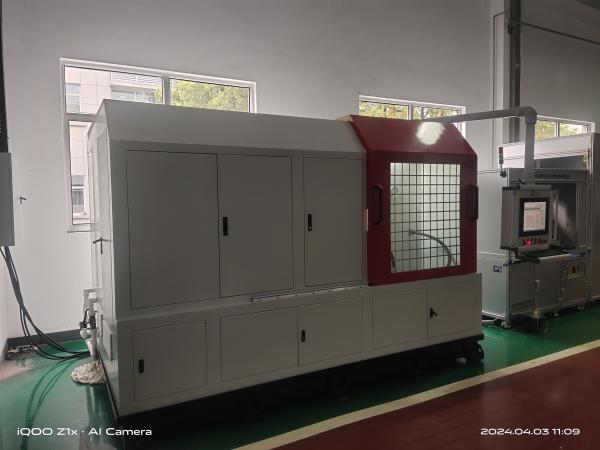

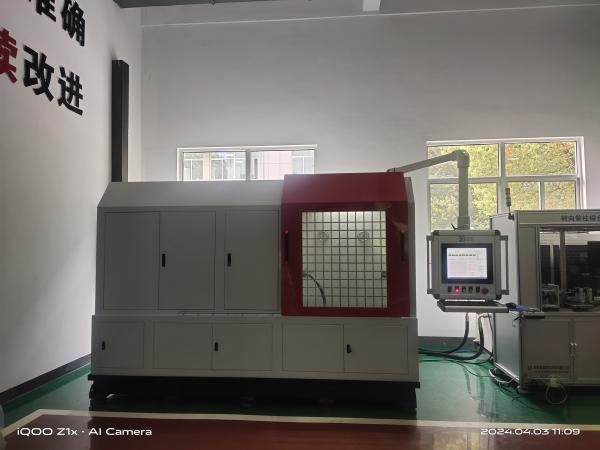

Computerized Hydraulic Motor Test Bench 110KW Hydraulic Piston Pump Test Stand
Computerized Hydraulic Motor Test Bench 110KW Hydraulic Piston Pump Test Stand
Computerized Hydraulic Motor Test Bench 110KW Hydraulic Piston Pump Test Stand
Computerized Hydraulic Motor Test Bench 110KW Hydraulic Piston Pump Test Stand
Computerized Hydraulic Motor Test Bench 110KW Hydraulic Piston Pump Test Stand
Computerized Hydraulic Motor Test Bench 110KW Hydraulic Piston Pump Test Stand
Computerized Hydraulic Motor Test Bench 110KW Hydraulic Piston Pump Test Stand
Computerized Hydraulic Motor Test Bench 110KW Hydraulic Piston Pump Test Stand
Specifications
Brand Name :
DZ
Model Number :
DZ-003
Place of Origin :
China (Mainland)
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
50 sets per month
Delivery Time :
30-45 working days
Packaging Details :
wooden case
Flow test range :
Main circuit 15-600L/min 2 channels
Recovery pump sets :
The flow rate is 26L/min
Temperature :
Water cooling and heat dissipation
Control & Collection :
PLC control, computer acquisition
Description

110KW 160KW Hydraulic Piston Pump Test Stand,Computerized Hydraulic Motor Test Bench

Features

The hydraulic comprehensive test bench for production design and manufacture has complete functions, simple operation, compact structure, easy operation, hydraulic components for construction equipment, and necessary testing equipment for hydraulic pump, hydraulic motor, hydraulic valve and cylinder repair.

Technical Parameter

Total power
75KW,90KW,110KW,132KW,160KW,315kw,350kw
Range of test pressure
0~42MPa
Range of flow rate
0~500L/min
Range of rotational speed
0~3000r/min
Composition
Dynamic system, hydraulic control system, hydraulic oil filter temperature control system and electric control system, data acquisition test system
Applicable area
Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields.

Hydraulic pump test bench, hydraulic pump maintenance test bench for concrete equipment, hydraulic motor test bench, hydraulic valve test bench, hydraulic cylinder test bench, hydraulic comprehensive test bench, hydraulic component test bench,Hydraulic test bench, hydraulic pump repair test bench.


Pump test items

No. Testing project Remark
1 Displacement test The test curve is displayed
2 Volumetric efficiency test The test curve is displayed
3 Total efficiency test Displays the curves
4 Variable characterization test The test curve is displayed
5 Pump control valve setting Manual setting

Description of the main sensor configuration of the test system:

No Parameter Position/Function Measuring range and accuracy Remark
1 Primary loop traffic Measuring range 15-600L/min, measurement accuracy: ±0.5%, 2 sets of Hydrotechnik turbine flowmeters
2 Main pressure AB port 600 bar with 0.25% accuracy 5 sets of pressure sensors
3 Oil pressure control Pilot pump P port
250 bar, with 0.25% accuracy
4 Pilot and make-up oil pressure 100 bar, with 0.25% accuracy
5 Torque sensor 2000NM, ±0.2% accuracy
6 Temperature 150℃, with 0.5% accuracy
7 Electrically controlled PLC control system Siemens
8 Electrically controlled Industrial control acquisition system Nuojiada all-in-one machine

Computerized Hydraulic Motor Test Bench 110KW Hydraulic Piston Pump Test Stand

Why choose us?


Changzhou Dazhuo Testing Equipment Co., Ltd has a number of system design, structural design, software design engineers, in the design and development, manufacturing, installation and commissioning of hydraulic test systems and sales services have a strong comprehensive strength. In recent years, the core team has successively supported Caterpillar, Italy OMFB, Bosch Rexroth (Lozon), SMS (SMS), Japan Shimadzu, Zhejiang Haihong, Shanghai Qiangtian and other well-known domestic and foreign host and hydraulic manufacturers, and has accumulated rich experience.

If you need to know more about the specific solution, or have any technical questions you would like to discuss with us, please feel free to contact us.

Support and Services:

Hydraulic Test Benches Technical Support and Service

At our Company, we provide comprehensive technical support and service for our Hydraulic Test Benches online. Our expert technicians are available to answer any questions you may have and provide remote technical support for optimal performance.

Technical Support

We offer technical support for our Hydraulic Test Benches through our experienced customer support team online. Our team is available to answer any questions you may have about operation. Additionally, our team can provide guidance on optimal performance and provide best practices for usage.
