Description:

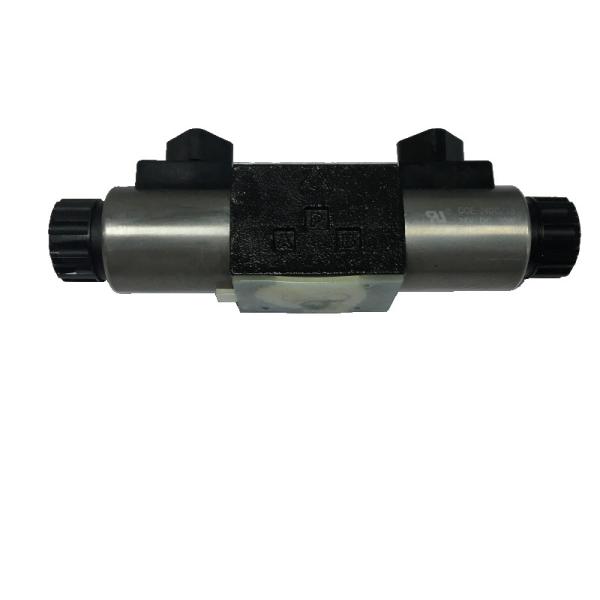

Atos Servo Valve SDHE-0713 DC10S is a high performance solenoid operated directional valve manufactured by Atos Italy, belonging to the SDHE series. It is a direct-acting design with two- or three-position reversing function. The movement of the spool is controlled by energising and de-energising the solenoid, thus reversing, switching and disconnecting the oil flow in the hydraulic system. The solenoid valves are of wet threaded pipe design, equipped with integrated manual control pins and support DC power supply.

Application areas:

Metallurgical industry: used to control the direction of oil flow in hydraulic systems for automated operation of equipment.
Mechanical industry: used in the hydraulic system of mechanical equipment to achieve the connection, disconnection and conversion of the oil circuit.
Chemical industry: used to control the operation of equipment such as reactors and stirrers.
Petroleum industry: used for oil flow control in the process of oil extraction and processing.
Power industry: used in the hydraulic system of electric power equipment, to achieve the start, stop and regulation of equipment.

Industrial automation: It has a wide range of applications in the field of industrial automation, including but not limited to metallurgy, machinery, chemical, petroleum, electric power and other industries. For example, in the metallurgical industry, it is used to control the direction of oil flow in the hydraulic system to realise the automatic operation of the equipment; in the machinery industry, it is used in the hydraulic system of the mechanical equipment to realise the functions of connecting, disconnecting and switching of the oil circuit.
Other fields: It can also be used in devices for winding and unwinding that have strict requirements on the force of the material, such as wire rapping devices or optical fibre pulling equipment.

Advantages:

Compact structure: new electro-hydraulic integrated design, occupies little space, suitable for installation in compact hydraulic systems.
High reliability: The wet solenoid design improves the reliability and service life of the solenoid, while all moving parts are protected and lubricated by hydraulic oil.
Easy maintenance: coils are interchangeable with each other and can be replaced without tools, reducing maintenance costs.
High performance: Maximum flow rate up to 80 litres/minute and maximum working pressure of 350bar, suitable for a wide range of working environments.
Energy saving and environmental protection: low power consumption, in line with energy saving requirements.
Low cost: Plastic encapsulated coil design makes coil replacement easier and faster. The coils are interchangeable and can be easily replaced without tools, reducing maintenance costs.
Strong applicability: Different electrical/electronic connectors can be selected according to the application and electrical installation interface, which improves the applicability and flexibility of the solenoid valve.
Excellent performance: Electronic closed-loop feedback with high precision, high response and high reliability enables fast, smooth and precise control.
Energy saving and environmental protection: power consumption is usually low, in line with the requirements of energy saving and environmental protection.
