Description:

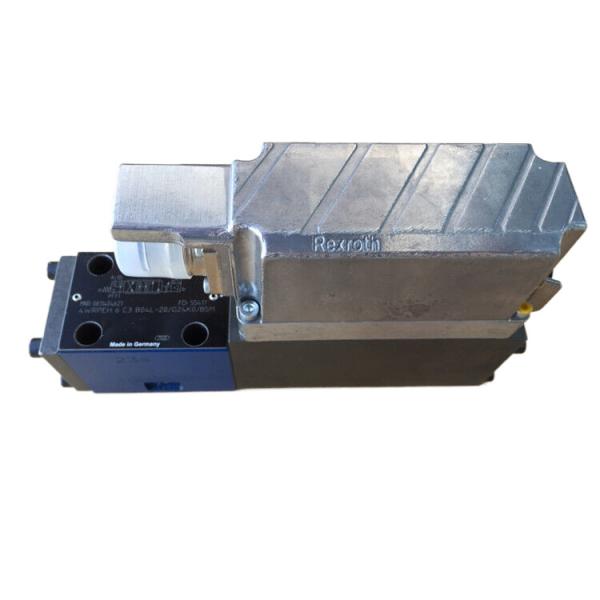

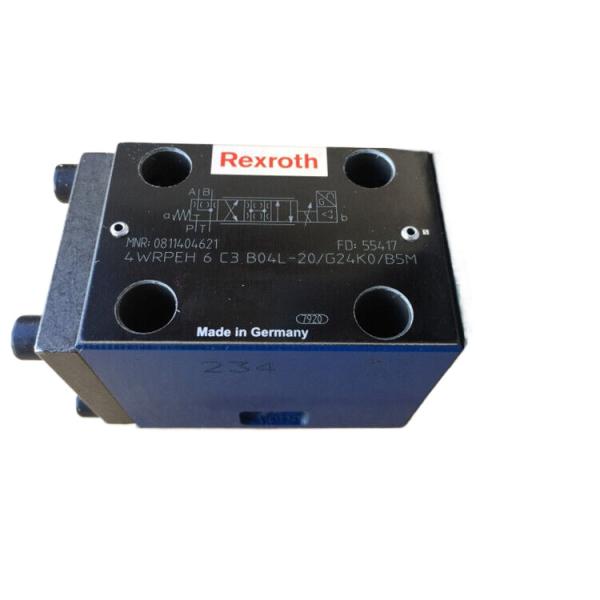

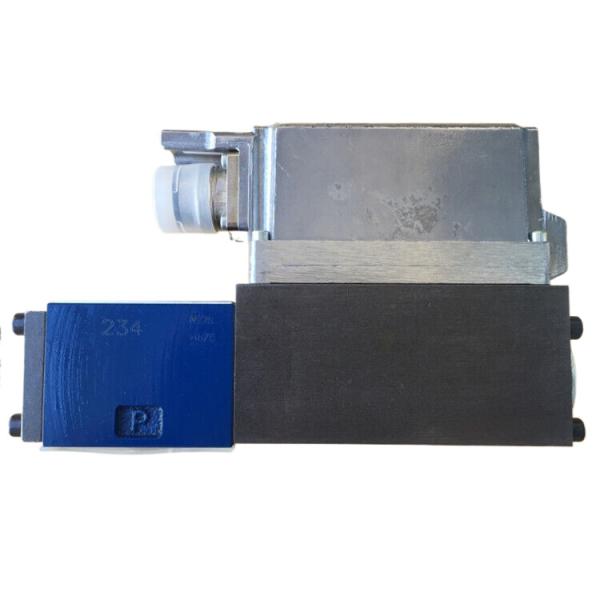

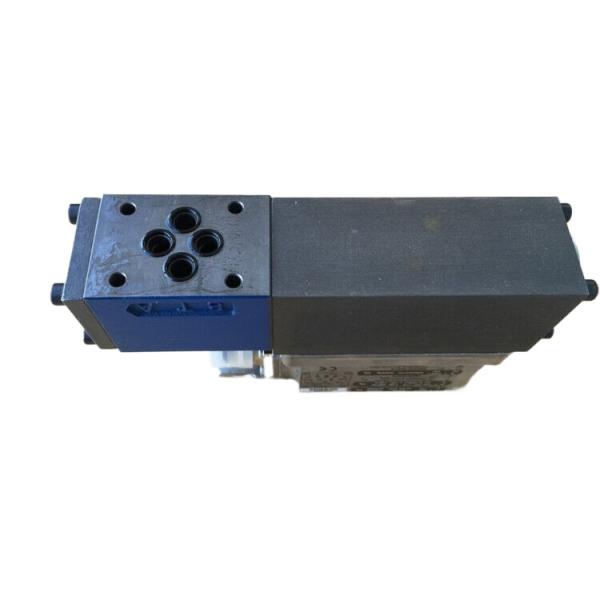

4WRPEH6C3B04L-20 G24K0 B5M is a direct-acting, four-position, four-way directional control valve manufactured by Rexroth, Germany, featuring electrical position feedback and integrated electronics (OBE), calibrated at the factory. This proportional valve is known for its excellent performance in terms of working pressure and rated volume flow rate up to 315 bar and rated volume flow rate ranging from 2.4 to 40 litres/minute for a wide range of hydraulic systems.4WRPEH6C3B04L-20 G24K0 B5M has a linear flow characteristic or a double gain characteristic curve with a selectable position at closing, enabling precise adjustment of the volume flow rate in the direction and size. The integrated electronics (OBE) of this type of proportional valve can compare the set command value with the actual position value, and if there is any deviation, it will activate the corresponding coil to adjust the position of the control screw, so as to achieve proportional control of the flow rate/control screw cross-section in accordance with the command value. 4WRPEH6C3B04L-20 G24K0 B5M is designed for base plate mounting, with a hole diagram in accordance with ISO 4401, providing high response speed and precise control, and is suitable for use in a variety of applications. Response speed and precise control for applications requiring accurate force, position, speed, and pressure regulation.

Areas of Application:

1. 4WRPEH6C3B04L-20 G24K0 B5M Rexroth proportional valves are widely used in the field of CNC machine tools, providing precise flow control and directional adjustment to ensure the flexibility and accuracy of machine operation.

2. This type of proportional valve is also widely used in the aerospace field, as well as in the hydraulic equipment of ceramics and steel mills, demonstrating its adaptability and reliability in different industrial environments.

3. 4WRPEH6C3B04L-20 G24K0 B5M proportional valves are used in die-casting and plastics machinery to achieve fine adjustment, ensuring the stability and efficiency of the production process.

4. 4WRPEH6C3B04L-20 G24K0 B5M proportional valves are also suitable for use in blow moulding machines, where precise control of the hydraulic system is required during the production process.

5. 4WRPEH6C3B04L-20 G24K0 B5M servo valve is suitable for closed-loop control systems requiring electrical position feedback due to its electro-hydraulic linkage drive and integrated electronics, making it an important component in industrial automation and smart factories.

Advantages:

1. 4WRPEH6C3B04L-20 G24K0 B5M proportional valves are known for their reliability and have a proven and robust design that maintains a safe control screw position in the event of a power failure.

2. This model of proportional valve is energy efficient, requires no oil priming, and the control screw and sleeve are servo quality, ensuring high quality control performance.

3. 4WRPEH6C3B04L-20 G24K0 B5M proportional valves are responsive, with low hysteresis, high responsiveness and precise control, suitable for position, speed and pressure control applications.

4. This model of proportional valve has an optional IO-Link interface, providing additional flexibility and convenience for easy integration into smart factory and automation systems.

5. 4WRPEH6C3B04L-20 G24K0 B5M is designed for a wide range of mounting and connection sizes, with standardised interfaces for ease of installation and maintenance, and also offers good EMC test results.
