Description:

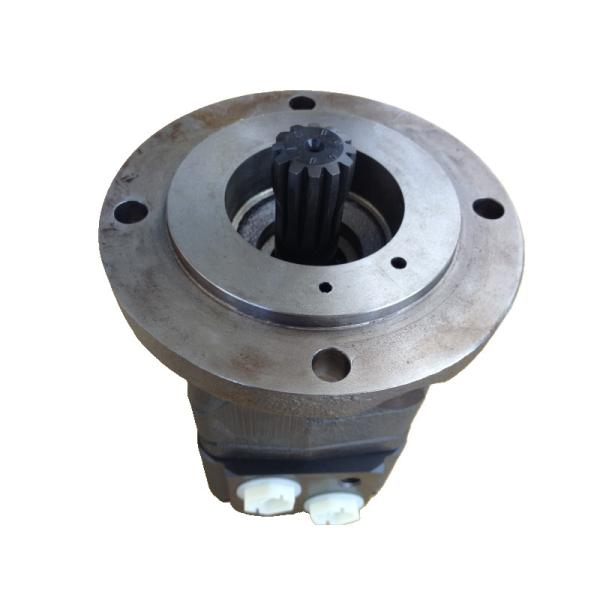

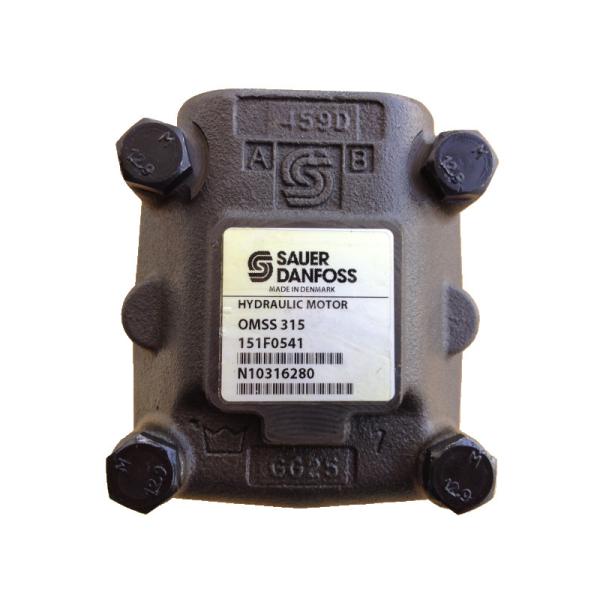

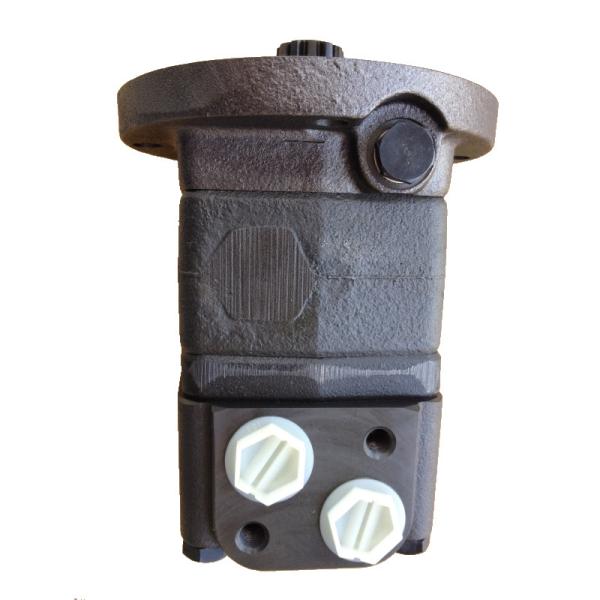

Danfoss Hydraulic Motor OMSS315151F0541 is a kind of hydraulic motor produced by Danfoss. Danfoss is a world-renowned manufacturer of industrial automation and hydraulic systems for a wide range of industrial applications. The motor has a geometric displacement of 314.9 cm³ (19.22 in³), a maximum continuous output speed of 240 rpm and a maximum intermittent output speed of 285 rpm, a maximum continuous output torque of 825 Nm (7300 lbf-in) and a maximum intermittent output torque of 1000 Nm (8850 lbf-in). It has no output shaft, has a 1/2 BSP interface, and has a tapered roller bearing to support the output shaft to withstand static and dynamic radial loads.

Application Areas:

Engineering machinery: It is suitable for excavators, loaders, bulldozers and other equipment, used to drive walking, slewing and other mechanisms.
Agricultural machinery: can be used in tractors and other agricultural equipment, for the operation of agricultural machinery to provide power.
Material handling and lifting equipment: in forklifts, cranes and other equipment, used to drive the lifting arm, winches and other components.
Forestry machinery: to provide power for forestry logging, transportation and other equipment.
Lawn and turf equipment: used in equipment such as lawn mowers to drive their traveling and operating mechanisms.
Machine tools and fixed equipment: can be used in the hydraulic drive system of machine tools.
Marine equipment: in the hydraulic system of ships, to provide power for the rudder, anchor and other equipment.
Agricultural machinery: such as tractors, harvesters, etc., used to drive a variety of agricultural equipment to achieve efficient farm operations.
Construction machinery: such as excavators, loaders, etc., to provide power for these devices, to achieve digging, loading and other actions.
Industrial automation: in various industrial production lines, used to drive conveyor belts, agitators and other equipment, to realize the material conveying and mixing and other processes.
Ship and ocean engineering: used to drive the ship's propeller, rudder and other equipment to realize the ship's navigation and steering.
Renewable energy: such as wind power generation, solar power generation and other fields, used to drive the yaw system of wind turbine, solar tracking system, etc.

Advantages:

High torque output: High starting torque and high continuous torque to meet the start-up and running requirements of heavy-duty equipment.
High efficiency: Extremely low hydraulic and mechanical losses maintain high efficiency even at high pressures.
Smooth operation: Smooth operation over the entire speed range and stable torque output even at low speeds.
High load carrying capacity: The tapered roller bearing design enables it to withstand high radial and axial loads.
Compact design: compact structure, suitable for installation in equipment with limited space.
Adaptable: Suitable for both open and closed hydraulic systems, able to adapt to a wide range of hydraulic fluids.
High efficiency and energy saving: adopting advanced hydraulic technology with high efficiency, which can effectively reduce energy consumption.
High reliability: after strict quality inspection and testing, it has good reliability and stability, and can operate stably for a long time under the harsh working environment.
Large torque: with large torque output, it can meet the needs of various heavy-duty working conditions.
Wide speed range: stepless speed regulation can be realized in a wide speed range to meet the needs of different working scenarios.
Compact structure: adopting compact design, small volume and light weight, easy to install and maintain.

Strong environmental adaptability: with good corrosion resistance and anti-pollution ability, it can adapt to various harsh working environments.
High control precision: precise speed and torque control can be realized through advanced hydraulic control system to meet the high precision working requirements.
