Orbital Cast Iron 6K/ KM6 Hydraulic Wheel Motor High Torque 970rpm
Orbital Cast Iron 6K/ KM6 Hydraulic Wheel Motor High Torque 970rpm
Specifications
Brand Name :
KERSTERN
Model Number :
6000 KM6
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
USD1
Payment Terms :
L/C, T/T
Supply Ability :
10000 set per month
Delivery Time :
15 days after received your payment
Packaging Details :
Standard Package
Material :
Cast iron
Specification :
50-500
Flow :
50-75
Speed :
128-970
Pressure :
9-17.5
Torque :
126-580
Type :
Hydraulic motor
Place of origin :
China
Motor shaft :
Straight, splined and tapered
Motor power :
Hydraulic oil
Structural style :
Orbital
Processing :
Forging&cutting
Motor application :
Construction machine and agricultural machine
Motor flange :
Square and rhombus flange
Package :
Standard package
Warranty :
One year
Description

Cast Iron High Speed Hydraulic Motor 6000 series KM6 Eaton Replacement high torque high speed dc motor

KM6 motor

High working pressure, maximum output torque is greater than that of BM5 motor.
Advanced disc flow structure design, low speed performance is good.
High volume efficiency, and wear automatic compensation function.
Double-row tapered needle roller bearings can bear large radial force and are used in heavy load driving applications.

Main Specification

Displacement (ml/r) 195 245 310 395 490 625 800 985

flow

(LPM)

 cont. 150 150 150 150 150 150 150 150
int. 170 210 225 225 225 225 225 225

speed

(RPM)

 cont. 775 615 485 383 307 241 184 153
int. 866 834 698 563 454 355 276 230

pressure

(MPA)

 cont. 20.5 20.5 20.5 20.5 17 14 12 12
int. 31 31 31 31 27.5 17 14 14

torque

(N*M)

 cont. 575 735 930 1169 1215 1330 1380 1570
int. 860 1180 1335 1655 1885 1380 1650 1875

output power

(KW)

 cont. 34 34.5 35 31 29 25 22 20
int. 40 40 40 35 35 27.5 27 25


Note: 1.Continuous data: The Max. Value of operating motor continuously. 2.Intermittent Data: The Max. Value of operating motor in 6 seconds per minute. 3.A simultaneous max. RPM and max. pressure is not recommended.

4.The Conversion Factors is on the page 4, consult it please

5.The optimum operating situation should be at the 1/3～2/3 of the continuous operating situation

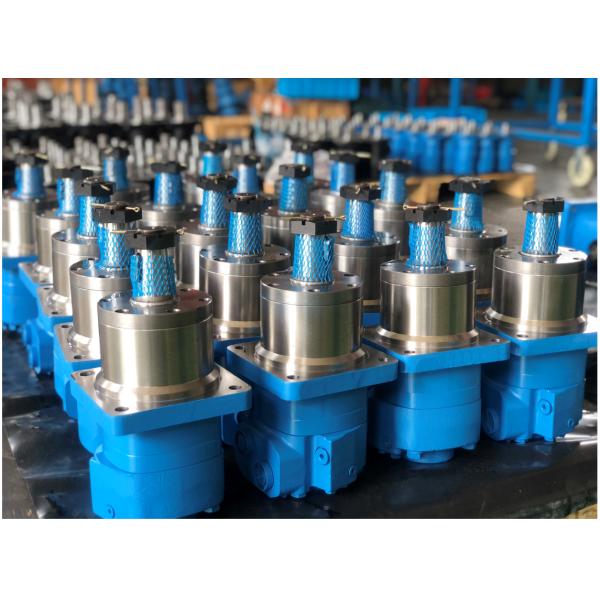

Orbital Cast Iron 6K/ KM6 Hydraulic Wheel Motor High Torque 970rpm

Packing:
Orbital Cast Iron 6K/ KM6 Hydraulic Wheel Motor High Torque 970rpm
Transportation:
Orbital Cast Iron 6K/ KM6 Hydraulic Wheel Motor High Torque 970rpm

FAQ:

1. who are we?
We are based in Jining, China, start from 2003.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Hydraulic motor
4. How long is the Warranty?
One-year warranty.
5. What is your payment terms?
Re: 100% in advance, long-term dealer 30% in advance, 70% beofre shipping.
6. How about the delivery time?
Normal Models within 2 days, unusual models and bulk order within 5-10 days.
