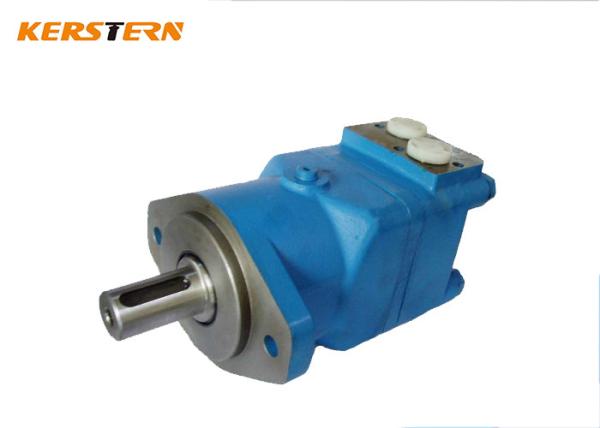

BMR MR BM2B 80cc 315cc Brake Orbital Motors Orbit Hydraulic Displacement
BMR MR BM2B 80cc 315cc Brake Orbital Motors Orbit Hydraulic Displacement
Specifications
Brand Name :
KERSTERN
Model Number :
BM2B BMR
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
One pcs
Price :
USD 1
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 pcs per month
Delivery Time :
15-20 days after receievd payment
Packaging Details :
Standard packages
Type :
Brake orbital hydraulic motor
Displacement :
80-315cc
Pressure :
14mpa
Brake :
Static brake
Torque :
300-500 N*m
Max flow :
50LPM
Guarantee :
1 year
Description

BM2B series Hydraulic motors bulit-in integrated dynamic holding brake

BM2B Series orbital hydraulic motor with brake extending BMR series motor range. This motor has an integrated holding brake.
BMR MR BM2B 80cc 315cc Brake Orbital Motors Orbit Hydraulic Displacement

TypeBMR-BK01BMR-BK01BMR-BK01BMR-BK01BMR-BK01BMR-BK01BMR-BK01BMR-BK01BMR-BK01
5080100125160200250315375
51.781.5102128157195253318381
Max. speed (rpm)cont.509502497459372301231184166
int.603598574574465376289230192
Max. torque
(N•m)		cont.103203254317391359437456465
int.88.6160200250308333473502520
rated104164205256316335437456465
Max. output (kW)cont.5.510.713.215.215.211.310.68.88.1
int.5.61012151513.114.312.110.5
Max. pressure drop(Mpa)cont.1417.517.517.517.51312108.5
int.17.52020202017.513119.5
rated14141414141212108.5
Max.flow (L/min)cont.274252606060606065
int.3250607575757575

75


Characteristic features:
1. Advanced manufacturing devices for the Geroler gear set , which use low pressure of start-up ,
provide smooth , reliable operation and high efficiency .
2. Shaft seal can bear high pressure of back and the motor can be use in parallel or in series .
3. Special design in the driver-linker and prolong operating life .
4. Special design for distribution system can meet the requirement of low noise of unit .
4. Compact volume and easy installation .
5. Small volume and radial dimension,high holding torque,power brake,low weight and easy to install.
