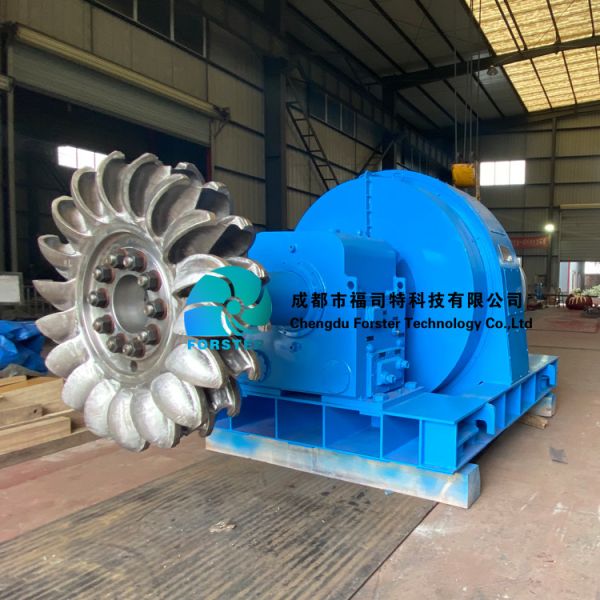

Horizontal Hydro Turbine 100 KW Pelton Wheel Generator
Horizontal Hydro Turbine 100 KW Pelton Wheel Generator
Horizontal Hydro Turbine 100 KW Pelton Wheel Generator
Horizontal Hydro Turbine 100 KW Pelton Wheel Generator
Horizontal Hydro Turbine 100 KW Pelton Wheel Generator
Horizontal Hydro Turbine 100 KW Pelton Wheel Generator
Specifications
Brand Name :
Forster
Model Number :
CJA475-W-70/1×7
Certification :
SGS/CE/TUV/ISO9001
Place of Origin :
Sichuan, China (Mainland)
MOQ :
1 Set/Sets
Price :
USD145800/set
Payment Terms :
L/C, T/T
Supply Ability :
50 Set/Sets per Month
Delivery Time :
120days
Packaging Details :
Wood box
Capacity :
300kw to 1600KW
Voltage :
400v
Frequency :
50Hz/60Hz
Processing method :
CNC machining
Power Factor :
1600KW
Governor :
High Hydraulic Microcomputer Governor
Runner material :
Stainless steel
Keyword :
Hydro Turbine 100 Kw
Insulation class :
F/F
Installation method :
Horizontal installation
Design Head :
200 m to 500 m
Description

High Quality Hydro Turbine 100 KW Pelton Wheel For Water Turbine For Sale

Product features:

Unlike other types of turbines which are reaction turbines, the Pelton turbine is known as an impulse turbine. This simply means that instead of moving as a result of a reaction force, water creates some impulse on the turbine to get it to move.

When used for generating electricity, there is usually a water reservoir located at some height above the Pelton turbine. The water then flows through the penstock to specialized nozzles that introduce pressurized water to the turbine. To prevent irregularities in pressure, the penstock is fitted with a surge tank that absorbs sudden fluctuations in water that could alter the pressure.


Components including stator, rotor,base frame, bearing, excitation motor or collecting ring. The outlet voltage from 400V to 13.8KV, and frequency could be 50Hz or 60Hz, output from 50Kw to 50Mw. Our generator are high efficiency, reliable, manufacture and tests all follow related IEC standards.

Pelton turbine has below advantages:

1. Suitable for develop low head large flow rate hydro power.

2. Could be running steadily in changable flow

3. Kaplan turbine is a vetical model, economic and easy to maintain.

Pelton Tubrine Parameters:

Pelton tubine generator unit Generator Unit output (kw)
Turbine
Type Water head(m) Discharge (m³/s) Output(kw) Speed (r/min) Type Capacity (kw)
CJA237/475-1*7 200 0.232 383.2 750 SFW320-8/850 320 358.3
220 0.243 440.5 SFW400-8/850 400 414.1
240 0.254 502 SFW500-8/850 500 474.4
260 0.264 572 1000 SFW500-6/850 500 540.5
280 0.274 643.5 SFW630-6/990 630 608.1
300 0.284 714.6 SFW630-6/990 630 675.3
CJA237/475-W-90/1*4.5 275 0.086 176.3 750 SFW160-8/650 160 162.9
300 0.0896 200.4 SFW200-8/740 200 185.8
325 0.0932 225.8 SFW200-8/740 200 209.3
350 0.0969 252.8 SFW250-8/740 250 235.1
375 0.1005 279.8 SFW250-8/740 250 260.2
400 0.103 309 1000 SFW250-8/740 250 287.4
425 0.1077 341.3 SFW320-6/740 320 320.1
450 0.1098 368.4 SFW320-6/740 320 345.5
500 0.119 496 SFW500-6/850 500 456
600 0.131 650 SFW630-6/990 630 610
700 0.141 823 SFW800-6/990 800 770
CJA237/475-W-90/1*7 260 0.261 572 750 SFW500-8/850 500 526
280 0.271 636 SFW630-8/990 630 585
300 0.28 700 SFW630-8/990 630 651
320 0.289 766 SFW800-8/990 800 712
340 0.298 834 SFW800-8/990 800 775
360 0.307 899 SFW800-8/990 800 836
380 0.315 968 SFW1000-8/1180 1000 900
400 0.327 1093 1000 SFW1000-6/1180 1000 1021.9
420 0.335 1159 SFW1000-6/1180 1000 1189
440 0.343 1287 SFW1250-6/1180 1250 1203.3
460 0.351 1382 SFW1250-6/1180 1250 1292.2
480 0.359 1476 SFW1250-6/1180 1250 1380.1
500 0.366 1567 SFW1600-6/1180 1600 1465.1

Product Pictures:

Horizontal Hydro Turbine 100 KW Pelton Wheel Generator

Horizontal Hydro Turbine 100 KW Pelton Wheel Generator

Pelton Turbine Design Schematic​:

Horizontal Hydro Turbine 100 KW Pelton Wheel Generator

Company Information

Engineering case:
Horizontal Hydro Turbine 100 KW Pelton Wheel Generator

FAQ

Q1, Which hydro turbine should I choose?

Please tell me the water head, flow rate, frequency, Total power you need

, voltage, on grid or off grid operation, we will propose a solution.

Q2, Can your factory provide all the equipment for hydropower generation?

Yes, we can provide you with turbines, hydro-generators, pressure regulators, turbine wheels, control panels, transformers, monitoring systems and more.

Q3, Can you do EPC for a hydroelectric power plant?

Yes, we can provide TURN-KEY and EPC services including measurement, design, manufacturing, construction, manufacturing, commissioning, inspection, maintenance runner replacement and refurbishment/upgrade/improvement/repair/refurbishment of turbines/generators including bearings, seals For parts and key parts, we will send technicians and workers to install equipment.

Q4, Is your company a trading company or a manufacturer?

We are a manufacturer of hydro turbine generators and started to promote the international market in 2013. Our factory is located in Sichuan, where China's water conservancy and hydropower is most developed. Welcome to visit our factory in China.

Q5, How many an acceptable MOQ?

For this product, our acceptable MOQ is 1 set.

Q6, How long is the delivery time?

Delivery times range from 15 days to 6 months depending on the model you are purchasing.

Q7, Does your company have its own independent official website?

Of course, and we can see more information about our company and products on our official website.
