Specifications
Brand Name :
Forster
Model Number :
CJA237-W-65
Certification :
From-E/CE/TUV/ISO9001
Place of Origin :
Sichuan, China (Mainland)
MOQ :
1 Set/Sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50 Set/Sets per Month
Delivery Time :
120days
Packaging Details :
Wood box
Power :
50KW
Voltage :
6.3kv/10kv/20kv/35kv
Frequency :
50Hz/60Hz
Generator type :
3 Phase AC
Power Factor :
F/F
Runner material :
stainless steel
Keyword :
Low Flow Water Turbine Pelton Generator
Design Head :
200m to 400m
Design Flow :
0.51 m³/s to 1.14 m³/s
Volute material :
Carbon steel
Description

1000KW 2000KW 5MW 10MW Hydro Pelton Turbina For Hydropower Water Turbine

Product features:

Micro hydro pelton turbine(impact water turbine) is a hydraulic prime mover that converts water energy into mechanical energy by drawing a free jet with kinetic energy by means of a special water guiding mechanism, rushing to the runner water bucket, and rotating the runner to do work. In impact turbines, the relative positions and working times of working jets and runners can be divided into impact turbines, oblique turbines, and double-click turbines.

Pelton turbine suit to water head 100 to 1000 meters and with certain small flow. It could vertical and horizontal arrangement,nozzle numbers from one to six.Pelton turbine with feature of wide flow high efficiency region. It could start turbine with 10% of rated flow. Pelton turbine with one or two nozzles usually adopt horizontal arrangement, but multiple nozzle Pelton turbine adopts vertical arrangement.

Pelton turbine units are wildly used in mountain area all over the world, and well known by its simple structure, less investment, high efficiency, and reliable long service life.

Pelton turbines use high-speed water to “shock” the runners to do work. The water flow enters the turbine from the pressurized water pipe and forms a high-speed jet through the nozzle.

1. The pelton turbine is suitable for high head,small flow and flow changes in large runoff hydropower station.

2. With the power plant investment is small,compact units structure characteristics.

3. Has the efficiency changes smoothly,operating a wide range,even in the 15--20% load is reduced efficiency.

4. Suitable for high head,small flow station in mountainous area.

5. A unit construction,simple restrictions without cavitation condition,the advantages of stable operation,less investment,construction area.

Product parameters:
Pelton tubine generator unit Generator Unit output (kw) Gevernor or Regulating work Valve
Turbine
Type Water head(m) Discharge (m³/s) Output(kw) Speed (r/min) Type Capacity (kw)
CJA237/475-115/1 x 9 400 0.54 1821 750 SFW1600-12/1430 1600 CJW-I BWT-6000 DN400
420 0.56 1973 SFW1600-10/1430 1600
440 0.57 2121 SFW2000-10/1430 2000
460 0.58 2267 SFW2000-10/1430 2000
480 0.59 2415 SFW2000-10/1430 2000
500 0.61 2564 SFW2500-10/1430 2500
CJA237/475- W-115/1 x 12.5 100 0.53 435 375 SFW400-16/1180 400 162.9 CJWT- I BWT-6000 DN400
120 0.58 578 SFW500-16/1180 500 185.8
140 0.62 728 428.6 SFW630-14/1430 630 209.3
160 0.66 888 SFW800-14/1430 800 235.1
180 0.7 1047 SFW1000-14/1430 1000 260.2
200 0.74 1242 500 SFW1250-12/1730 1250 287.4
220 0.78 1430 SFW1250-12/1730 1250 320.1
240 0.81 1619 SFW1600-12/1730 1600 345.5
260 0.85 1828 600 SFW1600-10/1730 1600 456
280 0.88 2057 SFW2500-10/1730 2500 610
300 0.91 2283 SFW2500-10/1730 2500 770
CJA237/475-W-125/1 x 9 310 0.481 1250 600 SFW1250-10/1430 1250 1186.3 CJWT- I BWT-6000 DN400
340 0.504 1449 SFW1250-10/1430 1250 1366.4
370 0.526 1644 SFW1600-10/1430 1600 1561.8
400 0.547 1835 SFW1600-10/1430 1600 1743.3
430 0.567 2033 SFW1600-10/1730 1600 1933.4
460 0.586 2269 750 SFW2000-8/1730 2000 2178.2
490 0.605 2501 SFW2500-8/1730 2500 2401
520 0.625 2748 SFW2500-8/1730 2500 2638.1
550 0.641 2981 SFW2500-8/1730 2500 2861.8
580 0.658 3219 SFW3200-8/1730 3200 3090.2
610 0.675 3413 SFW3200-8/1730 3200 3276.2
640 0.693 3652 SFW3200-8/1730 3200 3505.9
670 0.708 3918 SFW4000-8/1730 4000 3769.1
700 0.723 4170 SFW4000-8/1730 4000 4017.6
CJA237/475-W-125/1 x 14 150 0.81 993 SFW1000-14/1430 1000 BWT-6000 DN500
170 0.86 1213 428.6 SFW1250-14/1430 1250
190 0.91 1434 SFW1250-14/1430 1250
210 0.95 1652 SFW1600-12/1730 1600
230 1 1909 SFW1600-12/1730 1600
250 1.04 2163 500 SFW2000-12/1730 2000
270 1.08 2417 SFW2000-12/1730 2000
290 1.12 2671 SFW2500-12/1730 2500
310 1.16 2970 SFW2500-12/1730 2500
330 1.19 3278 600 SFW3200-10/1730 3200
350 1.23 3588 SFW3200-10/1730 3200

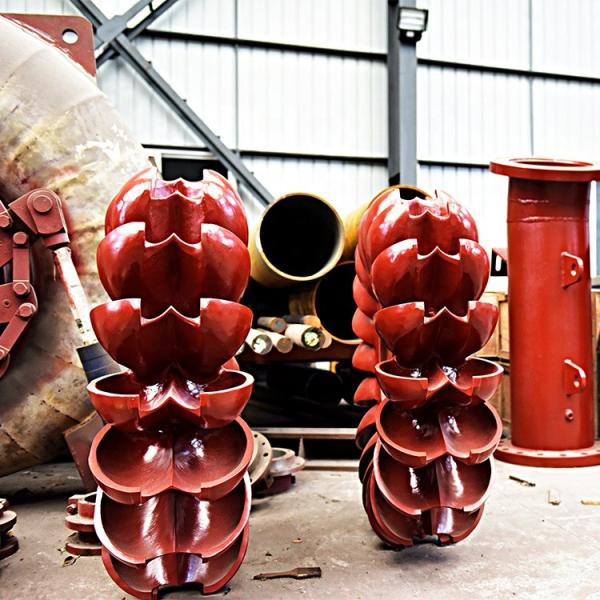

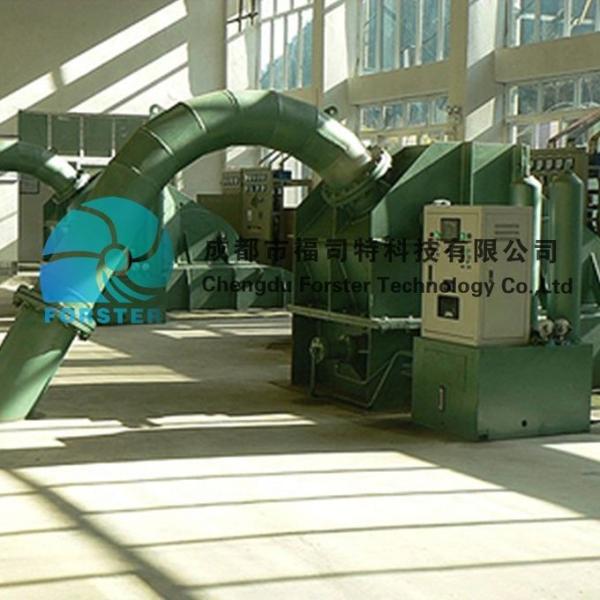

Product pictures:

1000KW 2000KW 5MW 10MW Hydro Pelton Turbina For Hydropower Water Turbine

1000KW 2000KW 5MW 10MW Hydro Pelton Turbina For Hydropower Water Turbine1000KW 2000KW 5MW 10MW Hydro Pelton Turbina For Hydropower Water Turbine

Company Information

Chengdu Forster Technology is focused on design and manufacturing hydro turbines. The company was founded in 1956. Forster is the first Chinese state-owned enterprise and spares no effort to expand international market in 2013,At present, we have obtained orders in many water-rich areas such as Europe, Asia, South America, North America, etc., and as partners, we are qualified as long-term suppliers in many regions.

The capacity of hydro turbines is up to 5KW-300MW for a unit. The main hydro turbines are Turgo turbine ,pelton turbines, francis turbines, kaplan turbines ,bulb tubular turbines and other types of turbines.Foster also supplies governors, valves, transformers, monitoring systems, microcomputer integrated control panels and other equipment for hydroelectric power plants.

Our workshop

Advantages

FAQ

Q1, Which turbine should I choose?

Please tell me the water head, flow rate, frequency, Total power you need

, voltage, on grid or off grid operation, we will propose a solution.

Q2, Can your factory provide all the equipment for hydropower generation?

Yes, we can provide you with turbines, hydro-generators, pressure regulators, turbine wheels, control panels, transformers, monitoring systems and more.

Q3, Can you do EPC for a hydroelectric power plant?

Yes, we can provide TURN-KEY and EPC services including measurement, design, manufacturing, construction, manufacturing, commissioning, inspection, maintenance runner replacement and refurbishment/upgrade/improvement/repair/refurbishment of turbines/generators including bearings, seals For parts and key parts, we will send technicians and workers to install equipment.

Q4, Is your company a trading company or a manufacturer?

We are a manufacturer of hydro turbine generators and started to promote the international market in 2013. Our factory is located in Sichuan, where China's water conservancy and hydropower is most developed. Welcome to visit our factory in China.

Q5, How many an acceptable MOQ?

For this product, our acceptable MOQ is 1 set.

Q6, How long is the delivery time?

Delivery times range from 15 days to 6 months depending on the model you are purchasing.

Q7, Does your company have its own independent official website?

Of course, and we can see more information about our company and products on our official website.

website address: www.fstgenerator.com
