Power Francis Hydro Turbine Generator For MHPP Service Life Is More Than 60 Years
Power Francis Hydro Turbine Generator For MHPP Service Life Is More Than 60 Years
Power Francis Hydro Turbine Generator For MHPP Service Life Is More Than 60 Years
Power Francis Hydro Turbine Generator For MHPP Service Life Is More Than 60 Years
Specifications
Brand Name :
FORSTER
Model Number :
HLA560-WJ-50
Certification :
CE/TUV/ISO9001/SGS
Place of Origin :
Sichuan, China (Mainland)
MOQ :
1 Set/Sets
Price :
USD52000-85500/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30set/month
Delivery Time :
120days
Packaging Details :
Wood Box
Net Head :
20m to 60m
Flow Rate :
0.8-1.5m3/s
Rated voltage of generator :
380v or 400v or 6300v
Rated rotating speed :
600-1000r/min
Processing method :
CNC machining
Valve :
Gate Valve or Butterfly Valve
Governor :
Micro computer Governor
Keyword :
300kw Francis Turbine
Description

Factory Price Service Life Is More Than 60 Years Hydro Power Francis Turbine For MHPP

Our main products included:

1. Hydro Kaplan turbine generators series.

2. Hydro Turgo turbine generators series,e.g. vertical type horizontal type.

3. Hydro Tubular turbine generators series ,e.g. Bulb type and shaft extension type.

4. Hydro Francis turbine generators series.

5. Hydro Pelton turbine generators series and double turbine generators series and so on.

6. Other auxiliary equipment for hydropower station, such as generator, control panel, governor, valve, transformer, automatic electrical equipment, electricity meter, pressure tube, etc

Power Francis Hydro Turbine Generator For MHPP Service Life Is More Than 60 Years

Product features :

The Hydro Francis turbine has a compact structure, high efficiency, and can adapt to a wide range of water heads. It is one of the types of turbines widely used in countries around the world.

When the water flow passes through the turbine wheel, it enters in the radial direction and flows out in the axial direction, so it is also called radial axial turbine.

It is suitable for water heads ranging from 20 meters to 700 meters. The mechanism is simple, the operation is stable, and the efficiency is high, but it is generally used in the range of medium heads (50 meters to 400 meters). The output of a single machine ranges from tens of kilowatts to hundreds of thousands of kilowatts. At present, the maximum output of this turbine has exceeded 700,000 kilowatts. It is the most widely used type of turbine.

Product parameters:

Hydro Turbine Name:Factory Price Service Life Is More Than 60 Years Hydro Power Francis Turbine For MHPP

Technical Parameters

Net Head:

Hr

20-50

m

Flow Rate:

Q

0.8-1.5

m³/s

Capacity

P

100-500

kw

Turbine

Generator

Model

HLA855-WJ-52

Model

SFWE-W500-6/990

Unit Flow Q11

0.656 m3/s

Rated Efficiency of Generator ηf

93.5%

Unit Rotating Speed n11

73.54 r/min

Efficiency of the generator f

50Hz

Max Hydraulic Thrust Pt

3.15t

Rated voltage of generator V

400V

Rated rotating speed r

1000r/min

Rated current of the generator I

902A

Efficiency of turbine ηm

94%

Excitation

Brushless Excitation

Max Runway speed nfmax

1834r/min

Connection way

direct connect

Rated Output Nt

535kW

Max runaway speed nfmax‘

1834r/min

Rated Discharge Qr

1.242m3/s

Rated rotating speed nr

1000r/min

Turbine real machine efficiency ηr

88%

Unit support form

Horizontal two point

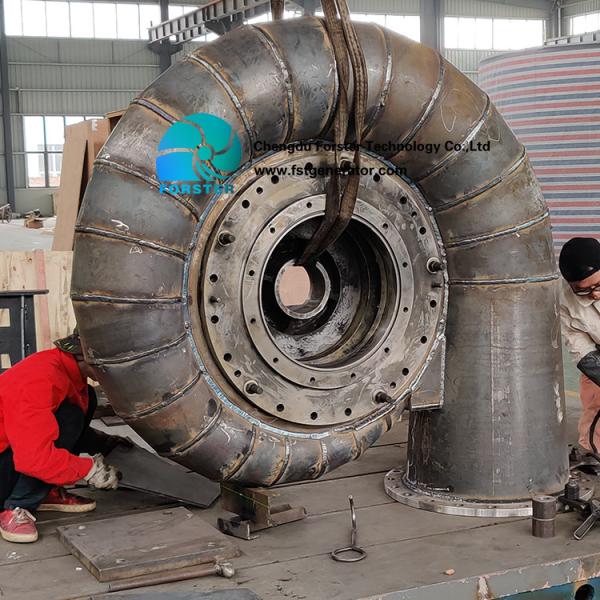

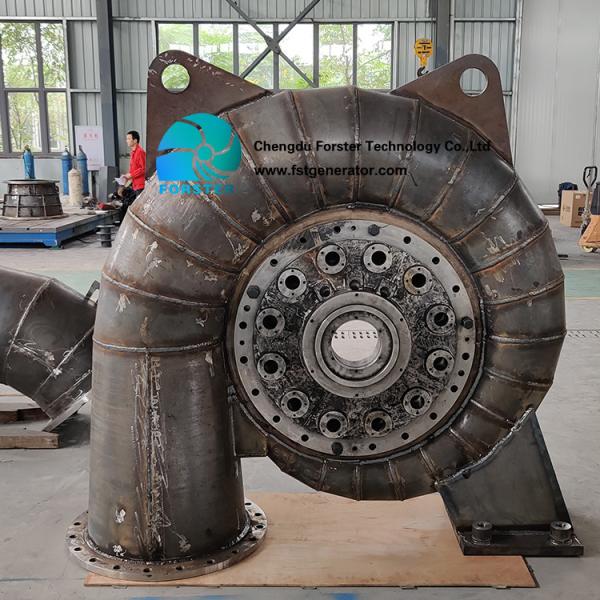

Product pictuers:

Power Francis Hydro Turbine Generator For MHPP Service Life Is More Than 60 YearsPower Francis Hydro Turbine Generator For MHPP Service Life Is More Than 60 Years

Power Francis Hydro Turbine Generator For MHPP Service Life Is More Than 60 Years

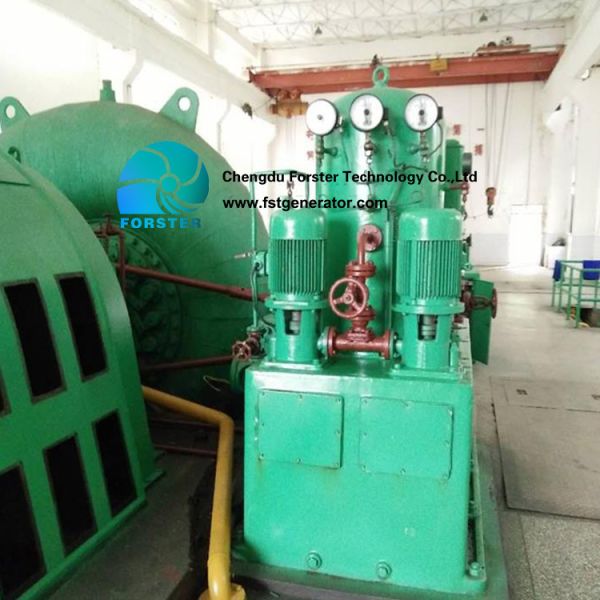

Engineering Case:

FAQ

Q1, Which hydro turbine should I choose?

Please tell me your hydropower projects the water head, flow rate, frequency, Total power you need

, voltage, on grid or off grid operation, we will propose a solution.

Q2, Can your factory provide all the equipment for hydropower generation?

Yes, we can provide you with turbines, hydro-generators, pressure regulators, turbine wheels, control panels, transformers, monitoring systems and more.

Q3, Can you do EPC for a hydroelectric power plant?

Yes, we can provide TURN-KEY and EPC services including measurement, design, manufacturing, construction, manufacturing, commissioning, inspection, maintenance runner replacement and refurbishment/upgrade/improvement/repair/refurbishment of turbines/generators including bearings, seals For parts and key parts, we will send technicians and workers to install equipment.

Q4, Is your company a trading company or a manufacturer?

We are a manufacturer of hydro turbine generators and started to promote the international market in 2013. Our factory is located in Sichuan, where China's water conservancy and hydropower is most developed. Welcome to visit our factory in China.

Q5, What is an acceptable MOQ?

For this product, our acceptable MOQ is 1 set.

Q6, How long is the delivery time?

Delivery times range from 15 days to 6 months depending on the model you are purchasing.

Q7,What is the efficiency of your Hydro Francis Turbine turbine?

According to the actual parameters of the customer, we design the turbine and generator of the customer at the best efficiency

Q8, Does your company have its own independent official website?

Of course, and we can see more information about our company and products on our official website.

website:www.hydro-turbinegenerator.com
