Micro Hydro Power Plant Pelton Turbine Generator , Water Turbine Generator
Micro Hydro Power Plant Pelton Turbine Generator , Water Turbine Generator
Micro Hydro Power Plant Pelton Turbine Generator , Water Turbine Generator
Micro Hydro Power Plant Pelton Turbine Generator , Water Turbine Generator
Micro Hydro Power Plant Pelton Turbine Generator , Water Turbine Generator
Micro Hydro Power Plant Pelton Turbine Generator , Water Turbine Generator
Specifications
Brand Name :
Foster
Model Number :
CJ237-W-45
Certification :
ISO9001/CE/TUV/From-E
Place of Origin :
Sichuan,China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
500 Set/Sets per month
Delivery Time :
120days
Packaging Details :
Wooden box
Deign Head :
60m to 180m
Deign Flow :
0.01 to 0.06m³/s
Material :
Stainless steel
Keyword :
Water Turbine Generator Price
Power :
30 KW to100 KW
Governor :
High Hydraulic Microcomputer Governor
Runner material :
Stainless steel
Rated speed :
750-1000
Description

Micro Hydro Power Plant Water Turbine Water Turbine Generator Price

Our main products included:

1. Kaplan turbine generators series.

2. Turgo turbine generators series.

3. Tubular turbine generators series.

4. Francis turbine generators series.

5. Pelton turbine generators series.

Product features:

1. Suitable for high head,small flow and flow changes in large runoff dropower station;

2. With the power plant investment is small,compact units structure characteristics;

3. Has the efficiency changes smoothly,opersting a wide range,even in the 15%-20% load is reduced efficiency;

4. Suitable for high head,small flow station in mountainous area;

5. A unit constatraction,simple restaction without cavitation condtion,the advantages of stable operation,less investment,constucion area.

Product parameters:

CJ237-W-45/1x4.8 Hydro Generator Pelton Turbine Performance Data And Supporting Table
Model Turbine Parameters Generator Parameters Driving mode Speed Way Water Intake
Design head(m) Under the design head Design speed (r/min) The power of generator Rated speed(r/min) Runaway speed(r/min) Vavel control Guide vane control Diameter (mm)
Flow rate (m3/s) The output(kw)
CJ237-W-45/1x4.8 60 0.06 28 637 26 1000 1800 Between the united manually 200
70 0.065 35.9 688 40 750 1500 Between the united manually 200
80 0.07 43.9 735 40 750 1500 Between the united manually 200
90 0.074 51.9 780 55 750 1500 Between the united manually 200
100 0.078 59.7 822 55 750 1500 Between the united manually 200
110 0.082 69.1 862 75 1000 1800 Between the united manually 200
120 0.085 80.2 901 75 1000 1800 Between the united manually 200
130 0.089 90.8 937 75 1000 1800 Between the united manually 200
140 0.092 102 937 100 1000 2200 Between the united manually 200
150 0.095 112 1007 100 1000 2200 Between the united manually 200
160 0.098 123 1040 100 1000 2200 Between the united manually 200
170 0.0102 134 1073 125 1000 2200 Between the united manually 200
180 0.0104 144 1103 125 1000 2200 Between the united manually 200

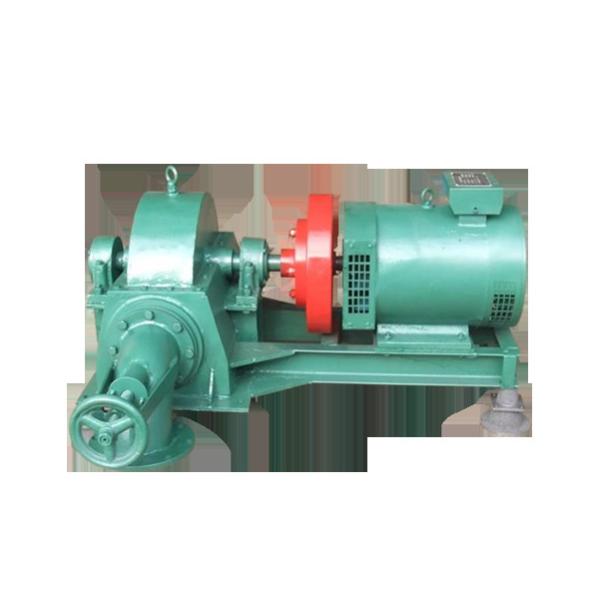

Product pictures:

Micro Hydro Power Plant Pelton Turbine Generator , Water Turbine Generator

Micro Hydro Power Plant Pelton Turbine Generator , Water Turbine Generator
Company Information

Chengdu Forster Technology is focused on design and manufacturing hydro turbines. The company was founded in 1956. Forster is the first Chinese state-owned enterprise and spares no effort to expand international market in 2013,At present, we have obtained orders in many water-rich areas such as Europe, Asia, South America, North America, etc., and as partners, we are qualified as long-term suppliers in many regions.

The capacity of hydro turbines is up to 50KW-30MW for a unit. The main hydro turbines areTurgo turbine ,pelton turbines, francis turbines, kaplan turbines ,bulb tubular turbines and other types of turbines.Foster also supplies governors, valves, transformers, monitoring systems, microcomputer integrated control panels and other equipment for hydroelectric power plants.

FAQ

Q1, Which turbine should I choose?

Please tell me the water head, flow rate, frequency, Total power you need

, voltage, on grid or off grid operation, we will propose a solution.

Q2, Can your factory provide all the equipment for hydropower generation?

Yes, we can provide you with turbines, hydro-generators, pressure regulators, turbine wheels, control panels, transformers, monitoring systems and more.

Q3, Can you do EPC for a hydroelectric power plant?

Yes, we can provide TURN-KEY and EPC services including measurement, design, manufacturing, construction, manufacturing, commissioning, inspection, maintenance runner replacement and refurbishment/upgrade/improvement/repair/refurbishment of turbines/generators including bearings, seals For parts and key parts, we will send technicians and workers to install equipment.

Q4,Is your company a trading company or a manufacturer?

We are a manufacturer of hydro turbine generators and started to promote the international market in 2013. Our factory is located in Sichuan, where China's water conservancy and hydropower is most developed. Welcome to visit our factory in China.

Q5, What is an acceptable MOQ?

For this product, our acceptable MOQ is 1 set.

Q6,How long is the delivery time?

Delivery times range from 15 days to 6 months depending on the model you are purchasing.

Q7,Does your company have its own independent official website?

Of course, and we can see more information about our company and products on our official website.

website address: www.fstgenerator.com
