In Line Industrial Water Turbine Generator Hydropower Hydraulic Turbine 500kw On Grid
In Line Industrial Water Turbine Generator Hydropower Hydraulic Turbine 500kw On Grid
In Line Industrial Water Turbine Generator Hydropower Hydraulic Turbine 500kw On Grid
In Line Industrial Water Turbine Generator Hydropower Hydraulic Turbine 500kw On Grid
In Line Industrial Water Turbine Generator Hydropower Hydraulic Turbine 500kw On Grid
In Line Industrial Water Turbine Generator Hydropower Hydraulic Turbine 500kw On Grid
Specifications
Brand Name :
Forster
Model Number :
CJ237/475-W
Certification :
ISO9001/CE/TUV/From-E
Place of Origin :
Sichuan,China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Set/Sets per month
Delivery Time :
120days
Packaging Details :
wooden box
Excitation device :
5 in 1 integrated control panel
Power :
1000KW to 5000KW
Head :
245m to 400m
Discharge :
0.51m³/s to 1.6m³/s
Draft tube material :
Carbon steel
Color :
According to customer choice
Connection method :
Straight league
Description

Quality In Line Industrial Water Turbine Generator Hydropower Hydraulic Turbine 500kw On Grid

Our main products included:

1. Kaplan hydro turbine generators series.

2. Turgo hydro turbine generators series,e.g. vertical type horizontal type.

3. Tubular hydro turbine generators series ,e.g. Bulb type and shaft extension type.

4. Francis hydro turbine generators series.

5. Pelton hydro turbine generators series and double turbine generators series and so on.

6. Other auxiliary equipment for hydropower station, such as generator, control panel, governor, hydroturbine control valve, transformer, automatic electrical equipment, electricity meter, pressure tube, etc

Product features:

Pelton water turbine is a hydraulic prime mover that converts water energy into mechanical energy by drawing a free jet with kinetic energy by means of a special water guiding mechanism, rushing to the runner water bucket, and rotating the runner to do work. The impact turbine is suitable for high-head, small-flow power stations. It converts water from pressure pipes into high-speed jets through nozzles, tangentially impacts the runner, and pushes the runner to rotate, thereby driving the generator rotor to generate electricity. In impact turbines, the relative positions and working times of working jets and runners can be divided into impact turbines, oblique impact turbines, and double-click turbines.

1. suitable for high head,small flow and flow changes in large runoff hydropower station.

2. With the power plant investment is small,compact units structure characteristics.

3. Has the efficiency changes smoothly,operating a wide range,even in the 15--20% load is reduced efficiency.

4. Suitable for high head,small flow station in mountainous area.

5. A unit construction,simple restrictions without cavitation condition,the advantages of stable operation,less investment,construction area.

Product parameters:

Quality In Line Industrial Water Turbine Generator Hydropower Hydraulic Turbine Generator Gevernor or Regulating work Valve
Turbine
Type Water head(m) Discharge (m³/s) Output(kw) Speed (r/min) Type Capacity (kw)
CJA237/475-W-90/2x7 245 0.51 1084 750 SFW1000-8/1180 1000 BWT-10000 DN400
283 0.55 1346 SFW1250-8/1180 1250
333 0.6 1718 SFW1600-8/1430 1600
393 0.65 2152 SFW2000-8/1430 2000
449 0.69 2689 1000 SFW2500-6/1430 2500
529 0.75 3439 SFW3200-6/1730 3200
CJA237/475-W-100/2x7 452 0.7 2686 750 SFW2500-8/1730 2500 BWT-10000 CJWT- II DN400
532 0.76 3441 1000 SFW3200-6/1730 3200
614 0.81 4301 SFW4000-6/1730 4000
710 0.87 5348 SFW5000-6/1730 5000
CJA237/475-W-110/2x9 203 0.77 1352 500 SFW1250-12/1430 1250 BWT-10000 CJWT- II DN500
238 0.84 1716 600 SFW1600-10/1430 1600
277 0.9 2154 SFW2000-10/1730 2000
322 0.97 2691 SFW2500-10/1730 2500
378 1.05 3434 750 SFW3200-8/1730 3200
439 1.13 4298 SFW4000-8/1730 4000
CJA237/475-W- 110/2x11 155 1.01 1359 428.6 SFW1250-14/1730 1250 BWT-10000 CJWT- II DN600
181 1.09 1719 500 SFW1600-12/2150 1600
210 1.17 2144 SFW2000-12/2150 2000
244 1.26 2691 600 SFW2500-10/2150 2500
288 1.37 3450 SFW3200-10/1730 3200
300 1.4 3535 SFW3200-10/1730 3200
320 1.45 3926 SFW4000-10/2150 4000
340 1.49 4317 SFW4000-8/2150 4000
360 1.54 4702 750 SFW4000-8/2150 4000
380 1.58 5082 SFW5000-8/2150 5000
400 1.62 5469 SFW5000-8/2150 5000

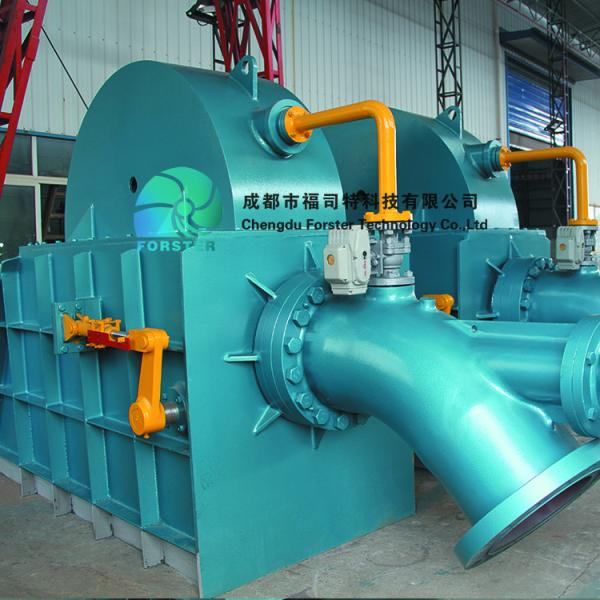

Product pictuers:

In Line Industrial Water Turbine Generator Hydropower Hydraulic Turbine 500kw On Grid

Installation design drawings:

In Line Industrial Water Turbine Generator Hydropower Hydraulic Turbine 500kw On Grid

Company Information

Chengdu Forster Technology is focused on design and manufacturing hydro turbines. The company was founded in 1956. Forster is the first Chinese state-owned enterprise and spares no effort to expand international market in 2013,At present, we have obtained orders in many water-rich areas such as Europe, Asia, South America, North America, etc., and as partners, we are qualified as long-term suppliers in many regions.

The capacity of hydro turbines is up to 50KW-30MW for a unit. The main hydro turbines areTurgo turbine ,pelton turbines, francis turbines, kaplan turbines ,bulb tubular turbines and other types of turbines.Foster also supplies governors, valves, transformers, monitoring systems, microcomputer integrated control panels and other equipment for hydroelectric power plants.

Customer Case

In Line Industrial Water Turbine Generator Hydropower Hydraulic Turbine 500kw On Grid

FAQ

Q1, Which turbine should I choose?

Please tell me the water head, flow rate, frequency, Total power you need

, voltage, on grid or off grid operation, we will propose a solution.

Q2, Can your factory provide all the equipment for hydropower generation?

Yes, we can provide you with turbines, hydro-generators, pressure regulators, turbine wheels, control panels, transformers, monitoring systems and more.

Q3, Can you do EPC for a hydroelectric power plant?

Yes, we can provide TURN-KEY and EPC services including measurement, design, manufacturing, construction, manufacturing, commissioning, inspection, maintenance runner replacement and refurbishment/upgrade/improvement/repair/refurbishment of turbines/generators including bearings, seals For parts and key parts, we will send technicians and workers to install equipment.

Q4,Is your company a trading company or a manufacturer?

We are a manufacturer of hydro turbine generators and started to promote the international market in 2013. Our factory is located in Sichuan, where China's water conservancy and hydropower is most developed. Welcome to visit our factory in China.

Q5, What is an acceptable MOQ?

For this product, our acceptable MOQ is 1 set.

Q6,How long is the delivery time?

Delivery times range from 15 days to 6 months depending on the model you are purchasing.

Q7,Does your company have its own independent official website?

Of course, and we can see more information about our company and products on our official website.

website address: www.fstgenerator.com
