Voltage Regulator Hydro Electric 80KW Water Turgo Turbine Generator
Voltage Regulator Hydro Electric 80KW Water Turgo Turbine Generator
Voltage Regulator Hydro Electric 80KW Water Turgo Turbine Generator
Voltage Regulator Hydro Electric 80KW Water Turgo Turbine Generator
Voltage Regulator Hydro Electric 80KW Water Turgo Turbine Generator
Voltage Regulator Hydro Electric 80KW Water Turgo Turbine Generator
Specifications
Brand Name :
Forster
Model Number :
XJA-W-50/1
Certification :
ISO9001/CE/TUV/SGS
Place of Origin :
Sichuan,China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
100 sets/month
Delivery Time :
60days
Packaging Details :
Wooden box
Processing method :
CNC machining
Design head :
20m to 90m
Design flow :
0.21 m³/s to 0.33 m³/s
Power :
40 KW to 80 KW
Generator type :
Synchronous Alternator, AC
Grid System :
Off grid
Generator: :
3-phase alternator
Excitation device :
5 in 1 integrated control panel
Runner material :
Stainless steel
Description

Automatic Voltage Regulator Hydro Electric Water Turbine Generator

The fundamental design principles can now be outlined. It is emphasized that preliminary calculations and reliance on previous parametric studies can only provide an approximate design and do not guarantee high efficiency, so full numerical calculations are recommended in the detailed
design followed by turbine testing.

Horizontal unit has the advantages of simple structure,convenient repair,reduce the plant height,advantages in reducing excavation depth.
The vertical unit with plant plane size small,a runner can be provided with a plurality of nozzles,(at most can be installed six nozzles),high specific speed,the same size as units of capacity is relatively small,light weight and so on.

Working Principle

When water flows from the pressure foray into the turbine nozzle through pipe, its potential energy is converted to kinetic energy by the nozzle. The high speed water jet comes out from the nozzle strikes at the buckets (blades) at a certain angle (not in a tangential direction) against the rotating surface of the runner. The water flows into the propeller (turbine runner) from one side and flows out from other side.

In a Turgo, the runner is less expensive to make than a Pelton Wheel and does not need an airtight housing like the Francis. It also has a higher specific speed, handling a greater flow than the Pelton Wheel. This leads to a reduced generator and installation cost. Turgos operate in a head range where the Francis and Pelton overlap.

Product technical parameter​:
XJ1 3-W-20/1 * 5 turbine performance data and supporting table
Model Turbine Parameters Generator Parameters Driving mode
Design head(m) Under the design head Design speed (r/min) The power of generator The runaway speed Rated speed(r/min)
Flow rate (m3/s) The output(kw)
XJ1 3-W-20/1 * 5 30 0.0482 10.9 1095 10 1000 1800 Indirect connection
35 0.0521 13.4 1183 10 1000 1800 #
40 0.0556 16.2 1265 15 1500 2200 #
45 0.059 19.7 1340 15 1500 2200 #
50 0.0621 23.4 1410 26 1500 2200 Direct connection
55 0.0652 27.4 1480 26 1500 2200 #
60 0.068 31.2 1550 26 1500 2200 #
65 0.071 35.1 1610 40 1500 2400 #
70 0.0735 38.8 1670 40 1500 2400 #
75 0.076 42.5 1730 40 1500 2400 Indirect connection
80 0.0786 48.2 1790 40 1500 2400
85 0.081 49.3 1840 55 1500 2400 #

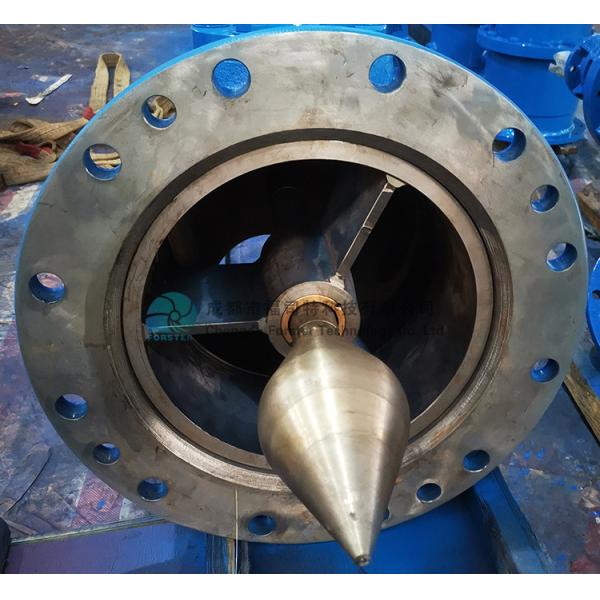

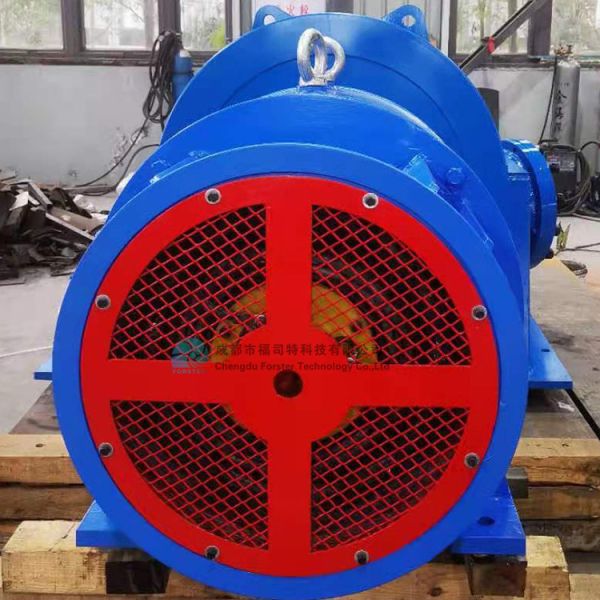

TurgoTurbine Product Pictuers

Voltage Regulator Hydro Electric 80KW Water Turgo Turbine GeneratorVoltage Regulator Hydro Electric 80KW Water Turgo Turbine GeneratorVoltage Regulator Hydro Electric 80KW Water Turgo Turbine GeneratorVoltage Regulator Hydro Electric 80KW Water Turgo Turbine Generator

Company Information

Forster is strict to IEC international standard and national standard. It has CE,ISO,TUV,certificate. The hydro turbines have different types, specifications and reliable quality with characteristics of reasonable structure, reliable operation, high efficiency, standardized parts ,convenient maintenance.

After obtaining the certification of IS09001 quality management system, we still adhere to the rigorous work style formed in the turbine industry for many years, constantly and independently improve and perfect the management system of the enterprise, cherish and value the rich experience accumulated in the turbine production for decades, and constantly increase the technical force and Equipment input, focusing on the production, manufacture and installation of hydro-generator set equipment, auxiliary equipment of power station, production and manufacture of over-current components, repair and Capacity Upgrading of various power stations.

Customer case

Voltage Regulator Hydro Electric 80KW Water Turgo Turbine Generator

FAQ

Q1, Which turbine should I choose?

Please tell me the water head, flow rate, frequency, Total power you need

, voltage, on grid or off grid operation, we will propose a solution.

Q2, Can your factory provide all the equipment for hydropower generation?

Yes, we can provide you with turbines, hydro-generators, pressure regulators, turbine wheels, control panels, transformers, monitoring systems and more.

Q3, Can you do EPC for a hydroelectric power plant?

Yes, we can provide TURN-KEY and EPC services including measurement, design, manufacturing, construction, manufacturing, commissioning, inspection, maintenance runner replacement and refurbishment/upgrade/improvement/repair/refurbishment of turbines/generators including bearings, seals For parts and key parts, we will send technicians and workers to install equipment.

Q4,Is your company a trading company or a manufacturer?

We are a manufacturer of hydro turbine generators and started to promote the international market in 2013. Our factory is located in Sichuan, where China's water conservancy and hydropower is most developed. Welcome to visit our factory in China.

Q5, What is an acceptable MOQ?

For this product, our acceptable MOQ is 1 set.

Q6,How long is the delivery time?

Delivery times range from 15 days to 6 months depending on the model you are purchasing.

Q7,Does your company have its own independent official website?

Of course, and we can see more information about our company and products on our official website.

website address: www.fstgenerator.com
