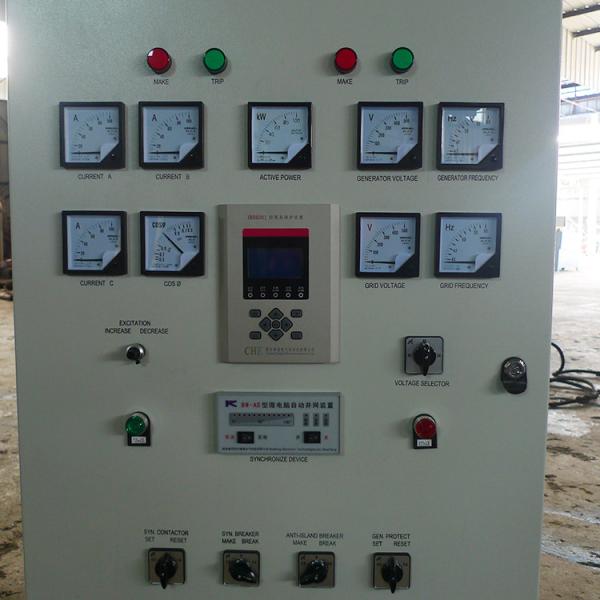

Hydroelectric 3.5m - 10m Kaplan Turbine Generator Speed Control Panel For Hydropower Station
Hydroelectric 3.5m - 10m Kaplan Turbine Generator Speed Control Panel For Hydropower Station
Hydroelectric 3.5m - 10m Kaplan Turbine Generator Speed Control Panel For Hydropower Station
Hydroelectric 3.5m - 10m Kaplan Turbine Generator Speed Control Panel For Hydropower Station
Hydroelectric 3.5m - 10m Kaplan Turbine Generator Speed Control Panel For Hydropower Station
Hydroelectric 3.5m - 10m Kaplan Turbine Generator Speed Control Panel For Hydropower Station
Specifications
Brand Name :
Forster
Model Number :
ZDT03-LH-140
Certification :
CE/TUV/ISO9001/From-E
Place of Origin :
Sichuan, China (Mainland)
MOQ :
1 Set/Sets
Price :
USD315000-128500/set
Kaplan Turbine Water head :
3.5m-10m
Kaplan Turbine Flow :
3.5-13m3/s
Power :
100kw-800kw
Voltage :
380v or 400v, 3 Phase
Blade angle :
+15-25 degrees
Speed Governor :
High Hydraulic Microcomputer Governor
Excitation device :
5 in 1 integrated control panel
Keyword :
Kaplan Turbine
Description

Hydroelectric Low Head 3.5m - 10m And Speed Control panel Hydro Turbine Governor Kaplan Turbine For Hydropower Station

Our main products included:

1. Kaplan turbine generators series.

2. Turgo turbine generators series,e.g. vertical type horizontal type.

3. Tubular turbine generators series ,e.g. Bulb type and shaft extension type.

4. Francis turbine generators series.

5. Pelton turbine generators series and double turbine generators series and so on.

6. Other auxiliary equipment for hydropower station, such as water turbine generator, water turbine control panel, governor, valve, transformer, automatic electrical equipment, electricity meter, pressure tube, etc

Hydroelectric 3.5m - 10m Kaplan Turbine Generator Speed Control Panel For Hydropower Station

Product features :

1. Suitable for the development of low water head larger flow of water resources;

2. Appliceable to large and small head change load changes of power plant;

3. For the low head,head and power changed greatly power station,can stably under various working conditions;

4. This machine is a vertical shaft device,has the advantages of simple structure,convenient repair,equipment,low price,easy to realize the direct drive etc.

5. The Kaplan blade is generally operated by the oil pressure relay installed in the body of the runner, which can rotate according to the change of head and load, so as to maintain the optimal coordination between the Angle of the guide vane and the Angle of the blade, thus improving the average efficiency. Kaplan turbine The highest efficiency of this kind of turbine has exceeded 94%. However, this kind of kaplan turbine needs a mechanism to operate the rotation of the blade, so the structure is more complex and the cost is higher.

Product parameters:

ZD-LM(Y)-Kaplan tubine generator unit Generator Gevernor or Regulating work
Turbine
Type Blade angle(°) Water head(m) Discharge (m³/s) Speed (r/min) Power(kw) Efficiency(%)
ZDT03-LH-140 15 3.6 5.76 250 182 89.2 SF160-24/1730 DST-6000 or YT-6000
4.3 5.99 228 90.2 SF200-20/990
4.8 6.87 300 286 88.5 SF250-20/1180
5.7 7.12 355 89.2 SF320-20/1430
6.9 7.34 448 90.2 SF400-20/1730
20 3.7 7.24 250 230 87.5 SF200-24/1730 DST-6000 or YT-6000
4.4 7.3 279 88.5 SF250-24/1730
5.8 8.54 300 445 88.5 SF400-20/1730 YWT-10000
7 9.03 552 89 SF500-20/1730
25 3.9 8.55 250 278 85 SF250-24/1730 DST-6000 or YT-6000
4.6 9.15 357 86.5 SF320-24/1430
5.4 10.23 300 458 84.5 SF400-20/1730 DST-8000 or YWT-10000
6.3 10.51 562 86.5 SF500-20/1730
ZDT03-LH-160 10 4.6 7 250 281 89 SF250-24/1730 YT-6000
5.6 7.26 357 89.5 SF320-24/1730
6.2 8.32 300 447 88.3 SF400-20/1730 YWT-10000
7.4 8.64 560 89.3 SF500-20/1730
15 4.6 8.73 250 354 89.8 SF320-24/1730 YT-6000
5.6 8.94 446 90.8 SF400-24/2150
6.2 10.27 300 556 89 SF500-20/2150 YWT-10000
7.5 10.54 702 90.5 SF630-20/2150
20 4.3 9.5 250 358 89.3 SF320-28/2150 YWT-10000
4.8 10.93 453 88 SF400-24/2150
5.8 11.07 562 89.2 SF500-24/2150
7.1 11.41 709 89.2 SF630-24/2150 YWT-10000
25 4.7 11.26 214.3 452 87 SF400-28/2150
5.7 11.45 250 557 SF500-28/2150
6.3 13.11 705 SF630-24/2150
ZDT03-LH-180 10 4.4 9.58 250 359 86.8 SF320-24/1730 YWT-10000
5.3 9.87 454 88.5 SF400-24/2150
6.3 10.14 563 89.8 SF500-24/2150
7.1 11.54 300 710 88.3 SF630-20/2150 YWT-18000
15 4.7 10.7 214.3 449 91.1 SF400-28/2150 YWT-10000
5.3 12.1 250 562 89.5 SF500-24/2150
6.4 12.4 706 90.8 SF630-24/2150 YWT-18000
20 7.3 14.36 214.3 905 88 SF800-20/2150
5.9 13.6 250 707 89.8 SF630-28/2150 YWT-18000
6.6 15.72 909 89.3 SF800-24/2150
25 4.7 14.03 187.5 570 88.1 SF500-32/2150
5.2 16.02 214.3 715 87.5 SF630-28/2150 YWT-18000
6.4 16.15 893 88.1 SF800-28/2150

Product pictuers:

Other products:

Company Information

Our Workshop:

Advantages:

Hydro Power Plant Engineering Case

Packaging & Shipping

FAQ

Q1, Which turbine should I choose?

Please tell me the water head, flow rate, frequency, Total power you need

, voltage, on grid or off grid operation, we will propose a solution.

Q2, Can your factory provide all the equipment for hydropower generation?

Yes, we can provide you with turbines, hydro-generators, pressure regulators, turbine wheels, control panels, transformers, monitoring systems and more.

Q3, Can you do EPC for a hydroelectric power plant?

Yes, we can provide TURN-KEY and EPC services including measurement, design, manufacturing, construction, manufacturing, commissioning, inspection, maintenance runner replacement and refurbishment/upgrade/improvement/repair/refurbishment of turbines/generators including bearings, seals For parts and key parts, we will send technicians and workers to install equipment.

Q4, Is your company a trading company or a manufacturer?

We are a manufacturer of hydro turbine generators and started to promote the international market in 2013. Our factory is located in Sichuan, where China's water conservancy and hydropower is most developed. Welcome to visit our factory in China.

Q5, What is an acceptable MOQ?

For this product, our acceptable MOQ is 1 set.

Q6, How long is the delivery time?

Delivery times range from 15 days to 6 months depending on the model you are purchasing.

Q7, Does your company have its own independent official website?

Of course, and we can see more information about our company and products on our official website.

Q8, What will you offer to the buyer?
In addition to quality after-sales service and product lifetime tracking, we also provide customers with installation instructions for hydropower equipment such as Kaplan tubine, installation layout of hydropower equipment, etc., and every year our after-sales team and technical team will visit our customer hydropower station.
