High Efficiency 600kw to 10mw High And Low Voltage 380v - 35kv Francis Turbine Generator Unit For HPP
High Efficiency 600kw to 10mw High And Low Voltage 380v - 35kv Francis Turbine Generator Unit For HPP
High Efficiency 600kw to 10mw High And Low Voltage 380v - 35kv Francis Turbine Generator Unit For HPP
High Efficiency 600kw to 10mw High And Low Voltage 380v - 35kv Francis Turbine Generator Unit For HPP
Specifications
Brand Name :
Forster
Model Number :
HL220/A153
Certification :
CE/TUV/ISO9001/From-E
Place of Origin :
Sichuan, China (Mainland)
MOQ :
1 Set/Sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30 Set/Sets per Month
Delivery Time :
120days
Packaging Details :
wood box
Processing method :
CNC machining / constant temperature annealing
Efficiency :
86.5-91.7%
Voltage :
380v 400v 3.3kv 6.3kv 10.5kv 20kv 35kv 40kv
Frequency :
50Hz/60Hz
Insulation class :
F/F
Certificate :
ISO9001/CE/TUV/From-E
Runner Material :
stainless steel
Control system :
Automation Control System
Keyword :
Francis Turbine Generator
Port :
shanghai/shenzhen
Description

High Efficiency 600kw to 10mw High Voltage 380v - 35kv Francis Turbine Generator Unit For HPP

Our main products included:

1. Kaplan turbine generators series.

2. Turgo turbine generators series.

3. Tubular turbine generators series.

4. Francis turbine generators series.

5. Pelton turbine generators series.

Product features :

With compact structure and high efficiency, Francis turbine can adapt to a wide range of water head

Type of turbine.

When water flows through the working wheel of this kind of turbine, it enters in the radial direction and leaves in the axial direction, so it is also called the radial axial flow turbine.

Francis turbine is also known as Francis turbine. Water flows into the runner from all directions, and then flows out from the runner in an almost axial direction. The runner is composed of upper crown, lower ring and blade.

It is suitable for the range of water head from 20 meters to 700 meters, simple mechanism, stable operation, and high efficiency, but it is generally used in the range of water head (50 meters to 400 meters). Unit output from dozens of kilowatts to hundreds of thousands of kilowatts. The turbine has a maximum output of more than 700,000 kilowatts. Is one of the most widely used type of turbine.

1.Francis turbine has the advantages of compact structure, high efficiency and can adapt to a wide range of water head of turbine type.

2.When the water flow through the turbine wheel, it enters to radial, axial flow, so it is also called the radial axial flow turbine;

3.Francis turbine is also called the Francis turbine. The water flow from the surrounding radial inflow runner, then approximate axial flow runner, runner by the crown, under the ring and the blade;

4.It is applicable to the head from a range of 20 meters of up to 700 meters, has the advantages of simple structure, stable operation, and high efficiency, but it is generally used in the head in the range(50 to 400 meters). Single output from tens of KW to several 101000 tile. At present this kind of turbine maximum output has exceeded 700000 kilowatts. A turbine is one of the most extensively used.

5.Francis hydro turbine generator unit is one of our common hydraulic turbines. It consists of hydraulic turbines, generators and other basic components.

Product parameters:

HL-WJ-Francis tubine generator unit Generator Gevernor or Regulating work Valve
Turbine
Type Water head(m) Discharge (m³/s) Speed (r/min) Power(kw) Efficiency(%)
HL220/
A153-WJ
-50A		 45 1.78 1000 680 86.5
86
85.5		 SFW630-6 DST-3000 Or YDT-3000 Z945T6(10)Dg600
53 1.93 863 SFW800-6
65 2 1090 SFW1000-6
HL220/153-
WJ-60		 30 2.13 750 538 86
87
86		 SFW500-8 DST-3000 PDF6(10)-WDDg1000
35 2.27 678 SFW630-8
42 2.43 870 SFW800-8 YDT-3000
50 2.55 1075 SFW1000-8 YDT-6000
HL220/
A153-
WJ-60A		 58 2.72 1000 1344 87
87.5
86		 SFW1250-6 YDT-3000
YDT-6000		 DF6(10)-WDDg1000
67 2.99 1720 SFW1600-6
76 3.36 2150 SFW2000-6
HL220/
A153-
WJ-71		 33 3 600 860 88.5 SFW800-10 YDT-6000 PDF6(10)-WDDg1250
38 3.32 1075 87 SFW1000-10
44 3.56 750 1344 87.5 SFW1250-8
53 3.72 1720 89 SFW1600-8 YWT-10000
61 4.13 1000 2150 87 SFW2000-8
72 4.43 2688 86 SFW2500-6
HL220/
A153-
WJ-84		 31 3.95 500 1075 89.5
88.5
89.5
86.5
88.5		 SFW1000-12 YDT-600 PDF6(10)-WDDg1250
35 4.43 1344 SFW1250-12
42 4.72 600 1720 SFW1600-10 YWT-10000
50 4.9 2150 SFW2000-10
57 5.56 750 2688 SFW2500-8
66 6.01 3444 SFW3200-8 YWT-18000
76 6.52 4301 SFW4000-8
HL220/
A153-
WJ-100		 33 5.84 428.6 1720 91 SF1600-14 YWT-10000 PDF6(10)-WDDg1500
38 6.41 2150 90 SF2000-14
44 6.88 500 2688 90.5 SF2500-12 YWT-18000
52 7.5 3441 SF3200-12
60 8.12 4301 90 SF4000-10
70 8.65 600 5376 90.5 SF5000-10 YWT-30000
82 9.52 6774 88.5 SF6300-40
HL220/
A153-
LJ-120		 30 8.21 375 2150 89 SF2000-16 YWT-18000 PDF6(10)-WDDg1750
35 8.61 2688 91 SF2500-16
41 9.46 3441 90.5 SF3200-16
48 9.99 428.6 4301 90.5 SF4000-14
56 10.7 5376 SF5000-14 YWT-30000
65 11.61 500 6774 91.5 SF6300-12
76 12.68 8604 91 SF8000-12
HL220/
A153-
LJ-140		 24.3 9.79 250 2140 91.7 SF2000-24 YWT-18000 PDF6(10)-WDDg2000
28.1 10.63 300 2661 90.8 SF2500-20
32.7 11.52 300 3385 91.6 SF3200-20 YWT-30000
38.4 12.35 300 4233 91 SF4000-20
44.2 13.35 375 5268 91 SF5000-16 YWT-3800
51.4 14.33 375 6633 91.8 SF6300-16
60.2 15.56 428.6 8380 91.2 SF8000-14 YWT-5000
69.3 16.73 428.6 10418 91.6 SF10000-14

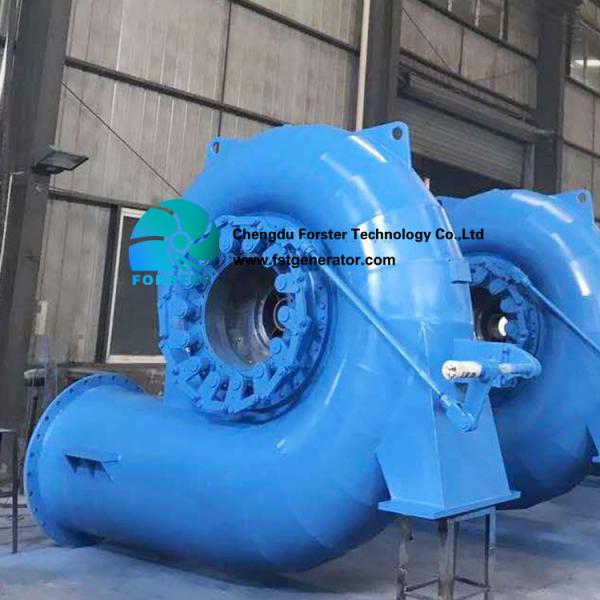

Product pictuers:

High Efficiency 600kw to 10mw High And Low Voltage 380v - 35kv Francis Turbine Generator Unit For HPPHigh Efficiency 600kw to 10mw High And Low Voltage 380v - 35kv Francis Turbine Generator Unit For HPP

Installation design drawings:

High Efficiency 600kw to 10mw High And Low Voltage 380v - 35kv Francis Turbine Generator Unit For HPP

Company Information

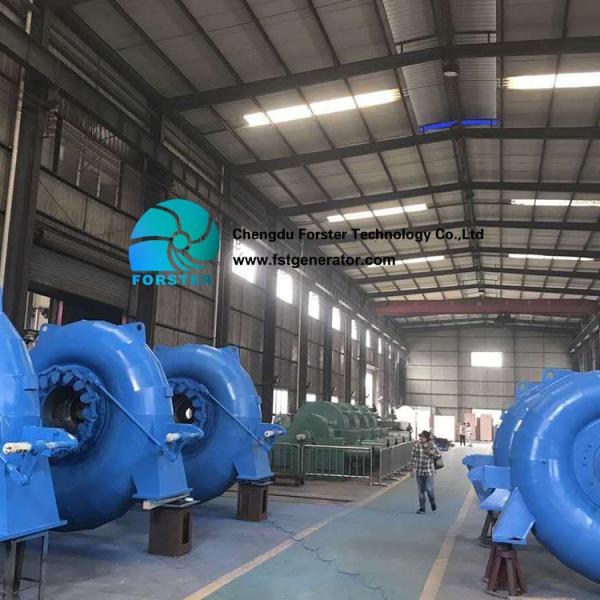

Our Workshop:

Advantages:

Packaging & Shipping

FAQ

Q1, Which turbine should I choose?

Please tell me the water head, flow rate, frequency, Total power you need

, voltage, on grid or off grid operation, we will propose a solution.

Q2, Can your factory provide all the equipment for hydropower generation?

Yes, we can provide you with turbines, hydro-generators, pressure regulators, turbine wheels, control panels, transformers, monitoring systems and more.

Q3, Can you do EPC for a hydroelectric power plant?

Yes, we can provide TURN-KEY and EPC services including measurement, design, manufacturing, construction, manufacturing, commissioning, inspection, maintenance runner replacement and refurbishment/upgrade/improvement/repair/refurbishment of turbines/generators including bearings, seals For parts and key parts, we will send technicians and workers to install equipment.

Q4,Is your company a trading company or a manufacturer?

We are a manufacturer of hydro turbine generators and started to promote the international market in 2013. Our factory is located in Sichuan, where China's water conservancy and hydropower is most developed. Welcome to visit our factory in China.

Q5, What is an acceptable MOQ?

For this product, our acceptable MOQ is 1 set.

Q6,How long is the delivery time?

Delivery times range from 15 days to 6 months depending on the model you are purchasing.

Q7,Does your company have its own independent official website?

Of course, and we can see more information about our company and products on our official website.

website:www.fstgenerator.com
