Experienced In Hydropower Station Installation And Commissioning Experience Of Suppliers Micro Hydroelectric Generator

Our main products included:

1. Kaplan turbine generators series.

2. Turgo turbine generators series.

3. Tubular turbine generators series.

4. Francis turbine generators series.

5. Pelton turbine generators series.

Product features :

The Francis turbine generator, also known as the Francis turbine, flows into the runner from the radial direction and flows out substantially in the axial direction. Francis turbines have a wide range of water heads, simple structure, reliable operation and high efficiency. It is one of the widest hydraulic turbines in modern applications. The flow of water through the runner is radial, the derivation mechanism is radial, and the opening of the vane can be adjusted with the change of load. The runner is composed of the upper crown, the lower ring and a certain number of streamlines fixed between them. Made up of blades.

Francis turbine generator range

The Francis turbine generator is used for large and medium-sized hydropower stations with a water head of 30 to 700 m, while the medium and small Francis turbines can be used for hydropower stations with a water head of 20 to 400 m to drive the hydroelectric generator to rotate and generate electric energy.

Mixed flow hydroelectric generator features

1. Suitable for low head and large flow;

2. Pressure inlet, pressure outlet; pipeline water, pipeline water.

3. The turbine is separated from the generator for easy maintenance and replacement of wearing parts.

4. The turbine has 3 separate bearings and 2 generators for more reliable structure.

5. The turbine bearing has an independent oil lubrication system, and the bearing life is longer.

6. Brushless excitation generator, no need to replace the carbon brush, maintenance is more convenient.

Product parameters:

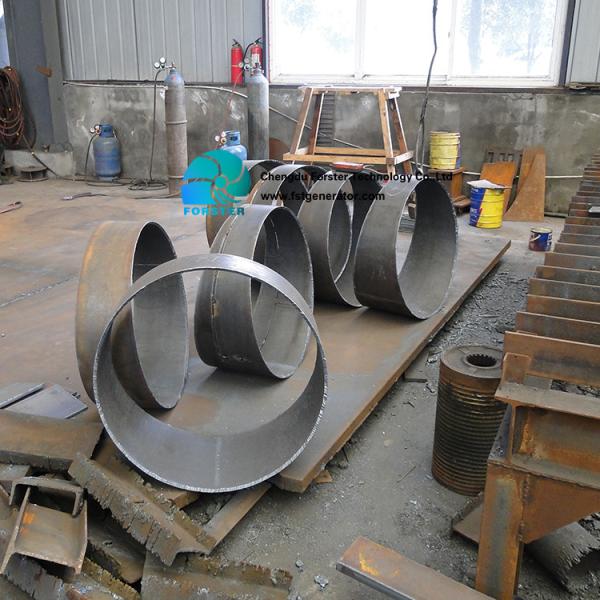

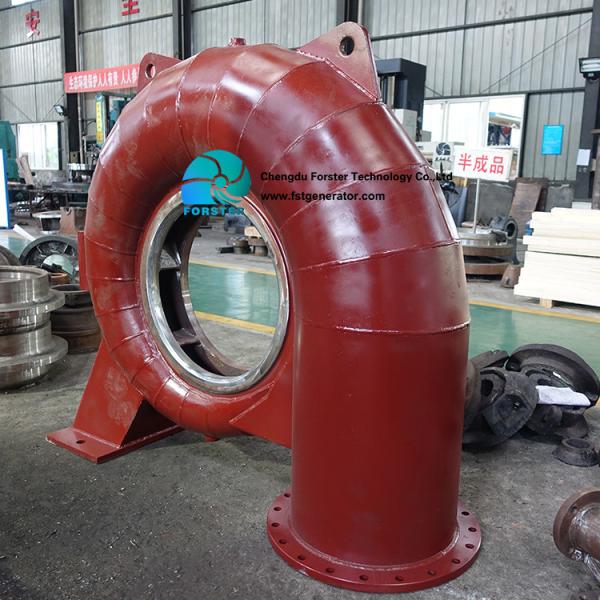

Product pictuers:

Installation design drawings:
