High Voltage 400v / 35kv Reversible Francis Turbine , Low Head Hydro Generator
High Voltage 400v / 35kv Reversible Francis Turbine , Low Head Hydro Generator
High Voltage 400v / 35kv Reversible Francis Turbine , Low Head Hydro Generator
High Voltage 400v / 35kv Reversible Francis Turbine , Low Head Hydro Generator
Specifications
Brand Name :
Forster
Model Number :
HL260C-LJ-140
Certification :
CE/TUV/ISO9001
Place of Origin :
Sichuan, China (Mainland)
MOQ :
1 Set/Sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50 Set/Sets per Month
Delivery Time :
180days
Packaging Details :
wood box
Governor: :
High Hydraulic Microcomputer Governor
Control system :
Automation Control System
Valve :
Butterfly valve / gate valve
Voltage :
380v,400v,6300v,11kv,20kv,35kv
Design head :
12m-40m
Design flow :
12.2-39m3/s
Pipe diameter :
DN800-2250mm
Generator :
3-phase alternator
Processing method :
CNC machining / constant temperature annealing
Description

Black - Excited Automatic Switch Machine Unattended Francis Turbine Generator For HPP

Our main products included:

1. Kaplan turbine generators series.

2. Turgo turbine generators series.

3. Tubular turbine generators series.

4. Francis turbine generators series.

5. Pelton turbine generators series.

Product features :

Francis turbine is a kind of counterattack turbine. It was also called by American Engineer Francis in 1849. It is also called Francis turbine, or radial axial flow turbine.

The runner flows composed into the runner from all around, and then out of the runner annual axial. The runner is composed of the upper crown, the lower ring and the blade.

Francis turbine is widely used in water head (about 20-700m), simple structure, stable operation and high efficiency, is the most widely used modern turbine.

The Francis turbine generator is also the best selling product of our Forster Technology Co., Ltd

1. Suitable for low head and large flow;

2. Pressure inlet, pressure outlet; pipeline water, pipeline water.

3. The turbine is separated from the generator for easy maintenance and replacement of wearing parts.

4. The turbine has 3 separate bearings and 2 generators for more reliable structure.

5. The turbine bearing has an independent oil lubrication system, and the bearing life is longer.

6. Brushless excitation generator, no need to replace the carbon brush, maintenance is more convenient.

Product parameters:

HL-WJ-Francis tubine generator unit Generator Gevernor or Regulating work Valve
Turbine
Type Water head(m) Discharge (m³/s) Speed (r/min) Power(kw) Efficiency(%)
HL260 C-LJ-140 12.2 10.25 214.3 1089 88.8 SF1000-28/2600 YWT-18000 Z941H-6 Dg2250
14.1 11.02 1340 88.2 SF1250-28/2600
16.6 11.97 250 1720 88.6 SF1600-24/2600
19.2 12.87 2156 88.7 SF2000-24/2600
22.3 13.89 300 2678 88.3 SF2500-20/2600 YWT-30000
26.2 15.05 3405 88.5 SF3200-20/2600
30.4 16.21 333.3 4255 88.4 SF4000-18/3250
HL260 C-LJ-160 11.8 13.17 200 1340 89 SF1250-30/2600 YWT-30000 PDF6-WD Dg2500
13.9 14.32 214.3 1720 88.9 SF1600-28/2600
16.2 15.43 2160 88.6 SF2000-28/3250
18.7 16.63 250 2680 27.2 SF2500-24/3250
22 18 3410 88.7 SF3200-24/3250 YWT-38000
25.5 19.6 4260 88.9 SF4000-20/3250
29.6 20.9 300 5340 88.9 SF5000-20/3250
HL260 C-LJ-180 11.9 16.76 187.5 1720 89.5 SF1600-32/2600 YWT-38000 PDF6-WD Dg2750
13.7 18 2160 89.7 SF2000-32/3250
15.9 19.38 2680 89.4 SF2500-32/3250
18.8 21.08 200 3420 89.7 SF3200-30/3250
21.7 22.66 4260 89.6 SF4000-30/3250 YWT-50000
25.2 24.41 5340 89.3 SF5000-24/3250
29.4 26.37 250 6705 89.6 SF6300-24/4250

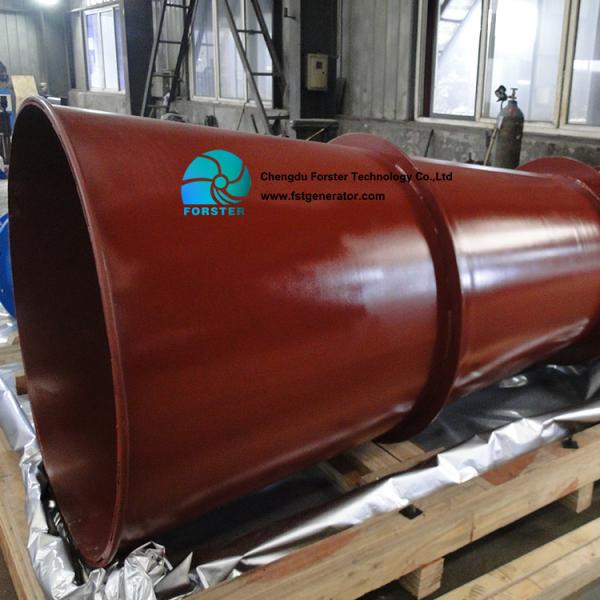

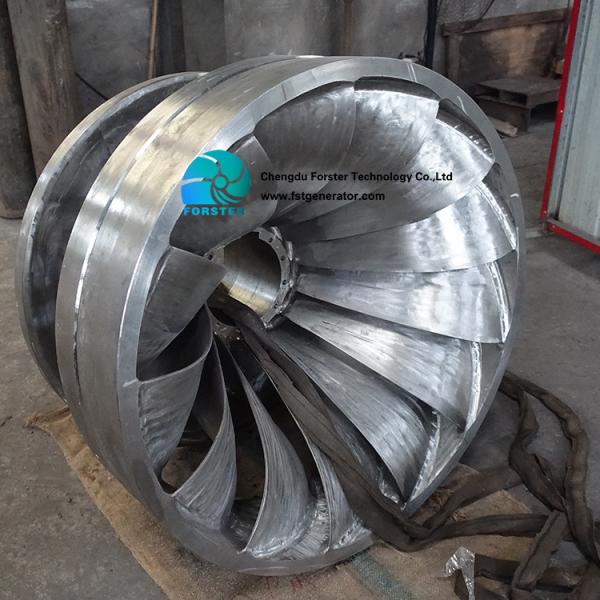

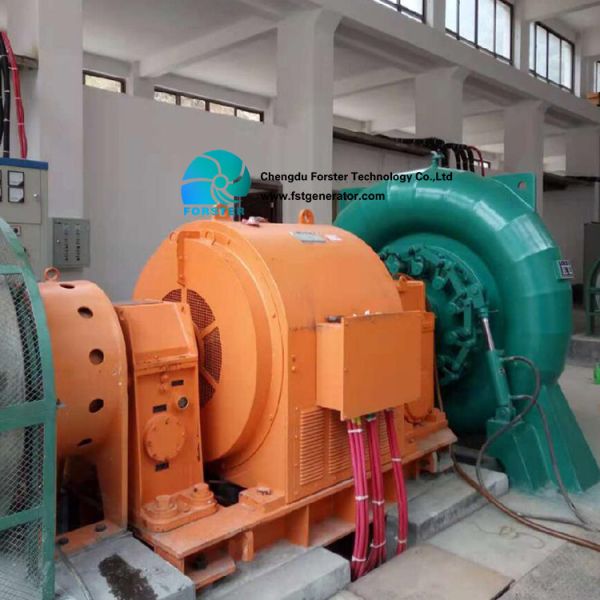

Product pictuers:

High Voltage 400v / 35kv Reversible Francis Turbine , Low Head Hydro GeneratorHigh Voltage 400v / 35kv Reversible Francis Turbine , Low Head Hydro Generator

Installation design drawings:

High Voltage 400v / 35kv Reversible Francis Turbine , Low Head Hydro Generator

Company Information

Our Workshop:

Advantages:

Packaging & Shipping

FAQ

Q1, Which turbine should I choose?

Please tell me the water head, flow rate, frequency, Total power you need

, voltage, on grid or off grid operation, we will propose a solution.

Q2, Can your factory provide all the equipment for hydropower generation?

Yes, we can provide you with turbines, hydro-generators, pressure regulators, turbine wheels, control panels, transformers, monitoring systems and more.

Q3, Can you do EPC for a hydroelectric power plant?

Yes, we can provide TURN-KEY and EPC services including measurement, design, manufacturing, construction, manufacturing, commissioning, inspection, maintenance runner replacement and refurbishment/upgrade/improvement/repair/refurbishment of turbines/generators including bearings, seals For parts and key parts, we will send technicians and workers to install equipment.

Q4,Is your company a trading company or a manufacturer?

We are a manufacturer of hydro turbine generators and started to promote the international market in 2013. Our factory is located in Sichuan, where China's water conservancy and hydropower is most developed. Welcome to visit our factory in China.

Q5, What is an acceptable MOQ?

For this product, our acceptable MOQ is 1 set.

Q6,How long is the delivery time?

Delivery times range from 15 days to 6 months depending on the model you are purchasing.

Q7,Does your company have its own independent official website?

Of course, and we can see more information about our company and products on our official website.

website:www.fstgenerator.com
